268
Z
N°
MOD
AUX
1
AUX
3
2
2
6
1
3479/F481
Z
N°
MOD
AUX
1
AUX
3
2
2
6
1
HD4607
HS4607
L4607
N4607
NT4607
AM5787
HC4607
573949
067508
573948
Conguration
AUTOMATION mode – AUXILIARY CONTROL:
This mode can be obtained by connecting the AUX congurator to MOD. This will generate
a 1 sec. ON/OFF control on the assigned auxiliary channel. The dierence when compared
with the auxiliary function generated with the reader connected to the burglar-alarm
system (MOD=1) is that in this case the codes of the transponders are saved in the reader
itself, with the possibility of managing 120 badges at the same time.
Z
It assigns the no. of the zone it belongs to, form 0 to 9.
N°
It assigns the progressive no. inside the zone.
MOD
It assigns the operating mode. For the auxiliary functions connect the AUX congurator.
AUX
It assigns the auxiliary channel.
Example: when congured in this way, as auxiliary device no. 1 (N=1) in zone 3 (Z=3),
the control sends an ON/OFF command on auxiliary channel 2 (AUX=2) intended for the
relay actuator item HC/HD/HS/L/N/NT4614 congured with AUX = 2.

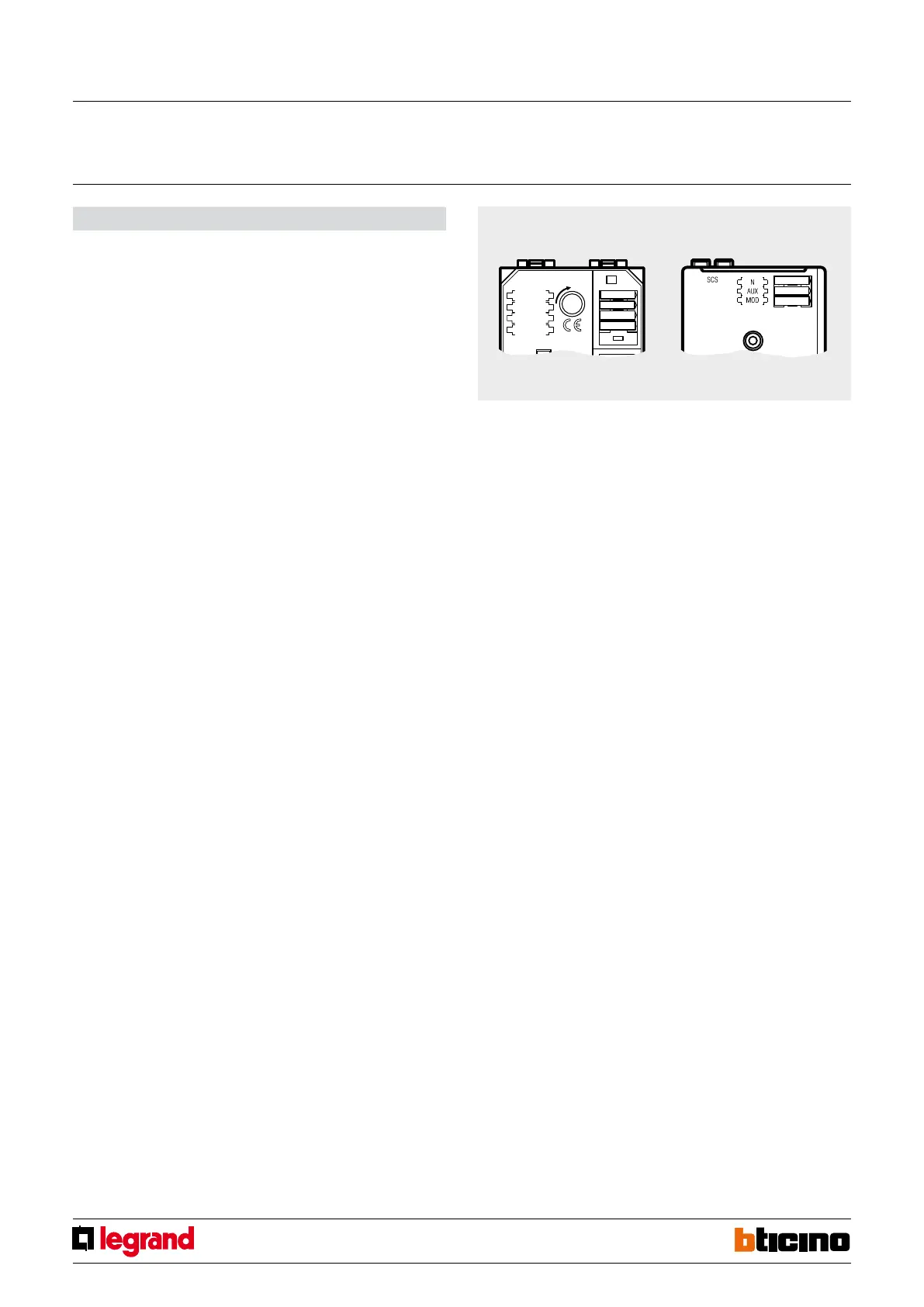

Transponder reader Relay actuator
Transponder reader
