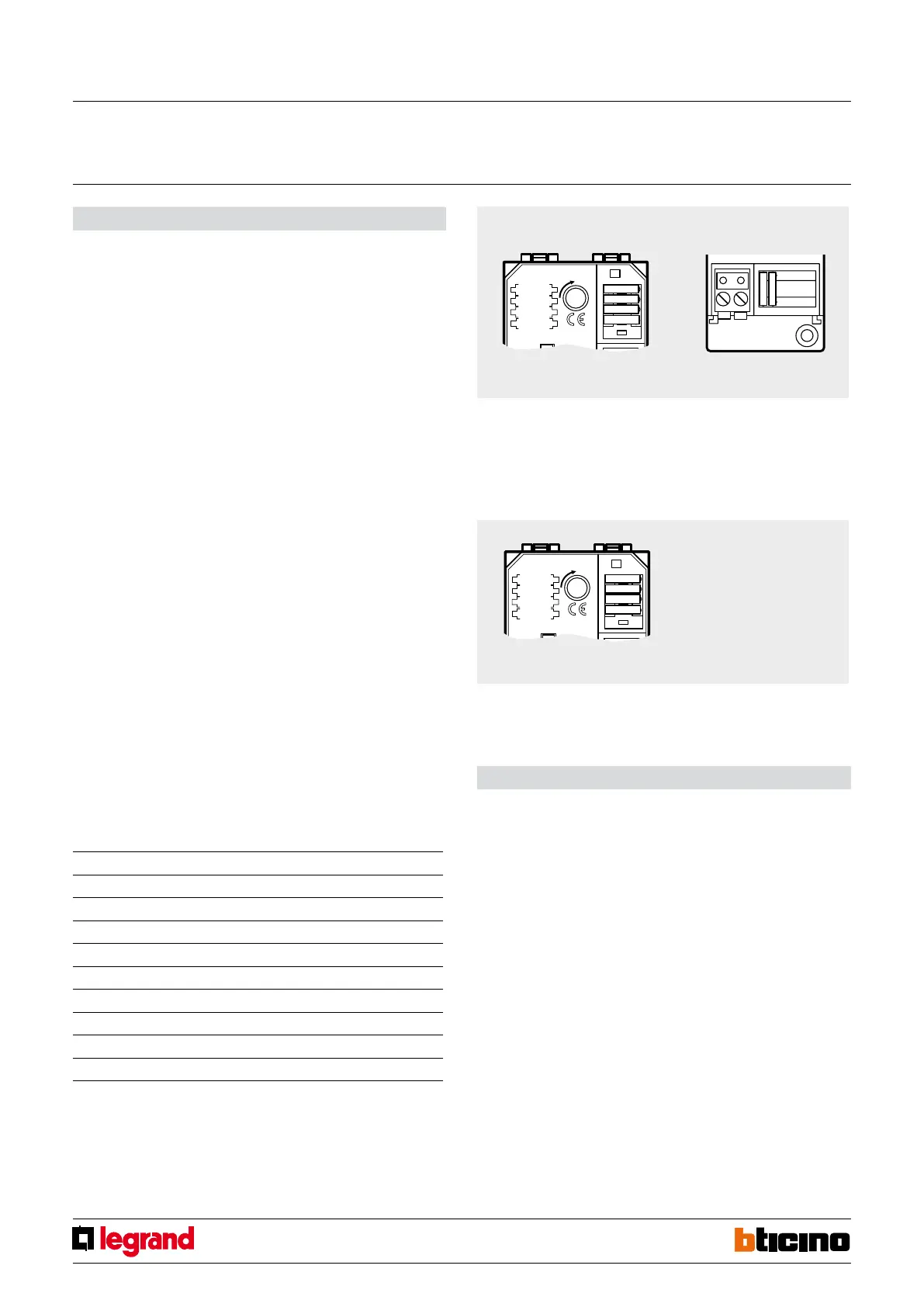

267
F420
3
2
Z
N°
MOD
AUX
2
2
3
4
=
1
02'
$8;




HD4607
HS4607
L4607
N4607
NT4607
AM5787
HC4607
573949
067508
573948
Conguration
AUTOMATION mode – SCENARIO MANAGEMENT:
Z
It coincides with the room of the scenario module item F420 where the actuation is
performed – from 0 to 9 – (reference socket A on the scenario module).
N°
It coincides with the PL position (congurator from 1 to 9) of the scenario module.
MOD
Assigns the operating mode. For the automation functions connect congurator 2.
AUX
It assigns the correspondence between the required scenario and the scenario module.
The congurators that can be used are those between 1 and 9 and coincide with the
corresponding scenario of the scenario module, item F420.
SLAVE control
It enables reproducing an enabled control on a “Master” transponder reader. The
transponder keys used must only be saved in the “Master” device.
Z
It coincides with the Z congurator of the master device.
N°
It coincides with the N° congurator of the master device.
MOD
Assigns the operating mode. To obtain SLAVE devices connect the SLA congurator.
AUX
It coincides with the AUX congurator of the master device.
AUTOMATION mode – TIMED CONTROL:
It enables the actuation of an ON timed control
Z
This congurator coincides with A (room) of the automation system (it assigns the
homogeneous room where the actuation is performed – from 1 to 9).
N°
It coincides with the PL of the automation system (it assigns the point where the
actuation must be performed – from 1 to 9).
MOD
It assigns the operating mode. To obtain an ON timed control connect congurator 6.
AUX
It assigns the duration of the time delay based on the value of the congurator used, as
shown in the following table.
Example: congured in this way the control activates scenario no. 4 of the scenario
module item F420 with address A=3, PL=2.
Transponder reader Scenario module
Aux Time
0
1 1 min.
2 2 min.
3 3 min.
4 4 min.
5 5 min.
6 15 min.
7 30 sec.
8 0.5 sec.
9 (not used) - - -
Transponder reader
Example: congured in this way, the transponder reader sends to an actuator with
address A = 1 and PL = 3 an ON control with a delay of 5 minutes (e.g. switching on a
service light).
Transponder reader
MQ00033-c-EN 24/04/2014
