307
N
L
1
2
5
34
C1 C2 C3 C4
1
23
4 5
C1
C2
C3
C4
4
BUS
1
3
5
2
9
6
8
7
F430/4
congurator
socket RL1
ZA
ZB1
common
C1 contact RL1
congurator
socket RL2
ZA
ZB2 C2 contact RL2
congurator
socekt RL3
ZA
ZB3 C3 contact RL3
congurator
socket RL4
ZA
ZB4 C4 contact RL4
The ventilation speed is selected automatically by the temperature control function
based on the dierence between the user set temperature and the room temperature.
This actuator cannot be used to control the system circulation pump (congurator in
zone 00), and to control separate loads belonging to the same zone.
Congurator summary table:
Socket Function Congurator
ZA zone address 0 – 9
ZB1
zone address - ON/OFF contact management - Open/Close contact management - Fan-Coil management - OFF zone 0 – 9 – OFF
ZB2
zone address - ON/OFF contact management - Open/Close contact management - Fan-Coil management - OFF zone 0 – 9 – OFF
ZB3
zone address - ON/OFF contact management - Open/Close contact management - Fan-Coil management - OFF zone 0 – 9 – OFF
ZB4
zone address - ON/OFF contact management - Open/Close contact management - Fan-Coil management - OFF zone 0 – 9 – OFF
N progressive zone number 1 – 9

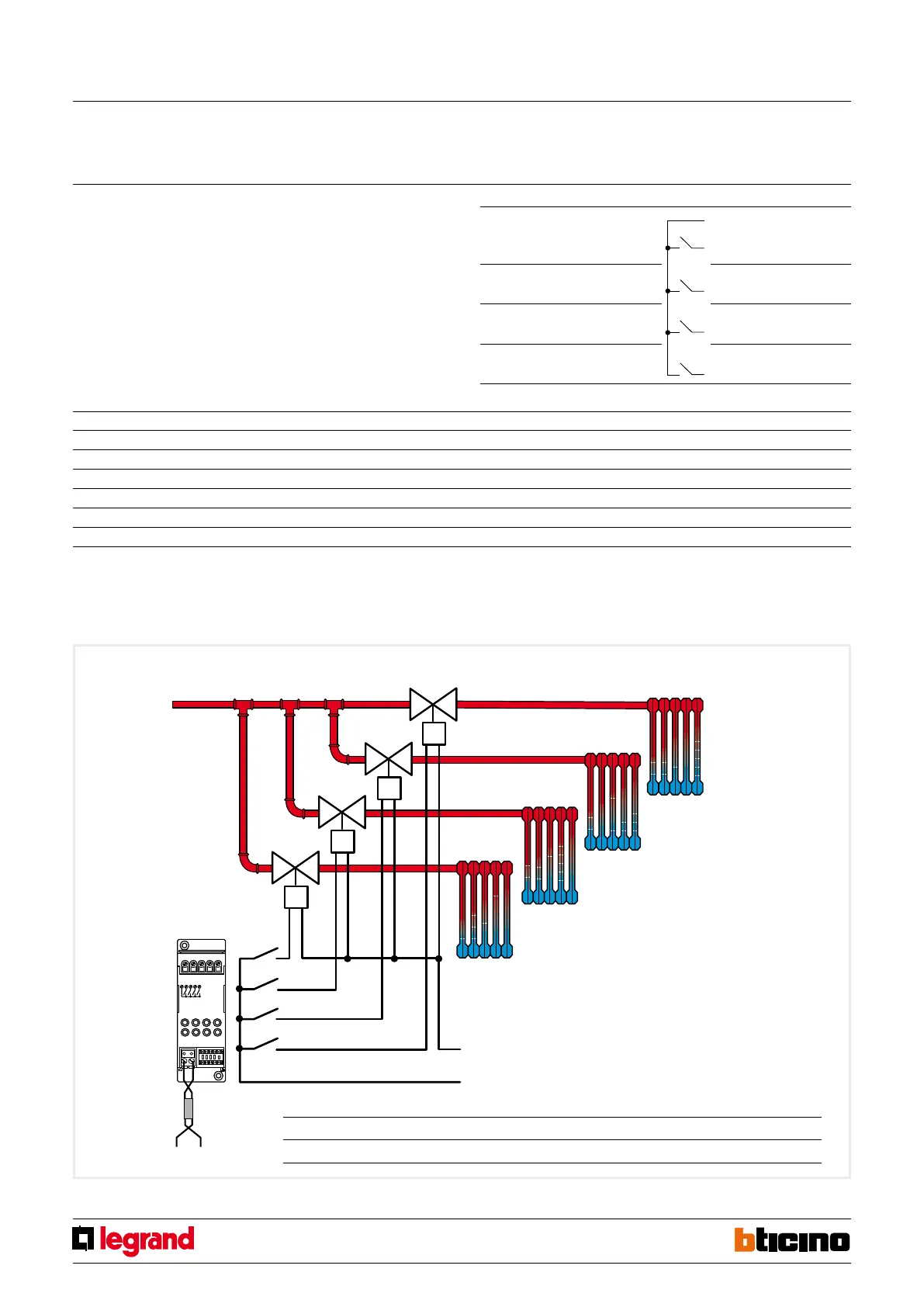

Example 1
Conguration and connection of the 4-relay actuator, for the control of four solenoid valves (ON/OFF type) in four dierent zones (zone 11, zone 12, zone 15 and zone 18).
The progressive zone number is 1.
Legend
1. actuator
2. zone 11 solenoid valve
3. zone 12 solenoid valve
4. zone 15 solenoid valve
5. zone 18 solenoid valve
6. zone 11 radiator
7. zone 12 radiator
8. zone 15 radiator
9. zone 18 radiator
Actuator conguration
ZA ZB1 ZB2 ZB3 ZB4 N RL1/C1 RL2/C2 RL3/C3 RL4/C4
1 1 2 5 8 1 ON/OFF ON/OFF ON/OFF ON/OFF
1
2
3
4
5
Actuator 4 relays
MQ00185-c-EN 29/04/2014
