F430V10
MM00780-a-
2 1
4
3
5 6
Legend
1. Configurator socket
2. BUS
3. LED
4. Pushbuttons
5. Valve 1 output
6. Valve 2 output

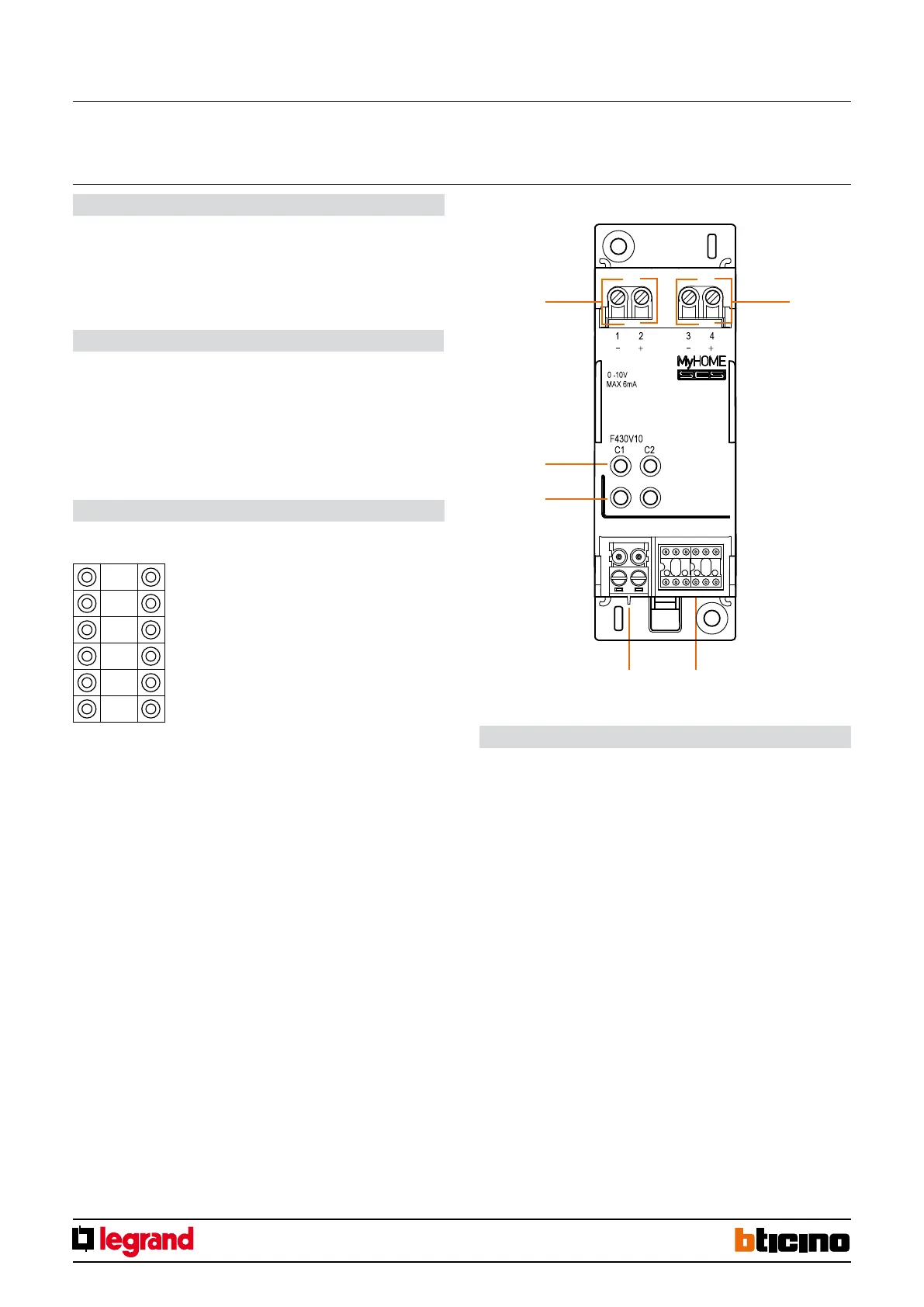

DIN module actuator for the control of 0-10 V valves in temperature control systems
It has two 0-10 V outputs, two control pushbuttons for manual opening/closing of
each valve and the corresponding status LEDs.
Description
Actuator for 0-10 V valves
EN
Power supply from SCS BUS: 18 – 27 Vdc
Stand by absorption: 19 mA
Max. absorption: 25 mA
Operating temperature: (+5) – (+40) °C
Outputs: 2 x 0 – 10 V
Maximum current on each output: 1 mA
Technical data
Configuration
ZA1
ZB1
N1
ZA2
ZB2
N2
Physical configuration.
Virtual configuration using the MyHOME_Suite software:
The device can be configured remotely only if not already physically configured. The
configuration is completed using version 1.3 or higher of the MyHOME_Suite software,
which can be downloaded from the website www.homesystems-legrandgroup.com.
ZA1, ZB1 = Zone address 1
N1 = Progressive zone number for output 1
ZA2, ZB2 = Zone address 2
N2 = Progressive zone number for output 2
