Wiring diagrams

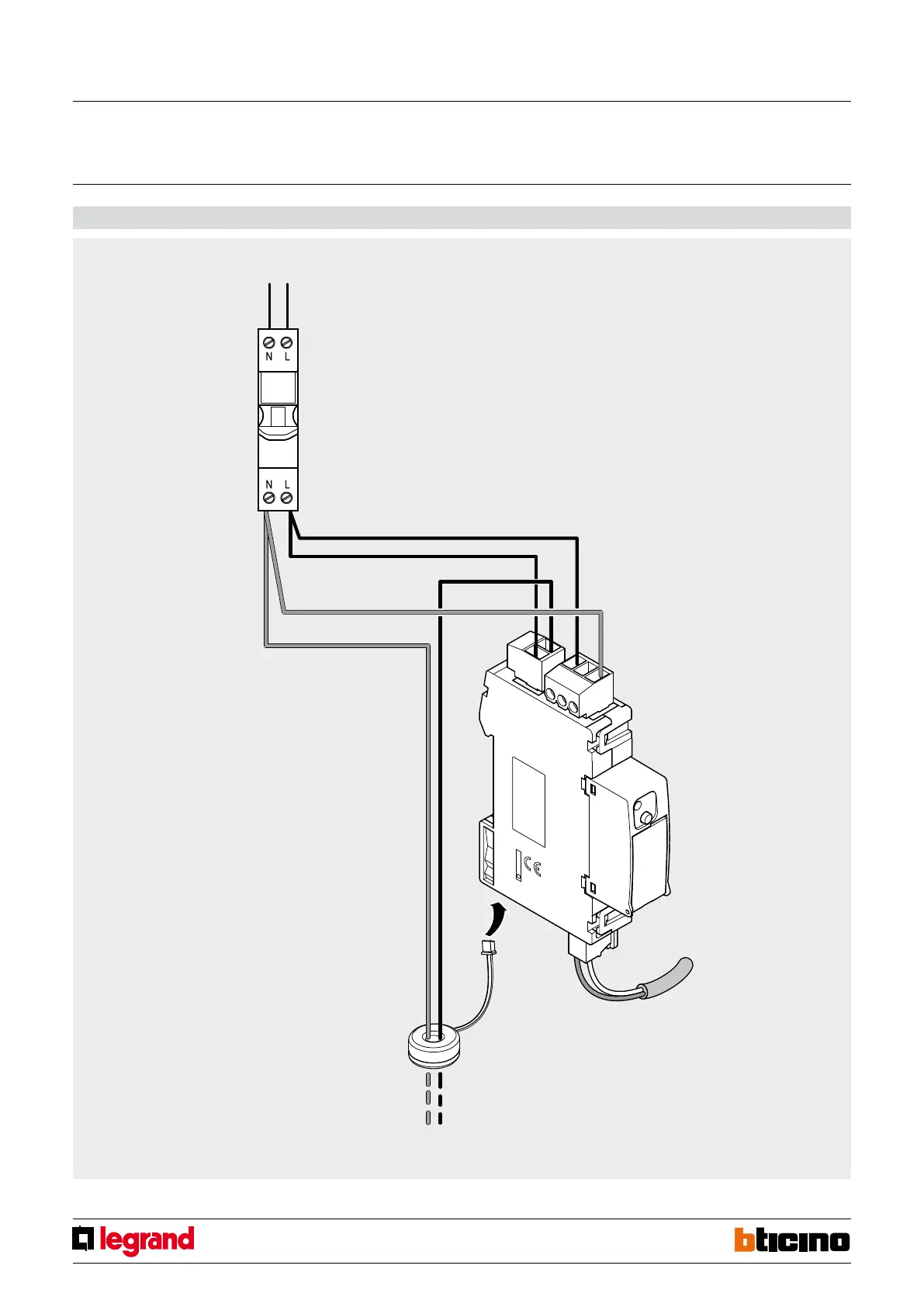

Actuator connection:
LOAD
230 Vac
3523 (optional)
WARNING: Cables carrying high currents installed
vertically near the actuator (< 5 cm) may cause false
measurements of the integrated current sensor. In this
case move the cables away and keep the phase and
the neutral coupled.
Actuator 16A with current sensor
