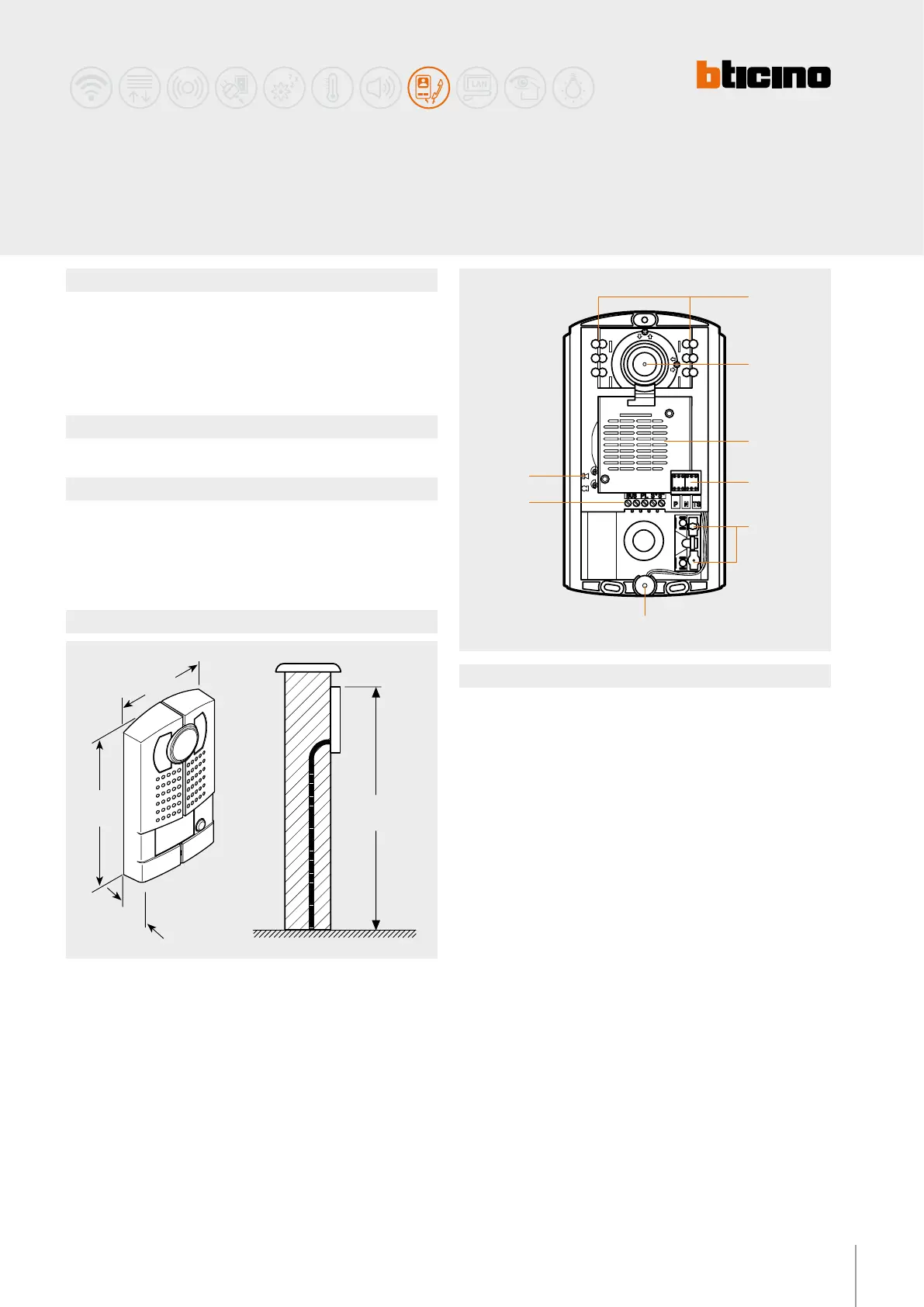

Dimensional data
Description
Wall mounted 2-wire pushbutton panel with Zamak front cover, colour camera, and
night viewing white LED light. One and two-family version available.
The camera can be swivelled by +/-15°, both horizontally and vertically.
It provides the possibility of opening an electrical door lock connected directly to clamps
S+ and S- (18 V 4 A impulsive, 250 mA holding current). Blue LED backlit name plate
Technical data
Power supply from SCS BUS: 18 - 27 Vdc
Stand by absorption: 20 mA
Max. operating absorption: 240 mA
Operating temperature: (-25) - (+70)°C
PI against mechanical impact: IK07
Legend
1 - White LEDs for night lighting
2 - Colour camera with camera slant adjustment horizontally and vertically by ±15°
3 - Loudspeaker
4 - Congurator socket
5 - Call keys
6 - Microphone
7 - Clamps for BUS and door lock connection: the module allows to control an electric
door lock directly connected to the clamps S+ S- (18 V 4 A impulsive - 250 mA
holding current 30 Ohm max)
8 - Microphone and loudspeaker volume adjustment
Wall mounted
LINEA 2000 METAL entrance panel
