TECHNICAL SHEETS

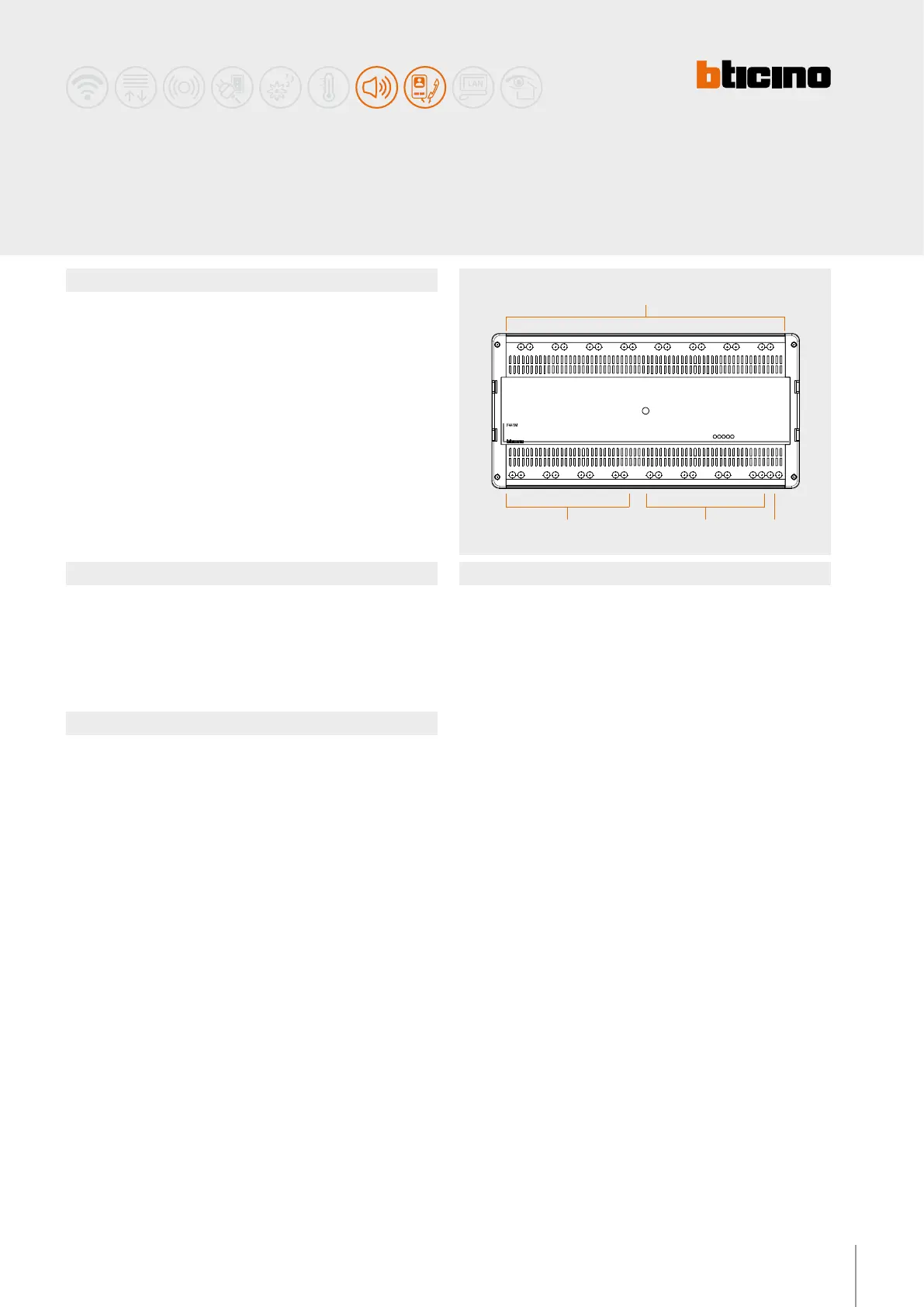

Dimensional data
Legend
Description
The multi-channel matrix is a device which can distribute up to 4 stereo sound sources
and a video signal from entrance panels or cameras simultaneously.
The matrix is made up of 8 inputs and 8 outputs (to wire 8 rooms).
Video entrance panels and cameras (rst 4 inputs) and stereo sound sources (last 4
inputs) can be wired in input.
On each output of the matrix there is a clearly separate room.
The rooms must be set in ascending order (room 1 - OUT, room 2 - OUT 2 etc.).
The stereo signals are distributed at the same time and independently on any output.
However, it is not possible for the audio signals of two separate sound sources to be
mixed on the same output branch.
The stereo signal of a sound sources and the video signal of one of the 2-wire video
door entry sources can travel at the same time on the same branch (entrance panel or
camera).
The device must not be congured.
Technical data
Power supply from SCS BUS: 18 - 27 Vdc
Absorption da BUS: 46 - 60 mA
Dissipated power: 1.5 W
Operating temperature: 5 – 45 °C
Number of inputs available: 8
Number of outputs available: 8
Multi-channel matrix
1 - Clamps for the connection of the amplier and the video door entry system handsets.
2 - Clamps for the connection of the SCS BUS
3 - Clamps for the connection of the input sound sources (S1-S2-S3-S4)
4 - Clamps for the connection of the 2-wire cameras / entrance panels (TK1-TK2-TK3-TK4)
10 DIN modules
