448
F441
1
4 3
2
BT00674-a-EN
TECHNICAL SHEETS

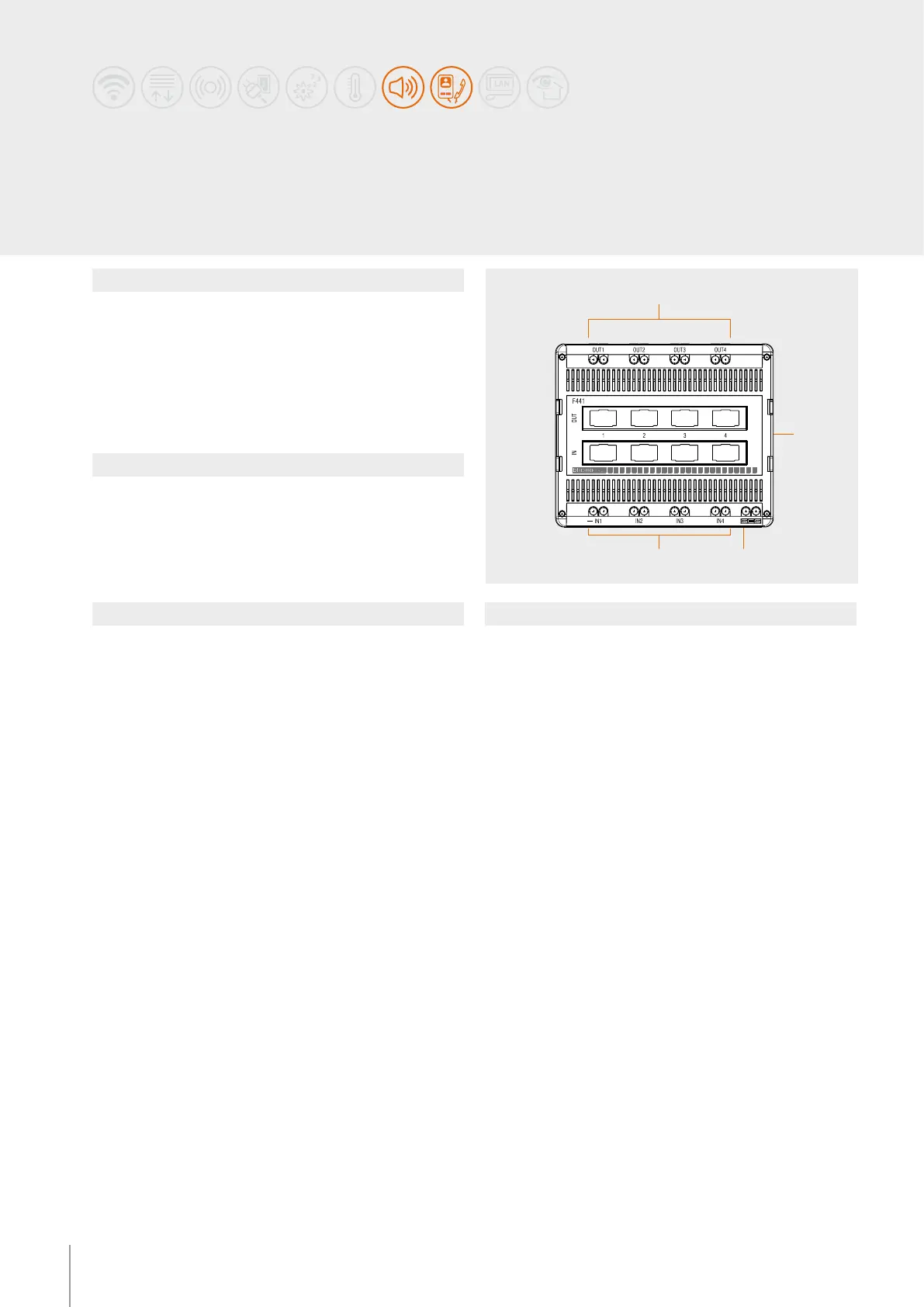

Dimensional data Legend
Description
The audio/video node is a mixer device enabling distribution of up to 4 sound sources or
2-wire audio/video risers.
The 4 outputs will all have the same signal coming from the input selected among the
4 available.
The device must not be congured.
WARNING : Connections using both screw clamps and patch cords at the same
time are NOT possible.
Technical data
Power supply from SCS BUS: 18 - 27 Vdc
Absorption from BUS: 20 mA
Dissipated power: 0.5 W
Operating temperature: 5 – 40 °C
Number of inputs available: 4
Number of outputs available: 4
Audio/video node
1 - Output clamps (OUT1 - OUT2 - OUT3 - OUT4) for the connection of 2-wire video risers
or ampliers
2 - Sockets for patch cord connection
3 - Clamps for the connection of the SCS BUS
4 - Input clamps (IN1 - IN2 - IN3 - IN4) for the connection of sound sources or entrance
panels / cameras
6 DIN modules
