F551
Description
Device use for distributing the data network to several points of the home.
It has 5 RJ45 ports (1 input and 4 outputs) and supports 10/100 Mbit/s Ethernet
connections, automatically adapting to the maximum speed supported by the network
terminals connected to each port. Should It be necessary to extend the home data
network to more than 4 terminals, a port may be connected to a second switch.
For the connection use patch cords L4665L20 and L4665L40.
Legend
1. RJ45 output ports
2. Orange LED: - OFF: speed 10Mbit/s
- ON: speed 100Mbit/s
3. Green LED: - flashing: data transmission
- ON: device active
4. Electric power supply connector (F552)
5. RJ45 input port
Technical data
Power supply voltage: 9 Vdc
Absorption: 220 mA
Transmission speed: 10/100 Mbit/s
Operating temperature: 5 – 40 °C
Related items
Power supply F552

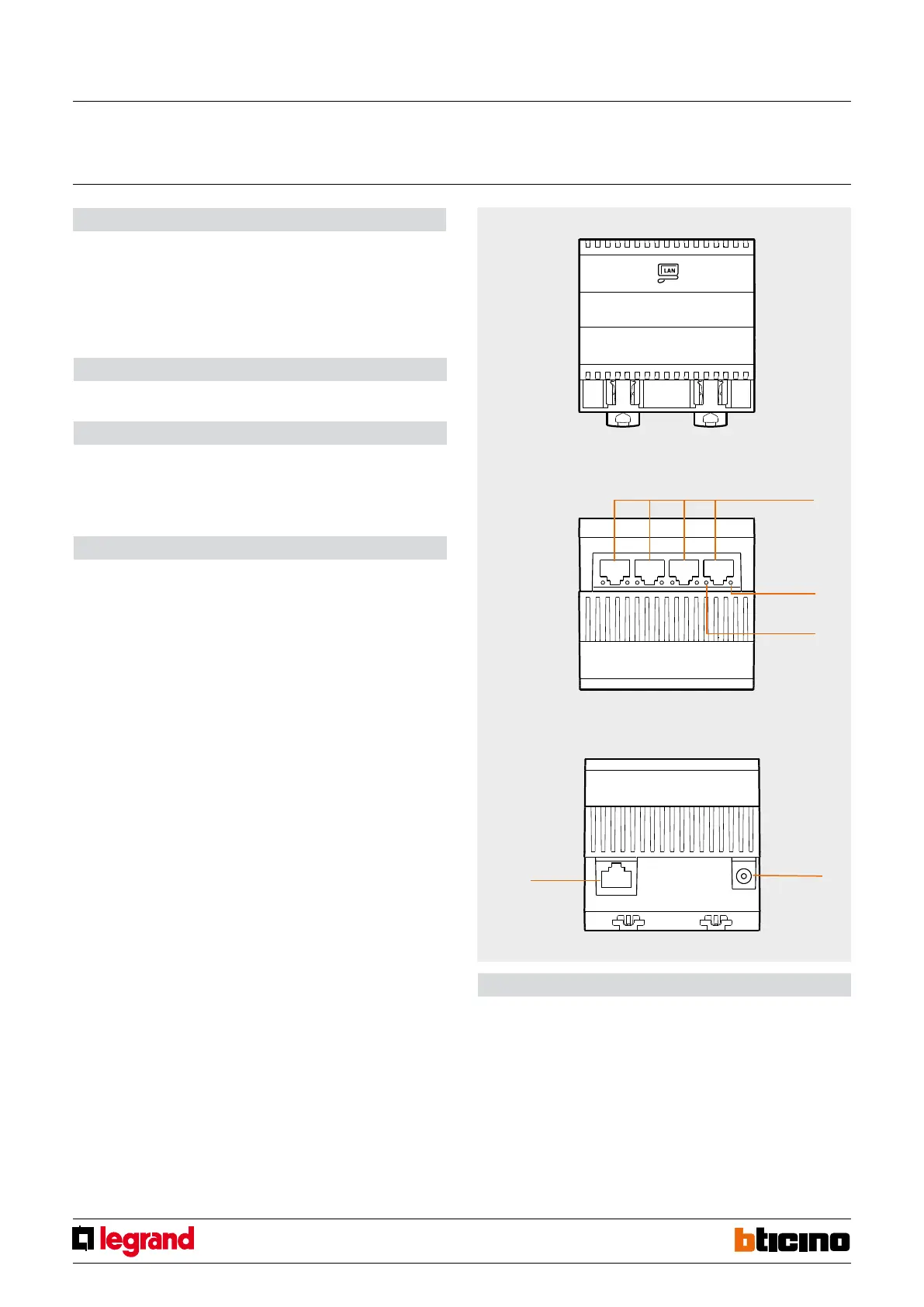

Dimensional data
4 DIN modules
Front view
Side view
Bottom view
5 port switch
