F552
Description
DIN modularity device for providing power supply to the Switch, item F551.

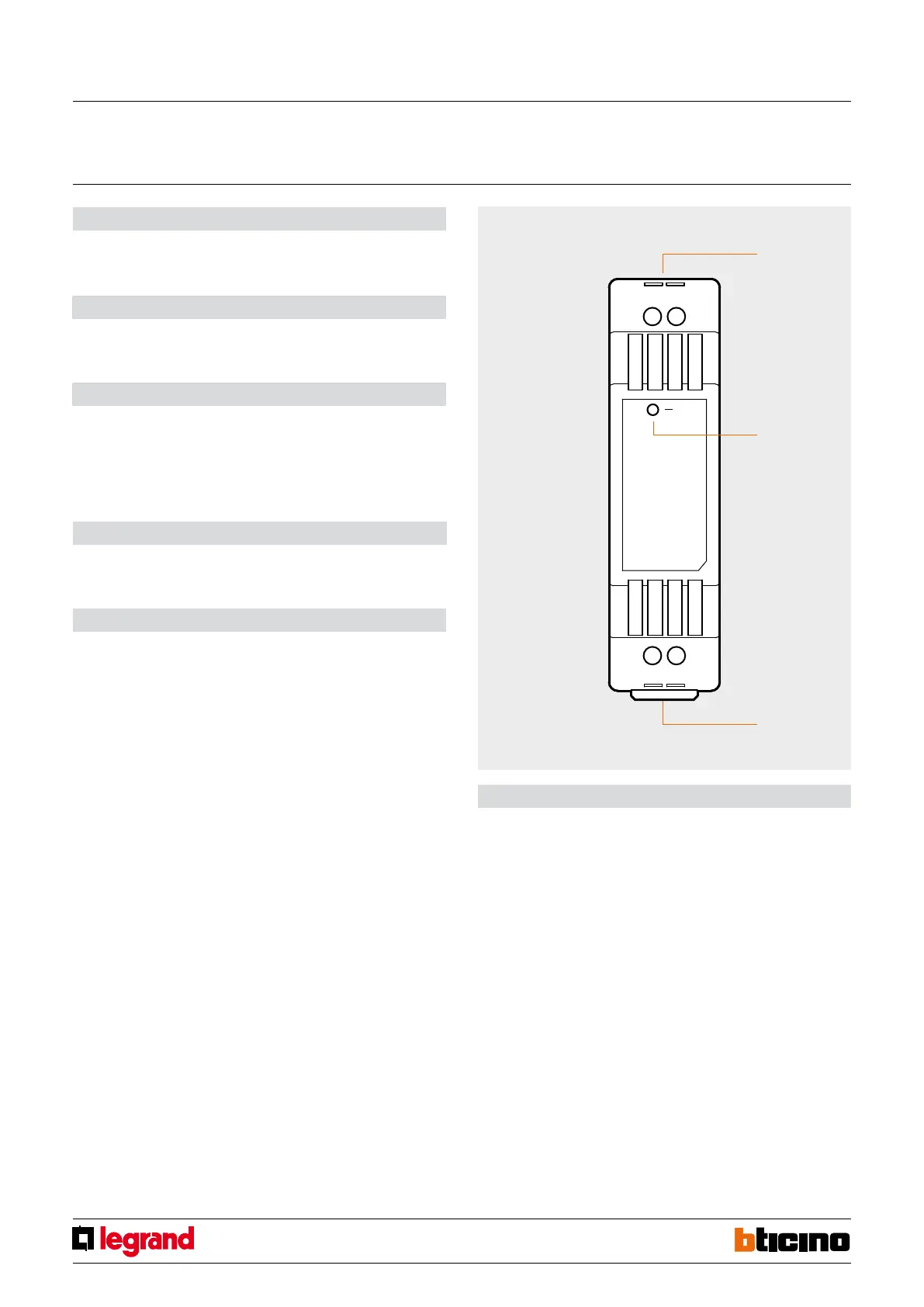

Legend
1. Clamps for the connection of the device power supply
2. 230 V network present LED
3. Power line voltage connection clamps
Technical data
Power supply voltage: 115 - 230 Vac 50 - 60 Hz
Output voltage: 9 Vdc
Maximum current delivered: 1.6 A
Operating temperature: 5 – 40 °C
Related items
Switch F551
Fitting and installation
The installation must be performed in accordance with current local regulations.
In general, the following requirements must be met:
- The device must be installed inside appropriate containers;
- It must not be exposed to water drips or sprays;
- Do not obstruct the air vents;
- In order to ensure overload and direct contact protection, it must be powered using a
two-pole circuit breaker with contact separation of at least 3 mm, located nearby the
device.
Dimensional data
1.5 DIN modules
Power supply
MQ00323-b-EN 22/04/2014
