F450
Description
OPEN-BACnet gateway for control via MyHome Touch Screen of Air Conditioning, Fan
Coils, Air Treatment Units (ATU), VAV and underfloor heating via BACnet protocol.
Technical data
Power supply via SCS BUS: 18 – 27 Vdc
Current draw: 55 mA max
Operating temperature: 5 – 45°C
Dimensions
6 DIN modules

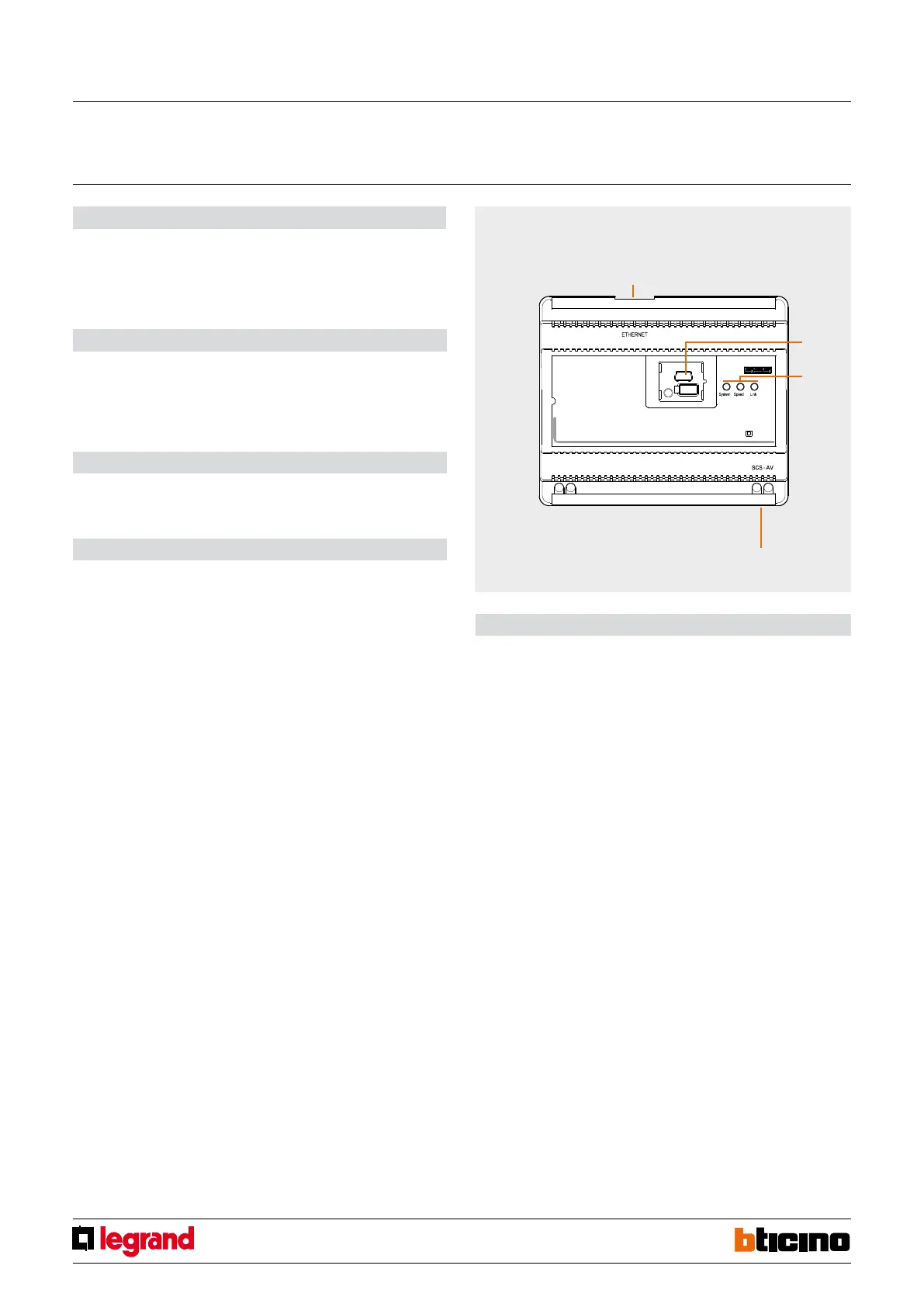

Front view
Legend
1. RJ 45 for 10/100 Mbit Ethernet LAN
2. USB port for configuration via PC and firmware upgrading
3. User interface:
- System: When the power supply is connected, it comes on, goes off, and then
comes on again, to indicate that the gateway is working
- Speed: Connection Speed: on = 100 Mbit; off = 10 Mbit - Link: ON it indicates the
presence of the Ethernet network
4. 2-wire BUS for connecting to the BUS
Configuration
The device is configured with the TiOpenBacnet software package thanks to a LAN
connection (with crossed cable if the connection between the PC and the gateway is di-
rect without using
a HUB/SWITCH) or via a generic cable with USB and mini USB connectors.
OPEN-BACNET Gateway
MQ01008-a-EN 07/06/2014
