F454
SCS AI SCS AV
ETHERNET
1
4
2 3
5
493
Description
Audio/Video Web Server for local and remote control of MY HOME applications using
dedicated web pages.
The Web Server can also be used as a gateway for the management of the system using
devices like PCs and Smartphones, and for virtual configuration, using a dedicated
software.

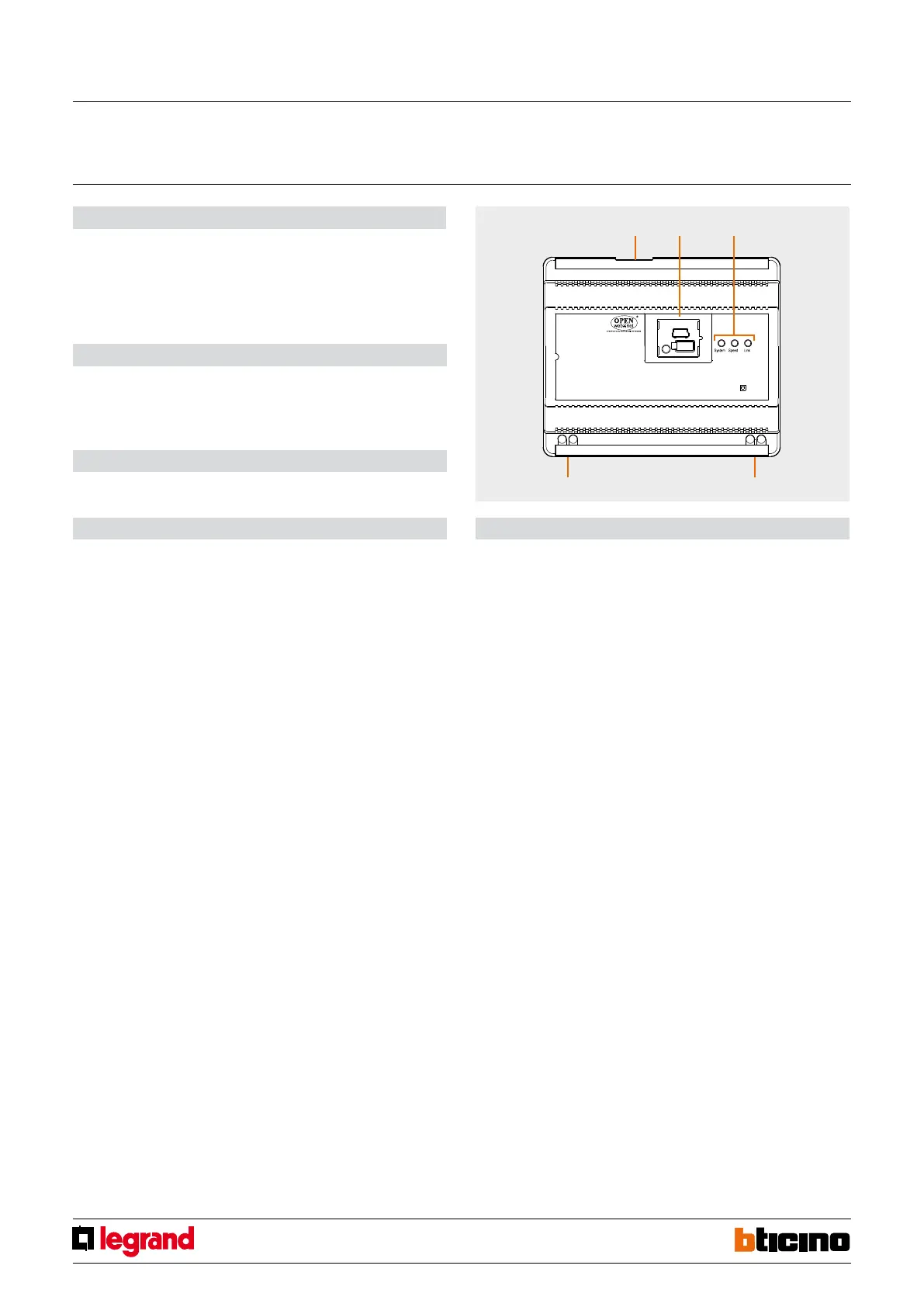

Legend
Technical data
Power supply from SCS BUS: 18 – 27 Vdc
Absorption: 125 mA max (with active video interface)
Operating temperature: 5 – 35 °C
Dimensional data
6 DIN modules
1. RJ 45 for 10/100Mbit Ethernet LAN
2. Under the door are:
- USB ports for PC configuration and Firmware update
- RESET pushbutton
- Serial connector RS232
3. User interface:
- Speed: Connection speed; ON = 100 Mbit;
OFF = 10 Mbit
- Link: ON it indicates the presence of the Ethernet network
- System: when the power supply is connected, it comes on, goes off, and then
comes on again, to indicate that the web server is working
4. 2-wire BUS for video door entry system connection
5. 2-wire BUS for burglar alarm system
Configuration
The audio/video web server is configured using the TiF454 software
thanks to a LAN
connection (wit
h cross-over cable if
the connection between PC and F454
is direct,
without using a HUB/SW
ITCH) or using a standard USB and mini USB cable.
Audio/Video Web Server
MQ00519-b-EN 17/04/2014
