42
3475
4 1
230V ˜
2A cosϕ = 0,6
2A
L L1
1
2
4
3
Description
This actuator can be used in ush-mounted boxes, junction boxes, shutter boxes and
ducts. Particularly advantageous is the installation inside junction boxes, positioning
the item at the back of the ush mounted box, behind lowered control devices. The
actuator has cables for connecting to the BUS and to the load to be controlled and an
LED.
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw: 13 mA
Power/Consumption of driven loads:

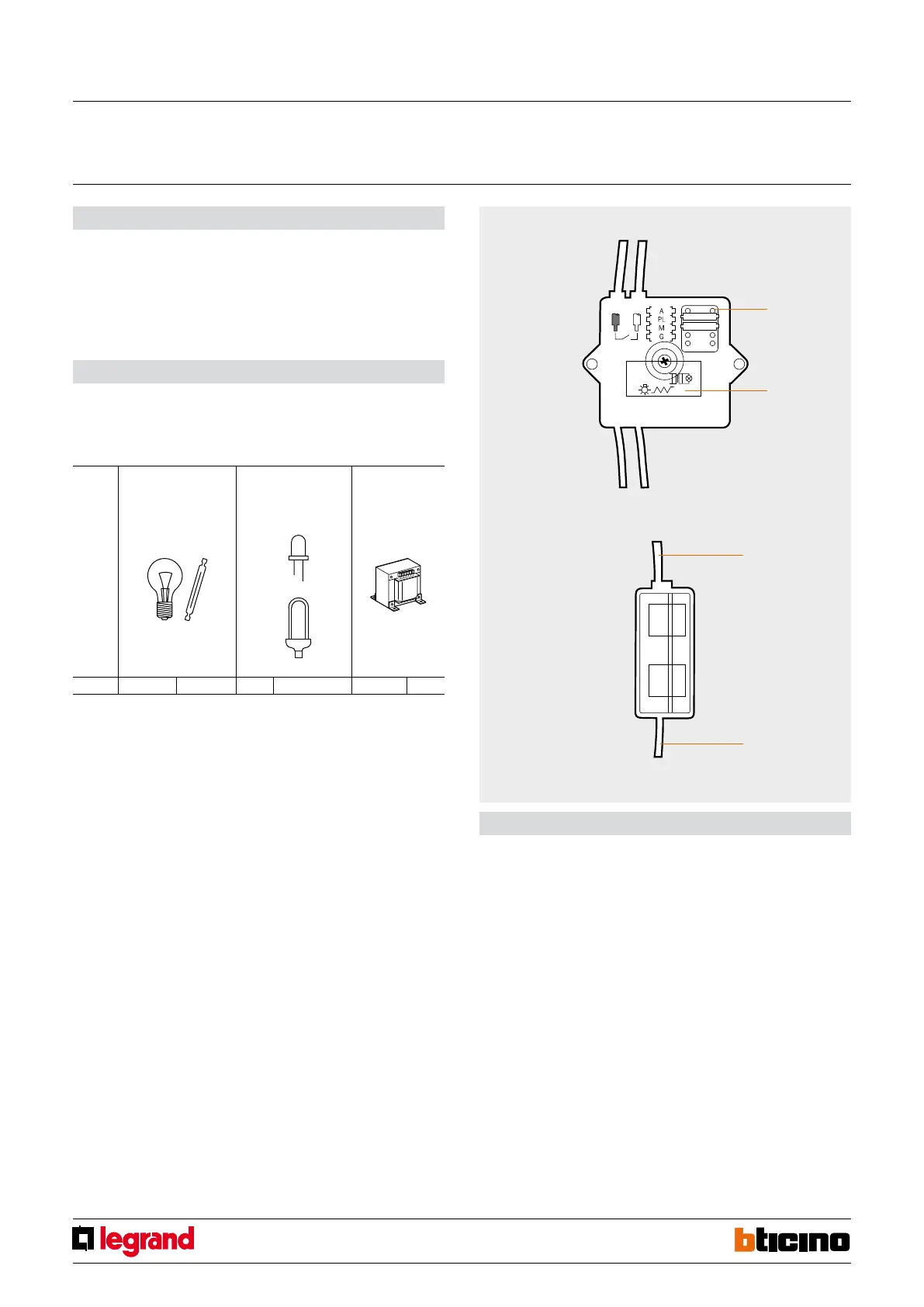

Front view
Side view
Legend
1. Congurator socket
2. LED
3. Cables 0.75 mm
2
for load connection
4. Cables for connecting to the BUS
Size: basic module
Incandescent lamps
Halogen lamps
LED lamps
Compact uorescent lamps
Ferromagnetic
transformers
230 Vac 460 W 2 A 40 W Max. 1 lamp 2 A cosφ 0.5 460 VA
Basic Actuator
MQ00076-e-EN 05/06/2014
