64
230 V~ 3680 W
16 A
10x(2x36 W)
4,3 A
3680 VA
16 A
1150 VA
5 A
1 x 500 VA
2,1 A
110 V~ 1760 W 5x(2x36 W) 1760 VA 550 VA 1 x 250 VA
µ
43
67 5
1
2
8
002602
BMSW1003
Description
Actuator with 4 independent relays for single loads up to 16 A at 230 Vac, and installation
inside DIN rail switchboards or distribution boards.
This device is fitted with local load control pushbuttons.
The device cannot manage the interlocking of the relays. This means that it cannot man-
age motors of rolling shutters, curtains, etc.
The actuator is a component in the Lighting Management system and can also be in-
stalled in a My Home system.
Technical data
Power supply: 110 -240 Vac @ 50/60 Hz
Number of outputs: 4 x 16 A
Power consumption in operation: 0.8 W
Power consumption on standby: (-5 ) – (+45) °C
Type of connection: RJ45
clamp input 2 x 2.5 mm
2
clamp output 2 x 1.5 mm
2
and 1 x 2.5 mm
2
Protection index: IP20
Impact resistance: IK04
Cable section: 2.5 mm
2
Standards, Certifications, Marks
Directive:
– Electromagnetic Compatibility Directive 2004/108/EC
Installation regulations:
– CEI 64-8
Product regulations:
– IEC 60669-2-1
– EN 50428
Environmental regulations:
– EU Directive 2002/96/EC: WEEE (Waste Electrical and Electronic Equipment)
– EU Directive 2002/95/EC: RoHS (Restriction of Hazardous Substances)
Dimensions
Size: 6 DIN modules

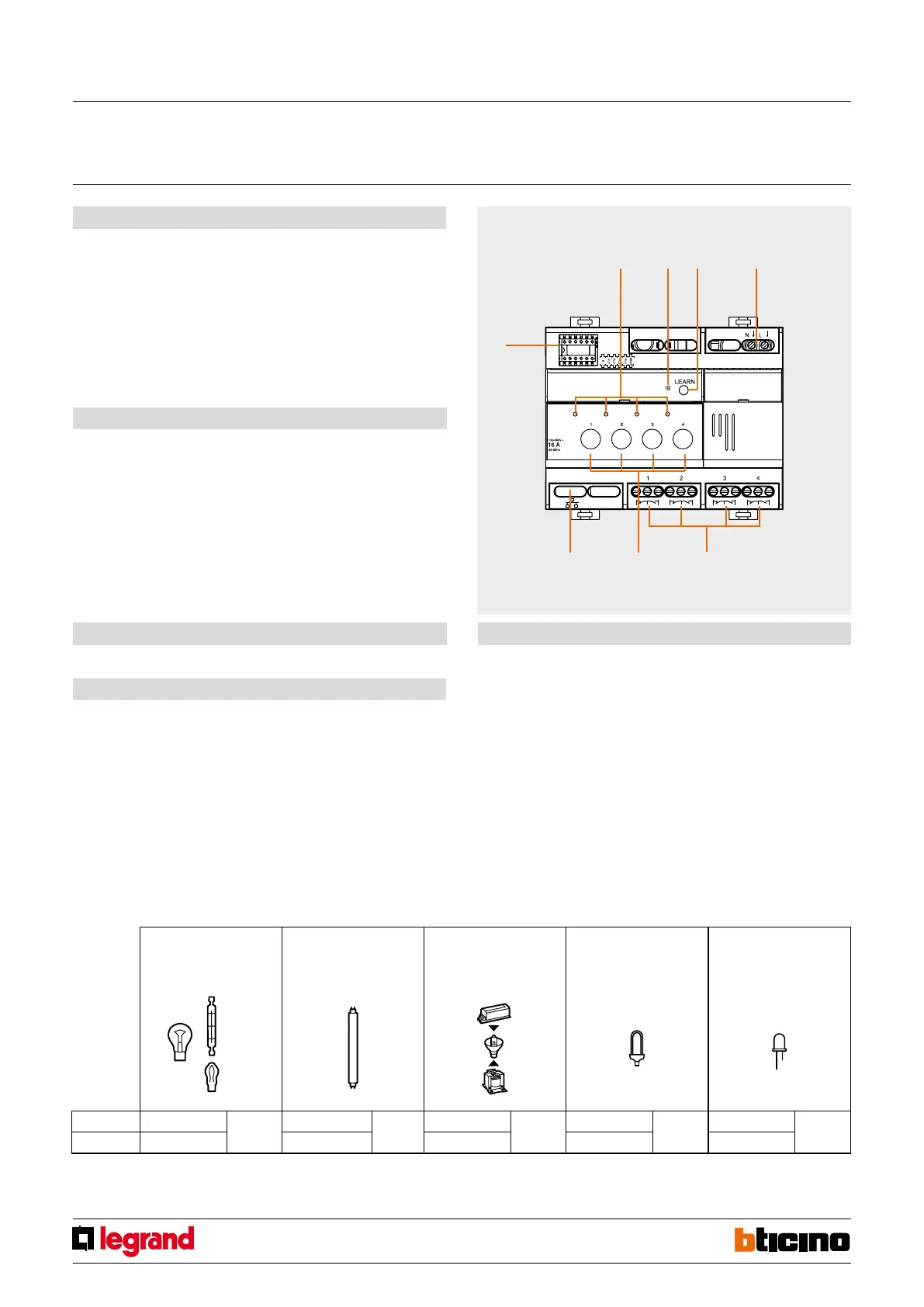

Legend
1. L1, L2, L3, L4 load status indication LED.
2. Learn Mode status indication LED
3. Learn Mode pushbutton
4. Clamps for the connection to the 230 Vac power supply
5. L1, L2, L3, L4 load connection clamps.
6. L1, L2, L3, L4 load activation pushbutton.
7. BUS RJ45 connector
8. Congurator socket (note that this must only be used in My Home systems with the
physical conguration)
Power/Consumption of driven loads:
Halogen lamps
Linear fluorescent lamps
- Electronic transformers
- Ferromagnetic transformers
Compact fluorescent lamps LED lamps
SCS actuator 4x16A
MQ00313-e-EN 09/06/2014
