Description
The power supply must be used to supply power to the MY HOME and Lighting
Management systems. On the output, the unit supplies a 27 Vdc continuous low voltage,
with a maximum current of 1 A (BUS terminals). It is electronically protected (without
fuses) against short circuit and overload.
It’s a double insulation safety device in accordance with CEI EN60065, and can therefore
be used in conjunction with a SELV source in accordance with paragraph 11.1.2.5 of CEI
64-8-4.
The power supply unit is fitted inside a 8 DIN rail module enclosure, and its installation
must be in accordance with the regulations of the country of use.
In general, the following requirements must be met:
- The power supply must always be installed in appropriate enclosures.
- The device must be kept away from water drips and sprays.
- Care must be taken not to obstruct the air vents.
- A two-pole circuit breaker must be installed, with contact separation of at least 3 mm
located nearby the power supply. The circuit breaker is used to disconnect the power
supply from the mains, and to protect it.
Legend

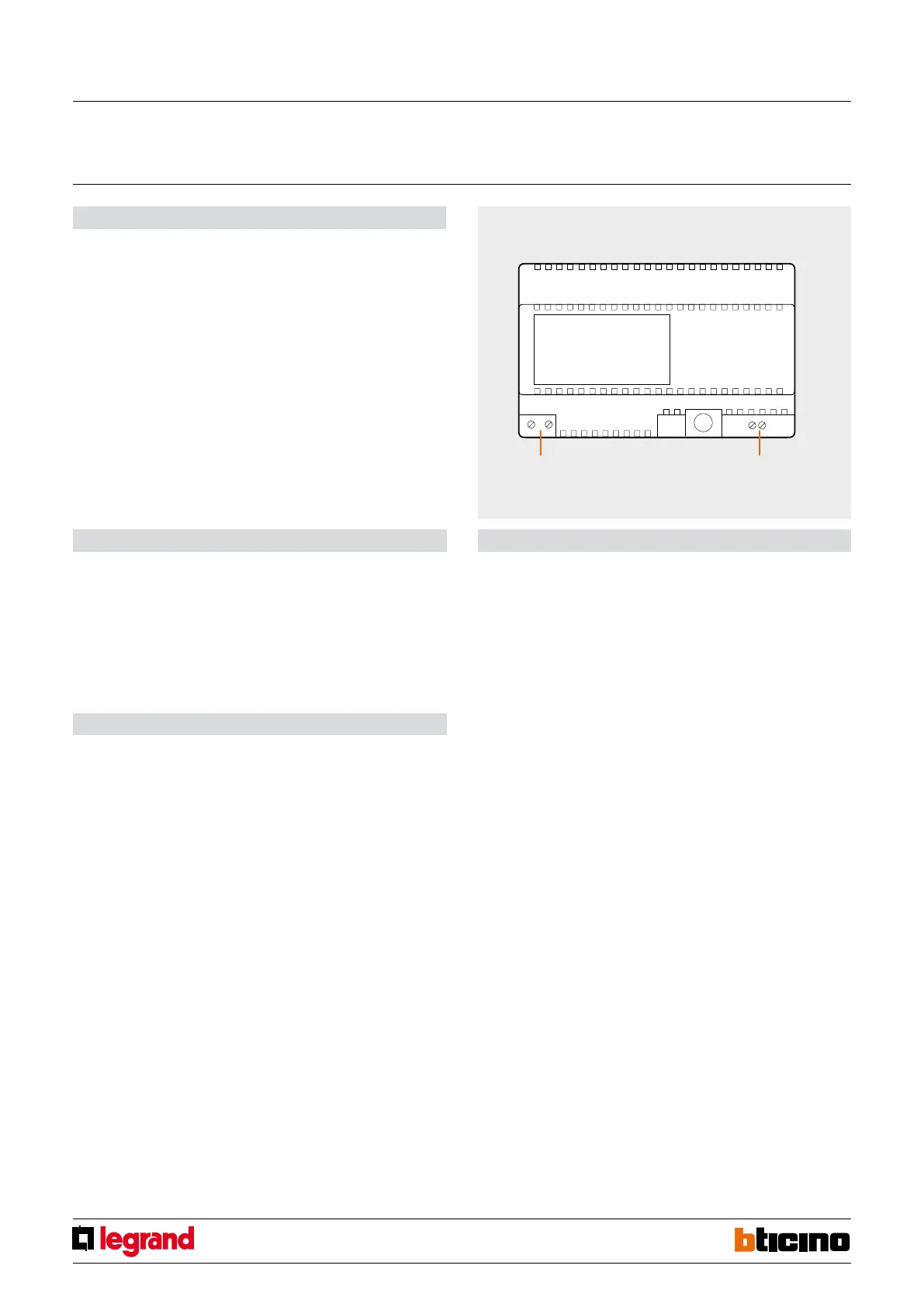

1. Clamps for connection to the power supply voltage
2. Clamps (BUS) for the connection of the BUS/SCS
Technical data
Power supply voltage: 230 Vac ± 10% @ 50/60 Hz
Input MAX power consumption: 300 mA
Output voltage: 27 Vdc
Maximum power delivered: 1.2 A
Maximum power consumption: 11 W
Reference standards: EN60065
Protection index: IP30
Operating temperature: 5 – 40 °C
Dimensional data
Size: 8 DIN modules
