69
5
1
6
7
8
2
4
3
F401
Description
Actuator device in DIN enclosure with 2 interlocked relays, 3 pushbuttons, and 3 LEDs.
The actuator has been designed to be used with specific advanced control devices for the
management of shutters.
However, the actuator can also be used with all other control devices, although in that
case the Preset function will not be available.
Preset function:
In addition to the UP/DOWN Monostable and Bistable operating modes, depending on
the configuration of the corresponding control device, it will also be possible to set the
shutter to a specific position (Preset). For further details see the technical sheet of the
advanced shutter control.
The Preset function can also be managed using the Scenario Module (enabling of
scenarios with preset shutter positions). In this case take the shutter into the desired
position when saving the scenario.
Note: The scenario module must have been produced after week 29-2012.
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Max. current draw: 16 mA
Operating temperature: 0 – 40 °C
Power/consumption of driven loads: 250 Vac - 2 A
Protection index: IK04
Impact resistance: IP20
Standards, Certications, and Marks
• EN50090-2-2: Home and building electronic systems (HBES)
• EN50090-2-3: General functional safety requirements for products
intended to be integrated in HBES
• EN50428: Switches and related accessories for use in home and
building electronic systems (HBES)
Dimensional data
Size: 2 DIN modules

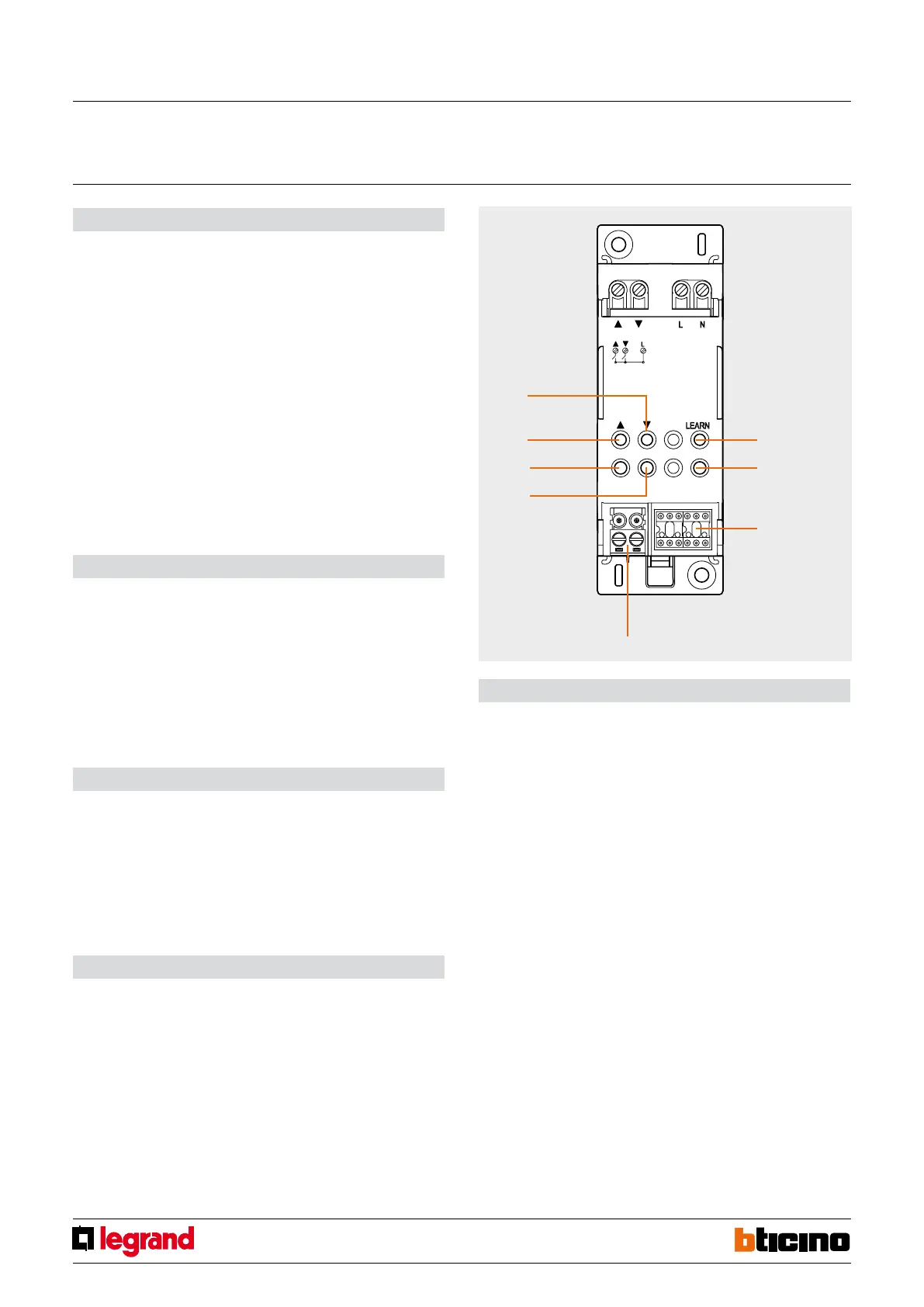

Legend
1. Push&Learn configuration and shutter position configuration pushbutton
2. LED: on during the calibration procedure
3. Configurator socket (to be used only in My Home systems with physical
configuration)
4. BUS clamp
5. DOWN LED: ON when the shutter is moving downwards.
6. UP LED: ON when the shutter is moving upwards. flashing during the virtual
configuration.
7. UP shutter pushbutton
8. DOWN shutter pushbutton
Rolling shutter actuator
MQ00593-c-EN 09/06/2014
