LEGRAND 3440 - Page 84

75
C1
1 2 3
1
2
LN
N
L
MIN 3 m
3
F411/1NC
NOTE 1): In the Master and Master PUL mode you can set an OFF delay of 0-255 seconds (via
MYHOME_Suite) and of 1-4 minutes using the physical configuration. Only for a point-point type
control. With the OFF control the Master actuator deactivates; the Slave actuator deactivates after
the time set with the configurators has elapsed. The value of the configurator listed in the table
defines the final time, after which the actuator deactivates its own SLAVE.
1.2 Mode
Virtual configuration (MYHOME_Suite) Physical configuration
Function Parameter / setting
Master Actuator Master M=0
Actuator as Slave. Receives a control sent by a Master actuator
with the same address
Slave M=SLA
Pushbutton (ON monostable) ignores Room and General controls Master PUL M=PUL
OFF delay: Master actuator with OFF control delayed on the
corresponding Slave actuator.
1)
0 - 255 M=1 1 minute
M=2 2 minutes
M=3 3 minutes
M=4 4 minutes
To use the "Actuator as a slave with PUL function", use MYHOME_Suite virtual config-
uration.
1 NC relay actuator 10A
MQ00190-e-EN 07/06/2014

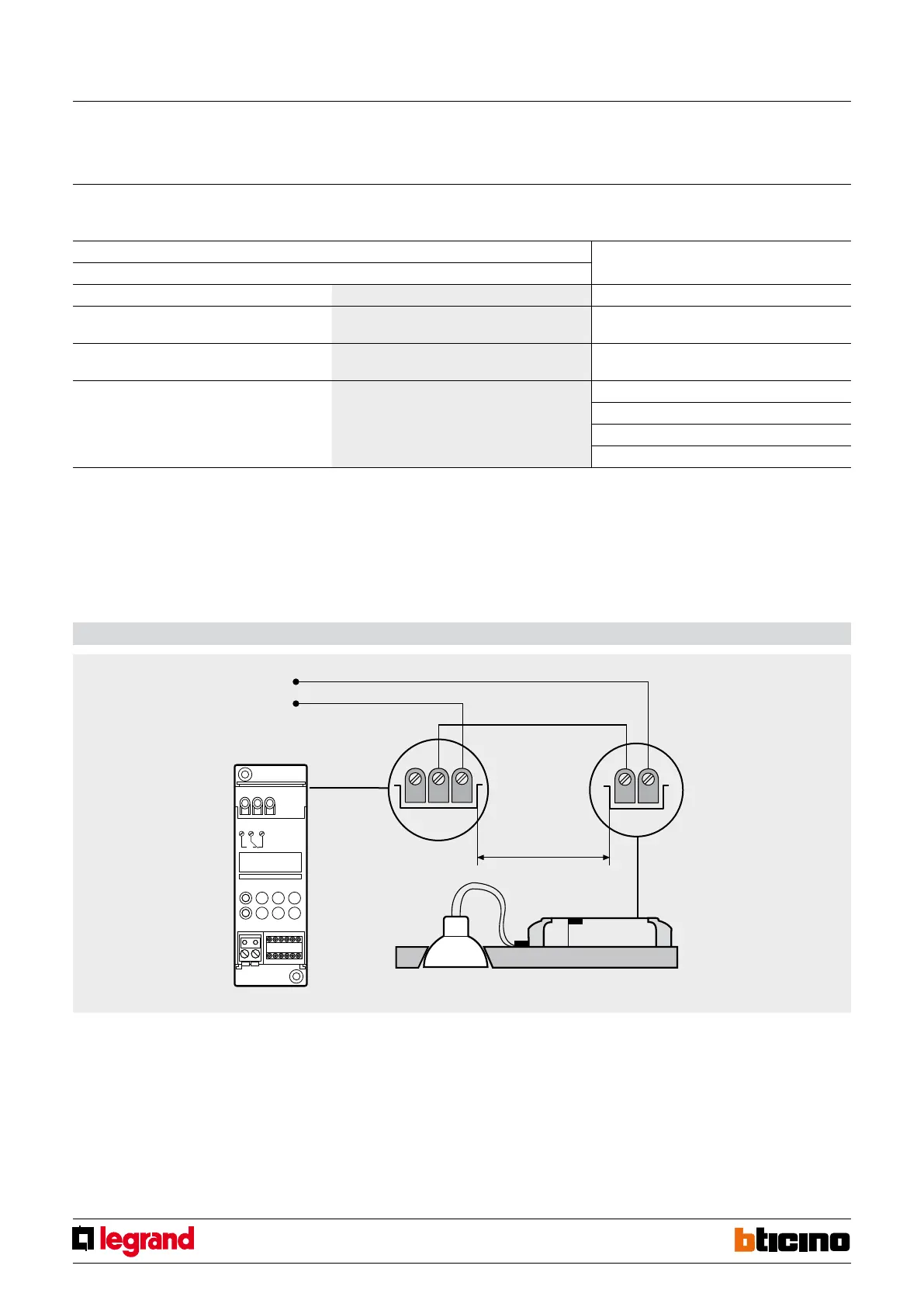

Wiring diagram
