F411/1NC
Description
Actuator for installation in DIN rail distribution boards or switchboards. This device
incorporates a two-way NC relay and a local load control pushbutton. When compared
with actuator F411/1N, the device inverts the relay control logic: at switching ON the
relay contacts are always closed (status ON – LED ON), and open following an OFF control
(LED OFF). In this way, if there is no power input from the BUS, the device will remain
in the ON status, keeping the load ON. In the congurator sockets the device shows the
positions G1, G2 and G3, in additions to positions A, PL, and M, which make it possible
for up to 3 separate belonging groups to be assigned to the actuator.
Technical data
Power supply from BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw: 22 mA
Operating temperature: 5 - 35 °C
Power/Consumption of driven loads:

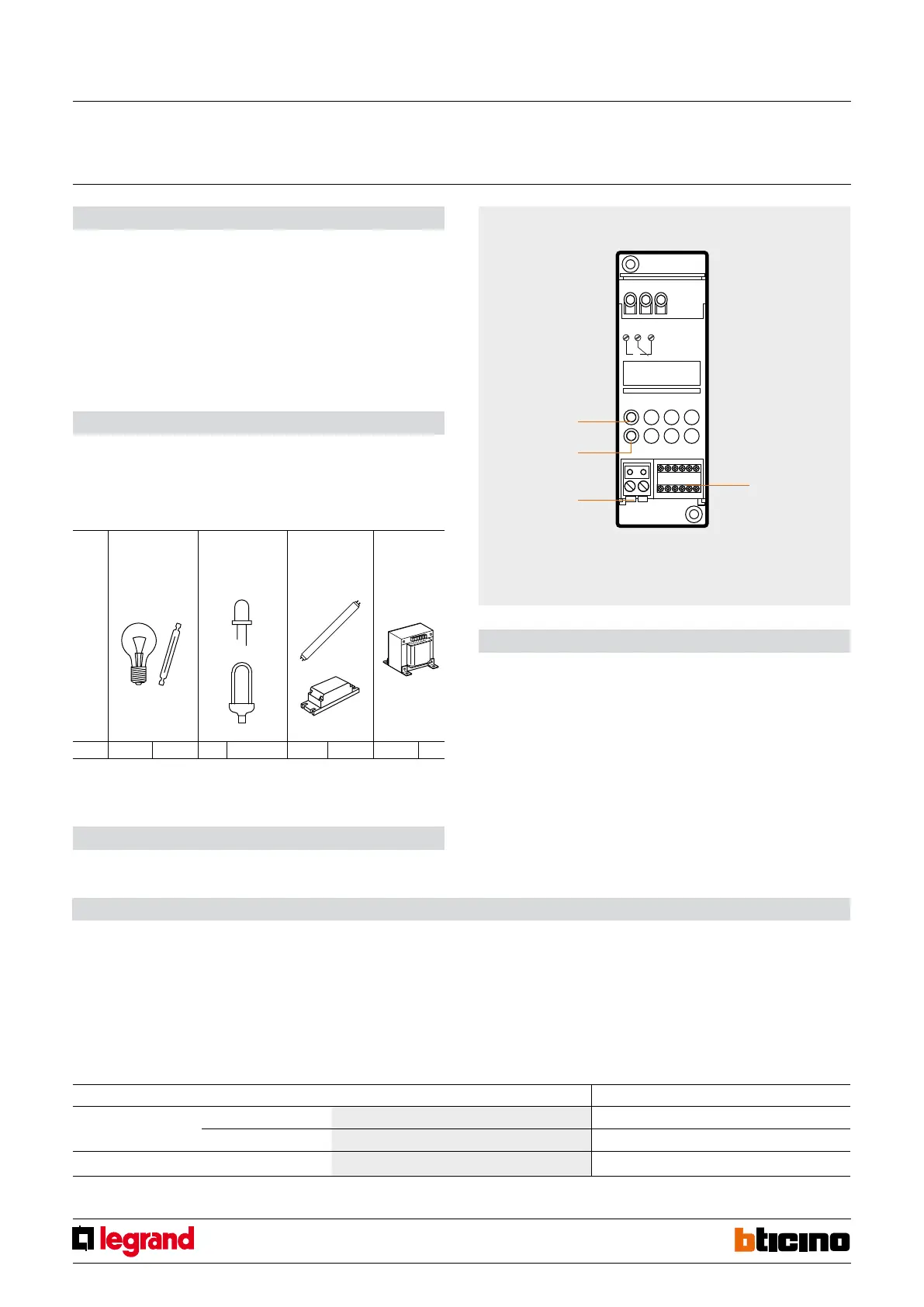

Front view
Legend
1. Congurator socket
2. BUS
3. LED
4. Button
Incandescent lamps
Halogen lamps
LED lamps
Compact uorescent
lamps
Linear fluorescent lamps
Electronic transformers
Ferromagnetic
transformers
230 Vac 2300 W 10 A 500 W Max. 10 lamps 920 W 4 A 4 A cosφ 0.5 920 VA
Protection index: IK04
Impact resistance: IP20
1 NC relay actuator 10A
MQ00190-e-EN 07/06/2014
If the device is installed in a My Home system it can be configured in two ways:
- PHYSICAL CONFIGURATION, inserting the configurators in position.
-
Configuration via MYHOME_Suite software package, downloadable from
www.homesystems-legrandgroup.com; this mode has the advantage of offering many
more options than the physical configuration.
For a list of the procedures and their meanings, please refer to the instructions in this
sheet and to the "Function Descriptions" help section in the MYHOME_Suite software
package.
Configuration
1.1 Addressing
Address type Virtual configuration (MYHOME_Suite) Physical configuration
Point-to-point Room 0-10 A=1-9
Lighting point 0-15 PL = 1-9
Groups
Group 1 - Group 10 = 0-255 G1, G2, G3=0-9
Dimensions
Size: 2 DIN modules
