73
F411/1N
1
2
LN
L
MIN 3 m
3
C1
1 2 3

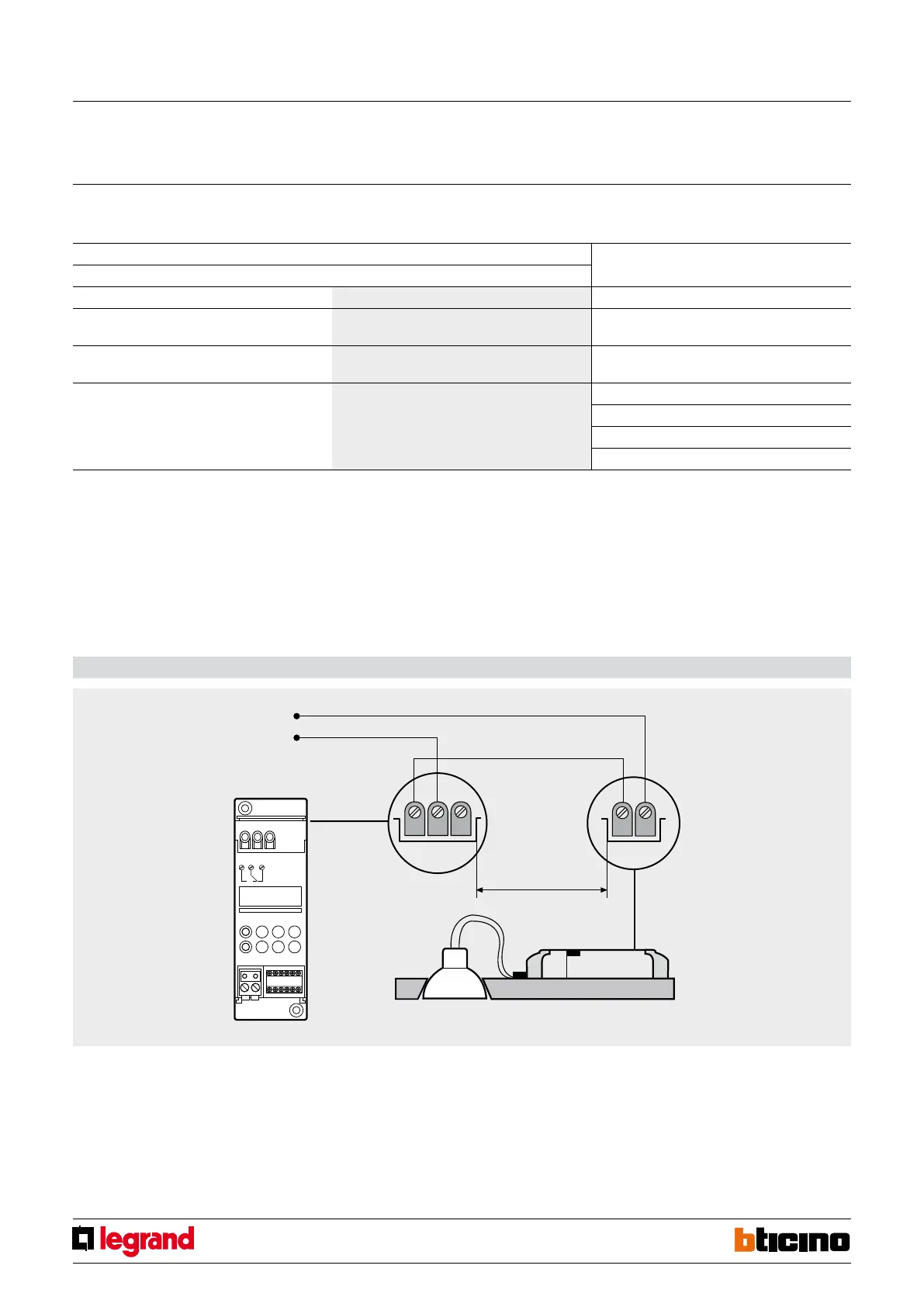

Wiring diagram
MQ00274-e-EN 07/06/2014
1 relay actuator 10A
NOTE 1): In the Master and Master PUL mode you can set an OFF delay of 0-255 seconds (via
MYHOME_Suite) and of 1-4 minutes using the physical configuration. Only for a point-point type
control. With the OFF control the Master actuator deactivates; the Slave actuator deactivates after
the time set with the configurators has elapsed.
Typical function for use in bathrooms without windows where the ON control activates the light
(Master actuator) and the ventilation fan (Slave actuator) at the same time. The OFF control
switches the light off immediately and leaves the fan working for the time set with configurator 1 to
4 in M of the Master actuator as indicated in the table.
1.2 Mode
Virtual configuration (MYHOME_Suite) Physical configuration
Function Parameter / setting
Master Actuator Master M=0
Actuator as Slave. Receives a control sent by a Master actuator
with the same address
Slave M=SLA
Pushbutton (ON monostable) ignores Room and General controls Master PUL M=PUL
OFF delay: Master actuator with OFF control delayed on the
corresponding Slave actuator.
1)
0 - 255 M=1 1 minute
M=2 2 minutes
M=3 3 minutes
M=4 4 minutes
To use the "Actuator as a slave with PUL function" and to select the type of load
(Actuator, Lamp, Valve, Differential Reset, Fan, Irrigation, Controlled Outlet, Lock) use
MYHOME_Suite virtual configuration.
