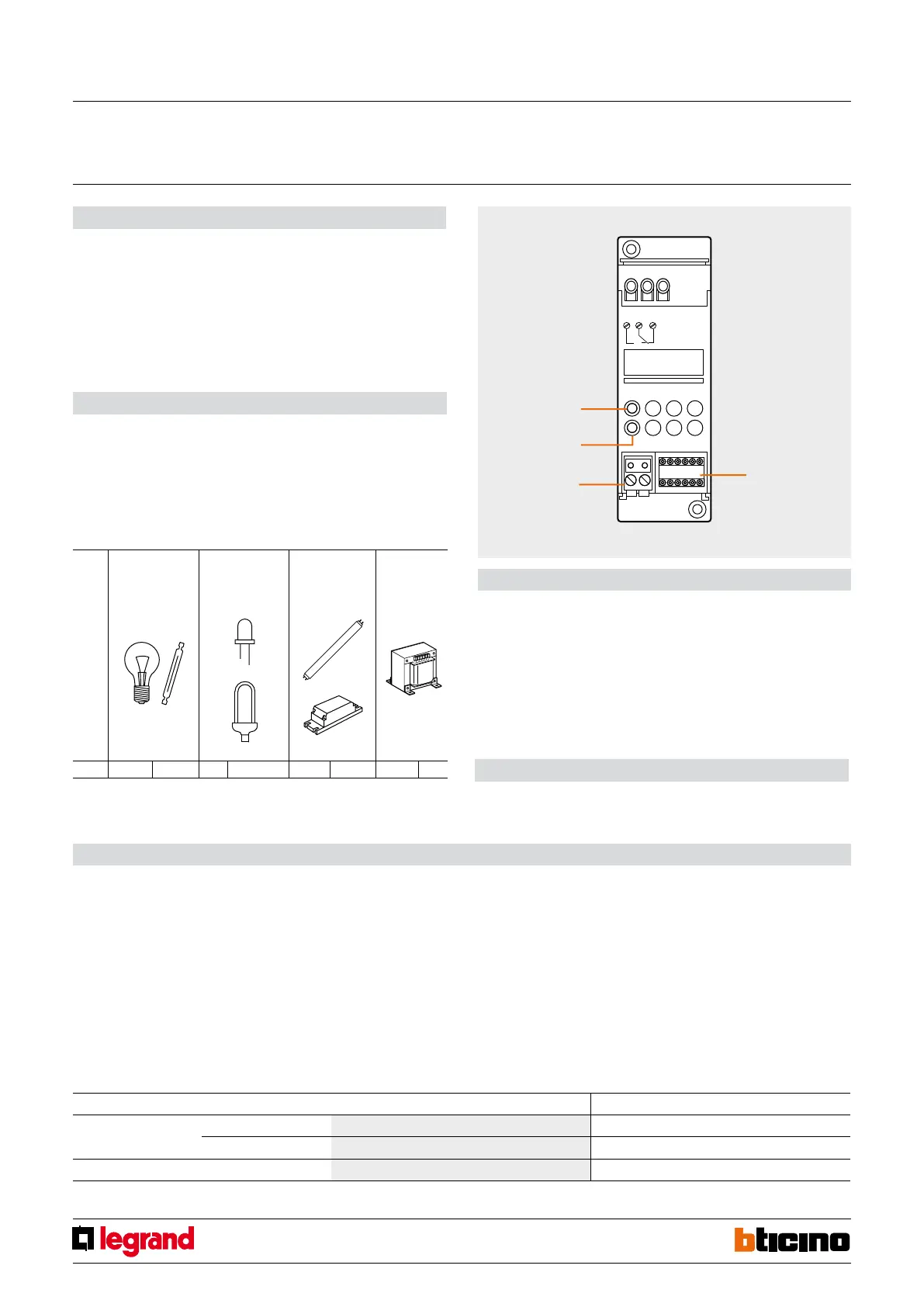

72
F411/1N
C1
1 2 3
1
2
3
4
Description
Actuator for installation in DIN rail distribution boards or switchboards. This device
incorporates a 2-way relay and a local load control pushbutton that is active only when
the actuator is configured.
The device can be installed in a My Home system and use the physical or virtual
configuration, in which case, by configuring positions G1, G2 and G3 it is possible to
assign the actuator to up to three distinct groups. When installed as a component of
the Lighting Management system, specific configuration procedures are used (Plug&go,
Project&Download).
Legend
1. Configurator socket (note that this must only be used in My Home systems with the
physical configuration)
2. BUS connector
3. Load status LED
4. Load control button
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw: 22 mA
Number of outputs: 1x10 A
Dissipated power with max. load: 1.5 W
Operating temperature: (-5) – (+45) °C
Protection index: IK04
Impact resistance: IP20
Dimensions
Size: 2 DIN modules
Incandescent lamps
Halogen lamps
LED lamps
Compact uorescent
lamps
Linear fluorescent lamps
Electronic transformers
Ferromagnetic
transformers
230 Vac 2300 W 10 A 500 W Max. 10 lamps 920 W 4 A 4 A cosφ 0.5 920 VA
Power/Consumption of driven loads:
MQ00274-e-EN 07/06/2014
1 relay actuator 10A
If the device is installed in a My Home system it can be configured in two ways:
- PHYSICAL CONFIGURATION, inserting the configurators in position.
-
Configuration via MYHOME_Suite software package, downloadable from
www.homesystems-legrandgroup.com; this mode has the advantage of offering many
more options than the physical configuration.
For a list of the procedures and their meanings, please refer to the instructions in this
sheet and to the "Function Descriptions" help section in the MYHOME_Suite software
package.
When installed in a Lighting Management system, the actuator can be configured in the
following ways:
- PLUG&GO
- PROJECT&DOWNLOAD
Configuration
1.1 Addressing
Address type Virtual configuration (MYHOME_Suite) Physical configuration
Point-to-point Room 0-10 A=1-9
Lighting point 0-15 PL=1-9
Group Group 1 - Group 10 = 0-255 G1, G2, G3 = 0-9
