80
C1 C2
1 2 43
2
3
4
1
F411/2NC
Technical data
Power supply from BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Absorption: 28 mA
Power/Absorption of driven loads:

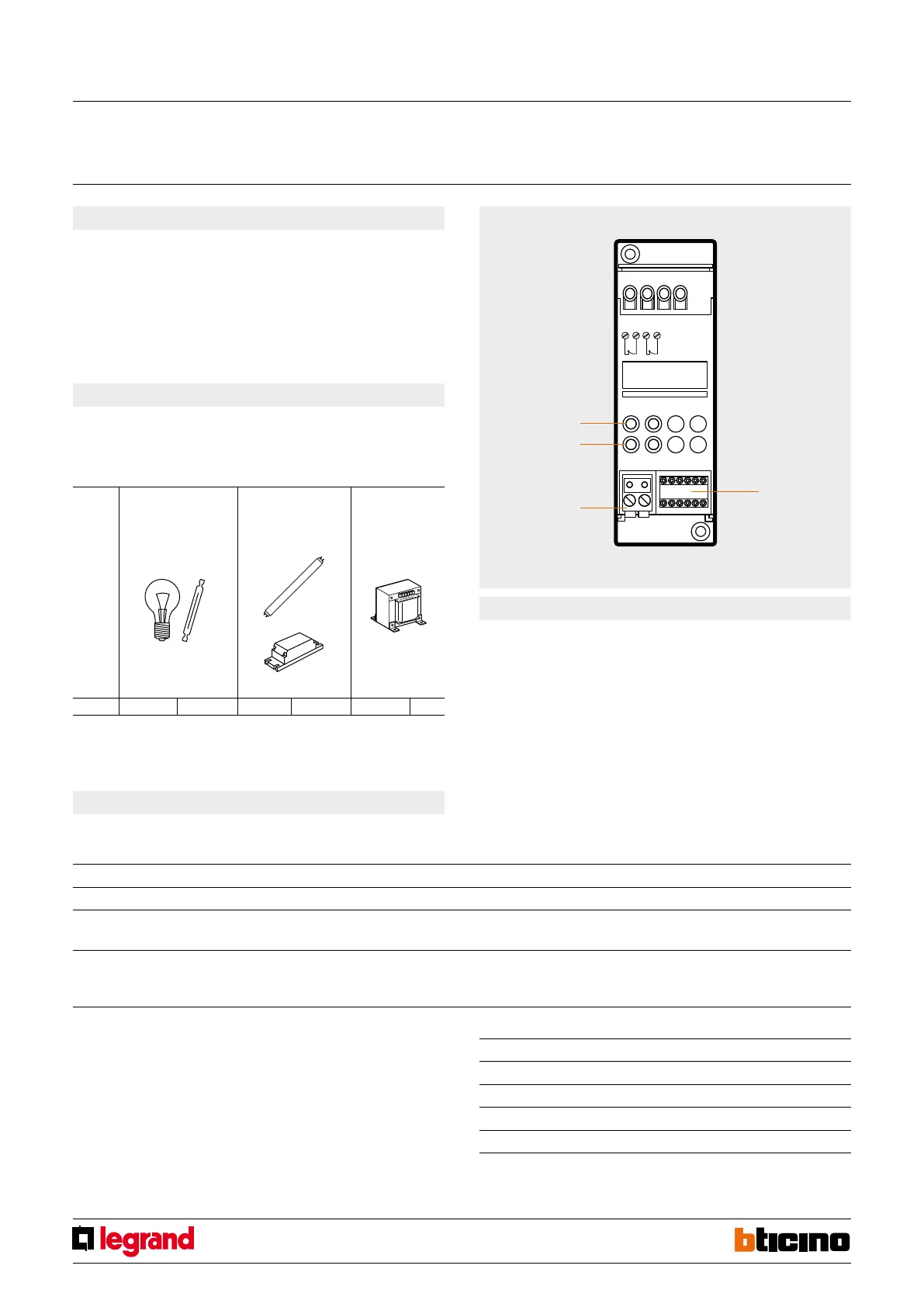

Front view
Incandescent lamps
Halogen lamp
Linear fluorescent lamp
Electronic transformer
Ferromagnetic
transformers
230 Vac 1380 W 6 A 150 W 0.65 A 1 A cosφ 0.5 230 VA
Operating temperature: 0 – 40 °C
Size: 2 DIN modules
Description
Actuator for installation in DIN rail distribution boards or switchboards. This device
incorporates two independent relays for the activation of 2 loads, and includes local
control pushbuttons for each individual load.
When compared with actuator F411/2, this device inverts the relay control logic: at
switching ON the relay contacts are always closed (status ON – LED ON), and open
following an OFF control (LED OFF) In this way, if there is no power input from the BUS,
the device will remain in the ON status, keeping the loads ON.
Legend
1. Congurator socket
2. BUS
3. LED
4. Pushbutton
Conguration
The actuator performs all the basic functions that can directly be congured on the
control device, with the exception of those requiring the use of two interlocked relays.
Possible function Congurator in M
Pushbutton (ON monostable) ignores Room and General controls PUL
Actuator as Slave.
Receives a control sent by a Master actuator with the same address
SLA
Master Actuator with OFF control delayed on the corresponding Slave actuator.
Only for a point-point type control. With the OFF control the Master actuator deactivates;
the Slave actuator deactivates after the time set with the congurators has elapsed
1)
.
1 – 4
1)
1) The value of the congurator listed in the table denes the nal time, after which
expiry the actuator deactivates its own SLAVE
Congurator Time (minutes)
1 1
2 2
3 3
4 4
The following table lists the operating modes possible with the congurator connected
to position M of the same actuator.
2 NC relay actuator
in DIN module
MQ00191-d-EN 30/04/2014
