81
C1 C2 C3 C4
1 2 4 53
1
2
3
4
F411/4

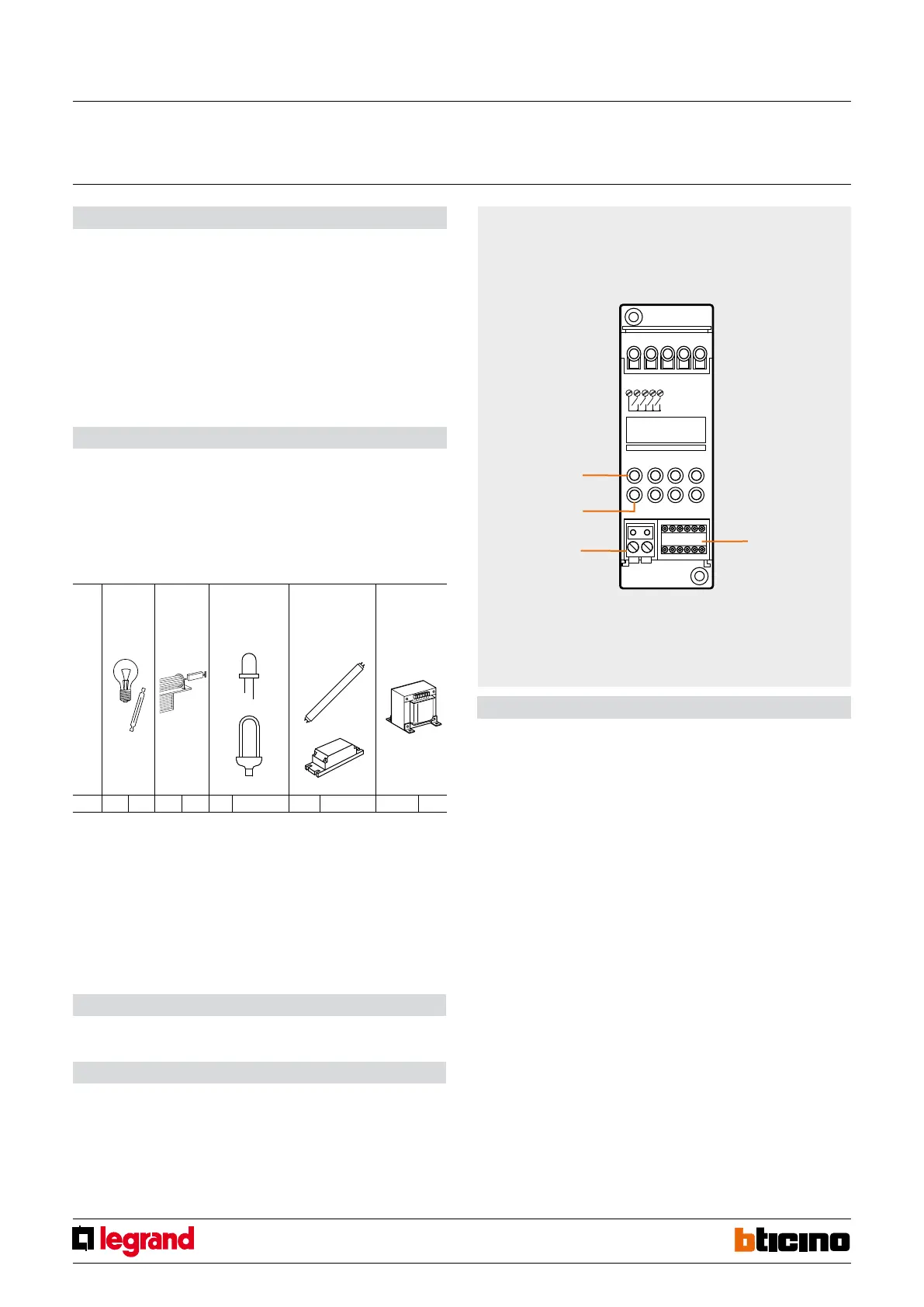

1. Configurator socket (note that this must only be used in My Home systems with the
physical configuration)
2. BUS connector
3. Load status LED
4. Load control button
Legend
Description
Actuator for installation in DIN rail distribution boards or switchboards. This device
incorporates four independent relays with a common terminal for the activation of four
loads, and includes local control pushbuttons for each individual load.
The device can be installed as part of a My Home system, and configured physically or
virtually. In this case if two adjoining positions (e.g. PL2 and PL3) are assigned the same
configurator, the actuator may set two of the four relays in interlocking mode, for the
control of loads such as rolling shutter motors, curtain motors, etc. If all the PL positions
have the same configurator, the actuator sets the four relays for the control of motorised
shutters. When installed as a component of the Lighting Management system, specific
configuration procedures are used (Plug&go, Project&Download).
Dimensions
Size: 2 DIN modules
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw: 40 mA
Number of outputs: 4x2 A
Dissipated power with max. load: 3.2 W
1)
Operating temperature: (-5) – (+45) °C
Power/Consumption of driven loads:
Protection index: IK04
Impact resistance: IP20
NOTE: 1) The dissipated power indicated is that corresponding to the device with all the
relays loaded at the maximum load.
With lower loads also the dissipated power is lower and may be calculated by means of
the following formula: P[mW]=140+400*N+10*[Ic1+Ic2+...IcN]
P: dissipated power in mW, N: number of loaded relays, IcN: load current corresponding
to the N relay.
Incandescent
lamps
Halogen
lamps
Geared motors
for rolling
shutters
LED lamps
Compact uorescent
lamps
Linear fluorescent lamps
Electronic transformers
Ferromagnetic
transformers
230 Vac
460 W 2 A 460 W 2 A
70 W Max. 2 lamps 70 W 0.3 A 2 A cosφ 0.5 460 VA
4 relay actuator 2A
MQ00276-e-EN 07/06/2014
List of Functions
The device performs the following functions:
1. LIGHT SWITCH
2. SHUTTER AUTOMATION CONTROL
3. ROLLING SHUTTER AUTOMATION CONTROL
See the following pages for the configuration procedures.
