88
F414
F415
F414/127
F415/127

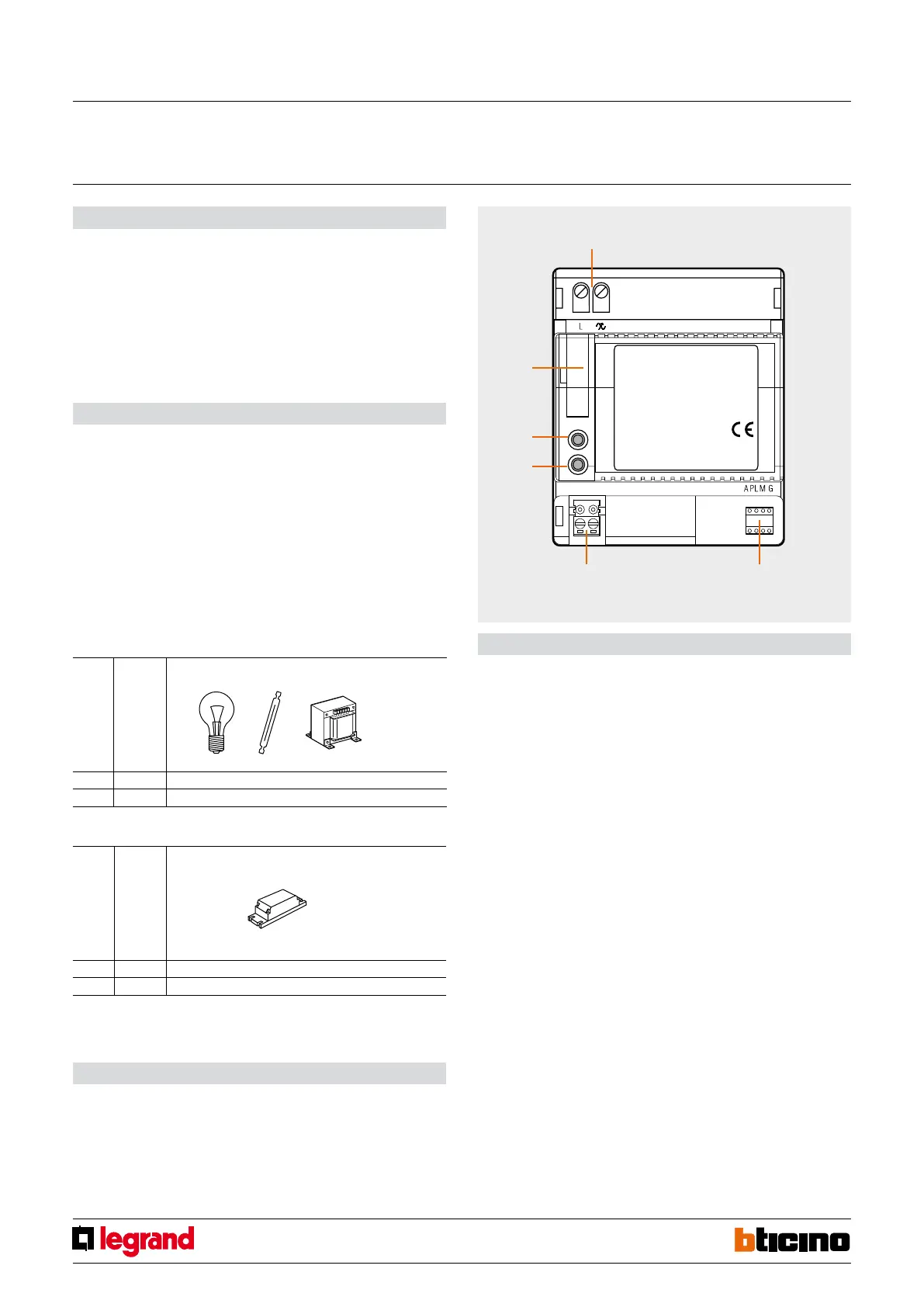

Legend
1. Load connection clamp
2. Configurator socket (note that this must only be used in My Home systems with the
physical configuration)
3. BUS connector
4. Load control button
5. Load status LED
6. Fuse
Description
Item F414 and item F414/127 control resistive loads and ferromagnetic transformers
while item F415 and item F415/127 control electronic transformers. After connecting
the dimmer directly to the BUS and the load, it is possible to adjust the brightness of the
light from any appropriately configured control point. Briefly pressing the control button
is enough to switch the load on or off, while holding it down will adjust the brightness.
The actuator is able to signal any load faults such as, for example, lamp failure. It is also
protected by a fuse, easily replaceable should it blow.
T5H 250V
6
5
4
23
1
Technical data
Power supply via SCS BUS: 27 Vdc
Operating power supply with SCS BUS: 18 – 27 Vdc
Current draw F414-F414/127: 9 mA
Current draw F415-F415/127: 22 mA
Number of outputs F414-F414/127: 1x4 A (9 A for F414/127)
Number of outputs F415-F415/127: 1x1.7 A (3.6 A for F415/127)
Operating temperature: (-5) – (+45) °C
Dissipated power with max. load F414: 10 W
Dissipated power with max. load F415: 11 W
Protection index: IK04
Impact resistance: IP20
F414 Power/Consumption of driven loads:
F415 Power/Consumption of driven loads:
Dimensions
Size: 4 DIN modules
Electronic transformers *
)
F415 230 Vac 50 Hz 0.25 – 1.7 A / 60 – 400 VA
F415/127 110 Vac 50 Hz 0.9 – 3.6 A / 60 – 400 VA
Incandescent lamps - Halogen lamps - Ferromagnetic transformers
F414 230 Vac 50 Hz 0.25 – 4.3 A / 60 – 1000 VA
F414/127 110 Vac 50 Hz 0.5 – 9 A / 60 – 1000 VA
Dimmer 1000VA
MQ00278-e-EN 07/06/2014
NOTE *:
For incandescent lamps (eg halogen) at low voltage
