Group 7 Data Entry Page 119
Release 3.00 Leibinger-Jet 2 se
7.7.6.3 Charging voltage test/Piezo test
Dangerous electrical voltage!
Measurement under voltage has carried out only by electrical
experts!
This work must only be carried out by trained personnel or by
Leibinger service technicians!

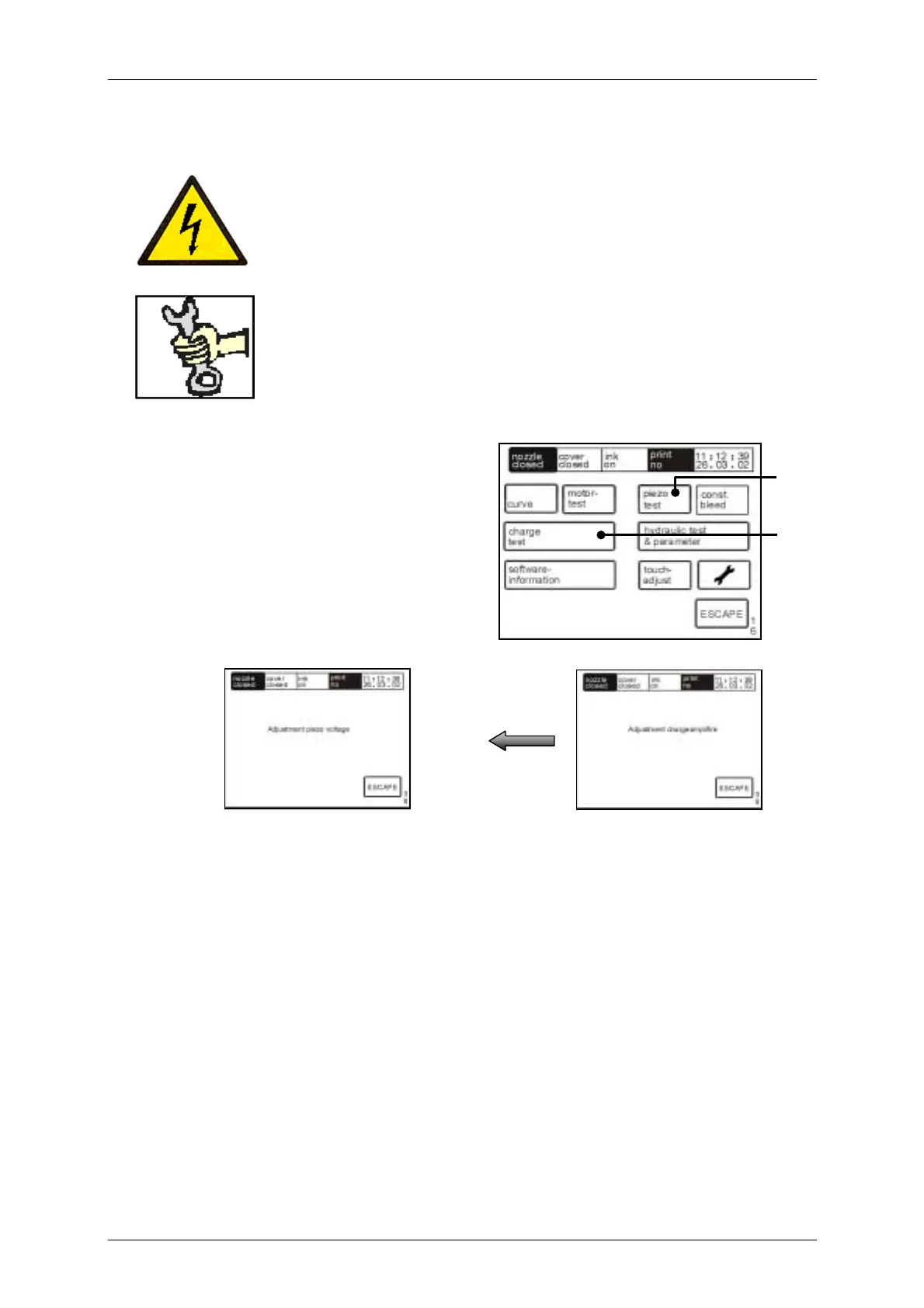

Figure 96
The touch field <charge test>(176) serves
the setting of the charging voltage, the field
<piezo test> (177) the setting of the
oscillator voltage.
Oscillator voltage setting: issue of a constant oscillator voltage that serves
reconciliation with the oscillation voltage booster (Poti TRM 1).
Charging voltage setting: issue of a constant charging voltage for the adjustment of
the charging voltage booster (Offset TRM 2, boost TRM3).
[E39]
E38
[E16]
177
176
