4. Technical data
4.1 Dimensions, weights, connections

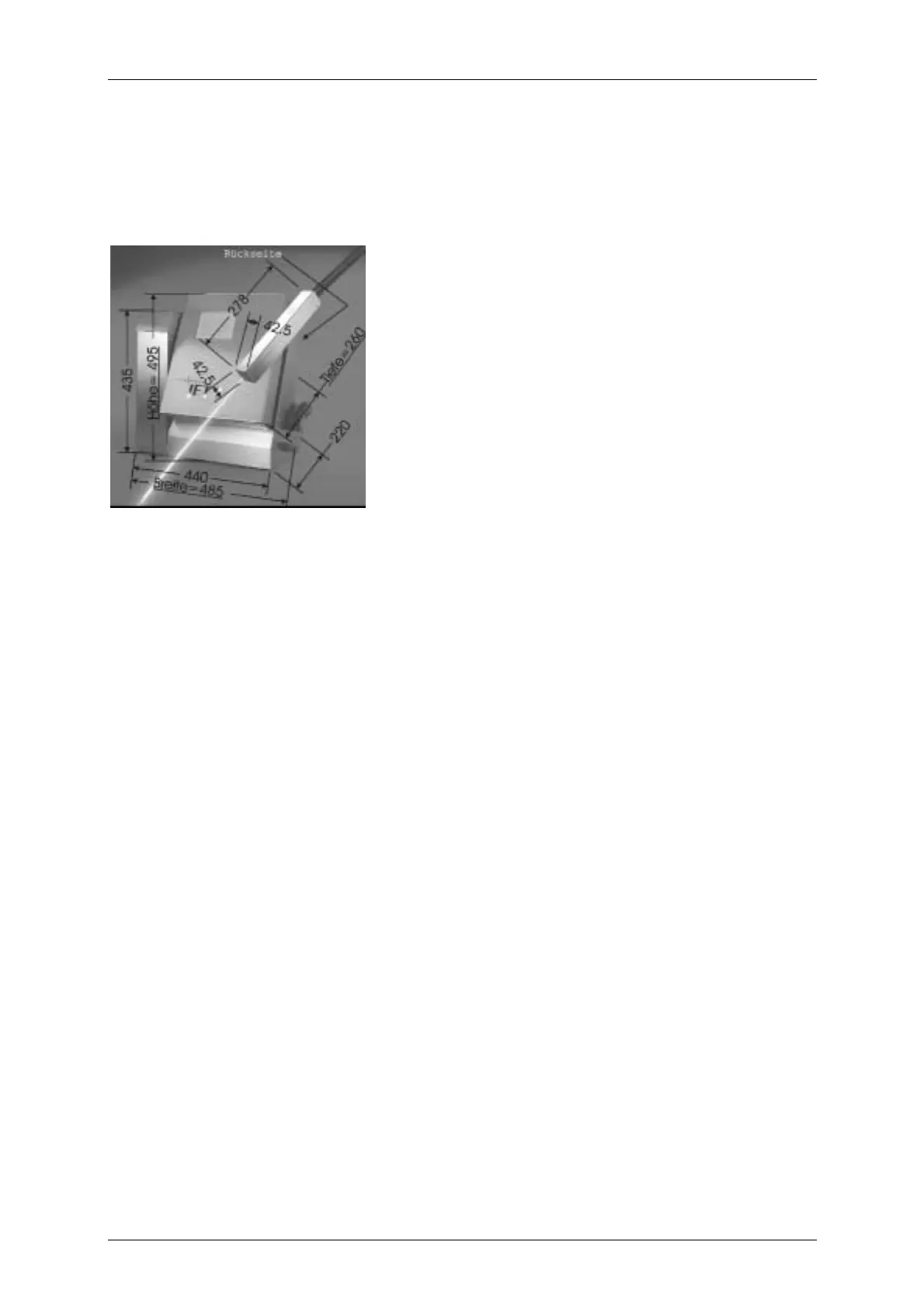

Figure 3
Cabinet : High grade steel
Width 440 mm, depth 280 mm,
height 480 mm
Weight: 22 kg
Print head: High grade steel housing
Length 278 mm, width 42.5 mm,
height 42.5 mm
Length of the print head lead 3 m,
available up to 12 m as an option
Weight: 1 kg
Print head installation position: Any installation position of the print head
print head securing: Screw thread M4 (2x) in the print head with interval 85
mm
Electrical connection values: 115 - 230 V AC ,47-60 Hz
Power consumption: Max. 50 VA, mains part reactive current compensated
Form of protection: IP 54 (higher form of protection possible on request)
4.2 Ambient conditions
Temperature range: + 5° C to + 45° C
(no rapid change of temperature)
Relative humidity: Max. 90 % relative humidity (non-condensating)
4.3 System interfaces
Product sensor: 5-pole connection bush, 24 V, 100 mA, for optical,
inductive, capacitive proximity switch NPN/PNP types
Pressure synchronisation:
(optional)
Digital incremental shaft encoder with 12-pole bush on
the rear side of the cabinet (5 V, EIA 422 A)
