Group 6 Operation – description of the device Page 62
Release 3.00 Leibinger-Jet 2 se
6.5.3 DC power supply
Dangerous electrical voltage!
Contact causes serious damage through an electric shock!
Disconnect the device from the mains supply prior to opening.
Remove mains plug!
The direct currents of the LEIBINGER-JET 2 are achieved through a power supply with
automatic input voltage recognition. It has "Power Factor Compensation" and is
permanently short circuit resistant or switches off independently in the event of overload.
It is protected by a safety fuse. The output voltages cannot be altered.
The mains part provides the following output voltages:
V1: + 5,0 Volt
V2: + 5,0 Volt (standby supply voltage)
V3: + 18,0 Volt
V4: - 18,0 Volt
V5: + 24,0 Volt
V6: + 2- 8 KV

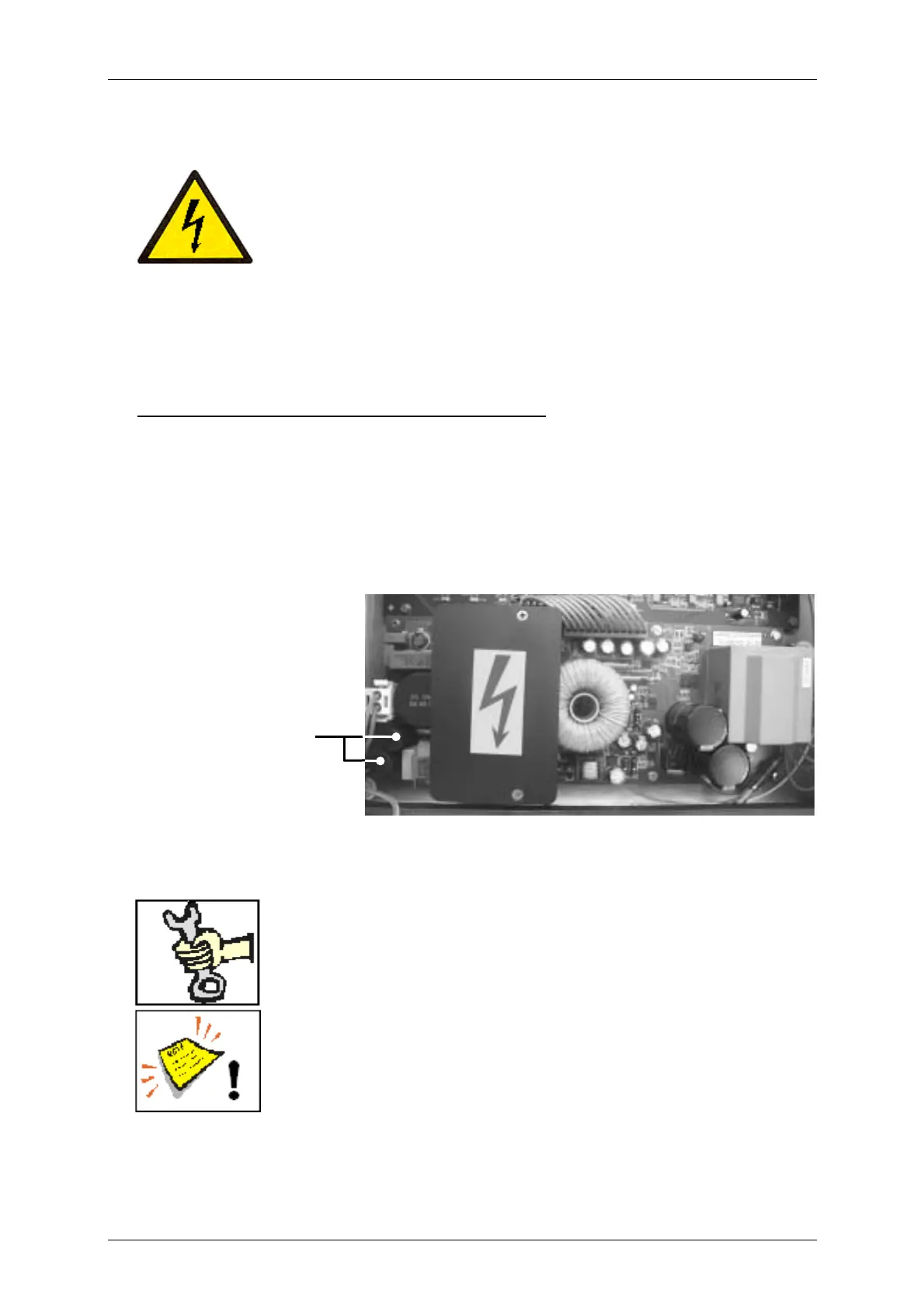

Figure 28
1 – Main fuses (2x)
F1,6 H
(54-003 339 KA)
Ink jet power supply
(54-001 949 SB)
For service purposes the power supply and the fuses are accessible from the front side
of the device.
This work must only be carried out by trained personnel or by
Leibinger service technicians!
It is imperative that you observe the instructions on the subject of fuse
changing in the group Equipping/maintenance in the chapter Other
service work!
