Leibinger Jet 2 - Printer Installation Procedures

Group 5 Transport/start up Page 33
Release 3.00 Leibinger-Jet 2 se
The device has four fastening possibilities for secure setting up and should be screw
connected at the place of setting up.

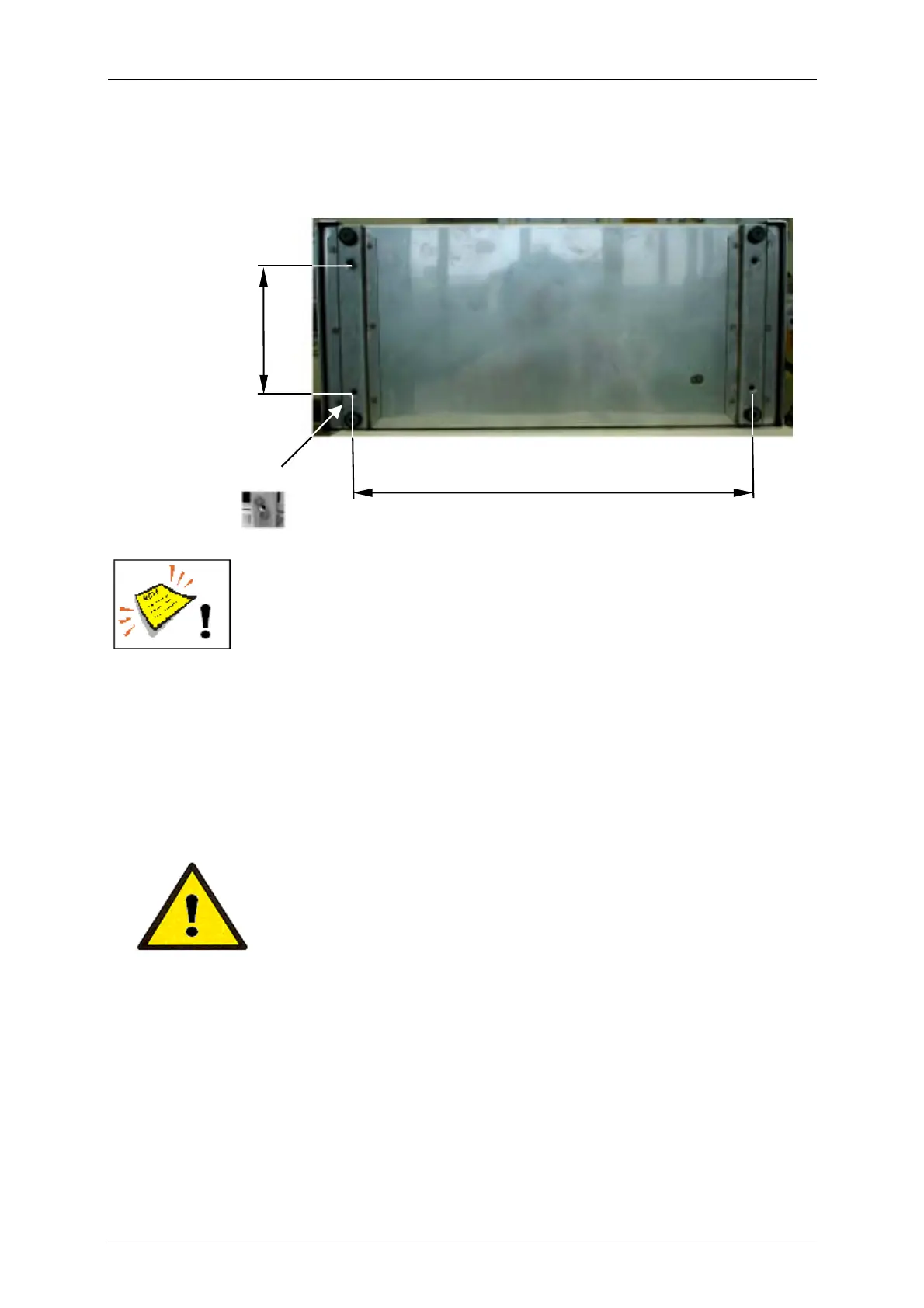

Figure 5
A place of setting up with sufficient load bearing capacity and stability
must be chosen. Prior to assembly the place of setting up must be
cleaned of dirt and contamination (residue of lubricants etc.) .
5.3 Installation
For the adaptation to a production line various work must be carried out prior to
commissioning and operating parameters set.
5.3.1 Mains connection
Mains connection!
The device has no mains switch and must only be connected to a
plug socket in the direct vicinity of the place of setting up!
The LEIBINGER- JET 2 must be connected to alternating current 115 - 230 V AC, 47 –
60 Hz with a corresponding plug. The plug socket should be equipped with a clear
marking (e.g.: LEIBINGER-JET 2).
377 mm
120 mm
M6
(
4x
)
