Leibinger Jet 2 - Printgo Distance; Droplet Flight Time

Group 7 Data Entry Page 99
Release 3.00 Leibinger-Jet 2 se
7.5.2 Printgo distance

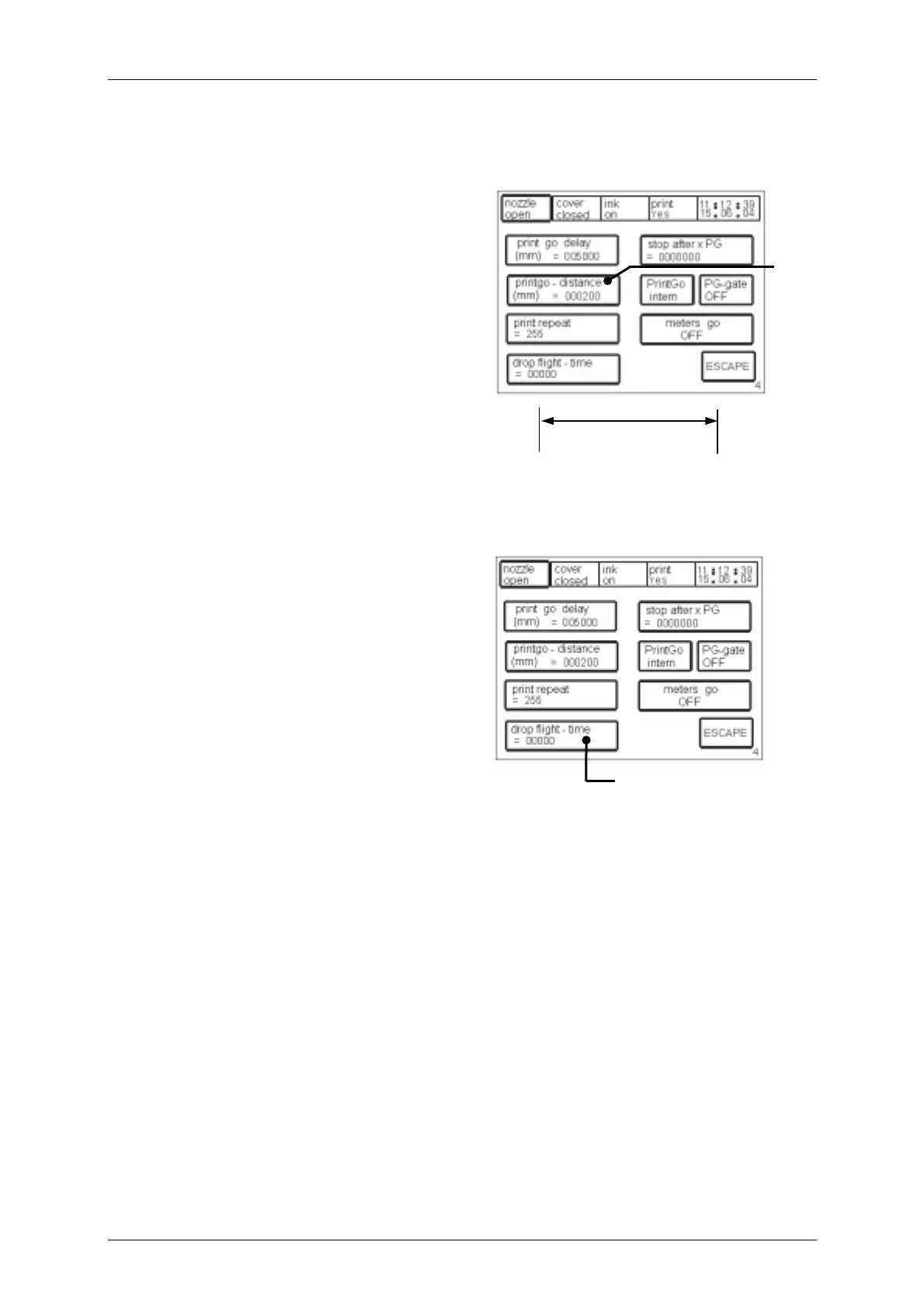

Figure 73
The touch field <printgo-distance> (104)
determines the gap between the individual
print-outs by the value set, at the same
time the current value is displayed in
addition in the field. Values between 0 –
99999.9 are admissible. The entry is done
in mm.
The greater the value entered the greater is
the gap between the individual print-outs.
text text
7.5.3 Droplet flight time
Figure 74
The touch field <drop flight-time> (105)
causes an alteration to the droplet loading.
Major speed alterations require the droplet
flight time compensation for the prevention
of text item variances. A precondition is the
setting of a greater print delay because at
higher speeds the droplet loading must
start earlier.
[E4]
104
printgo distance
105
[E4]
