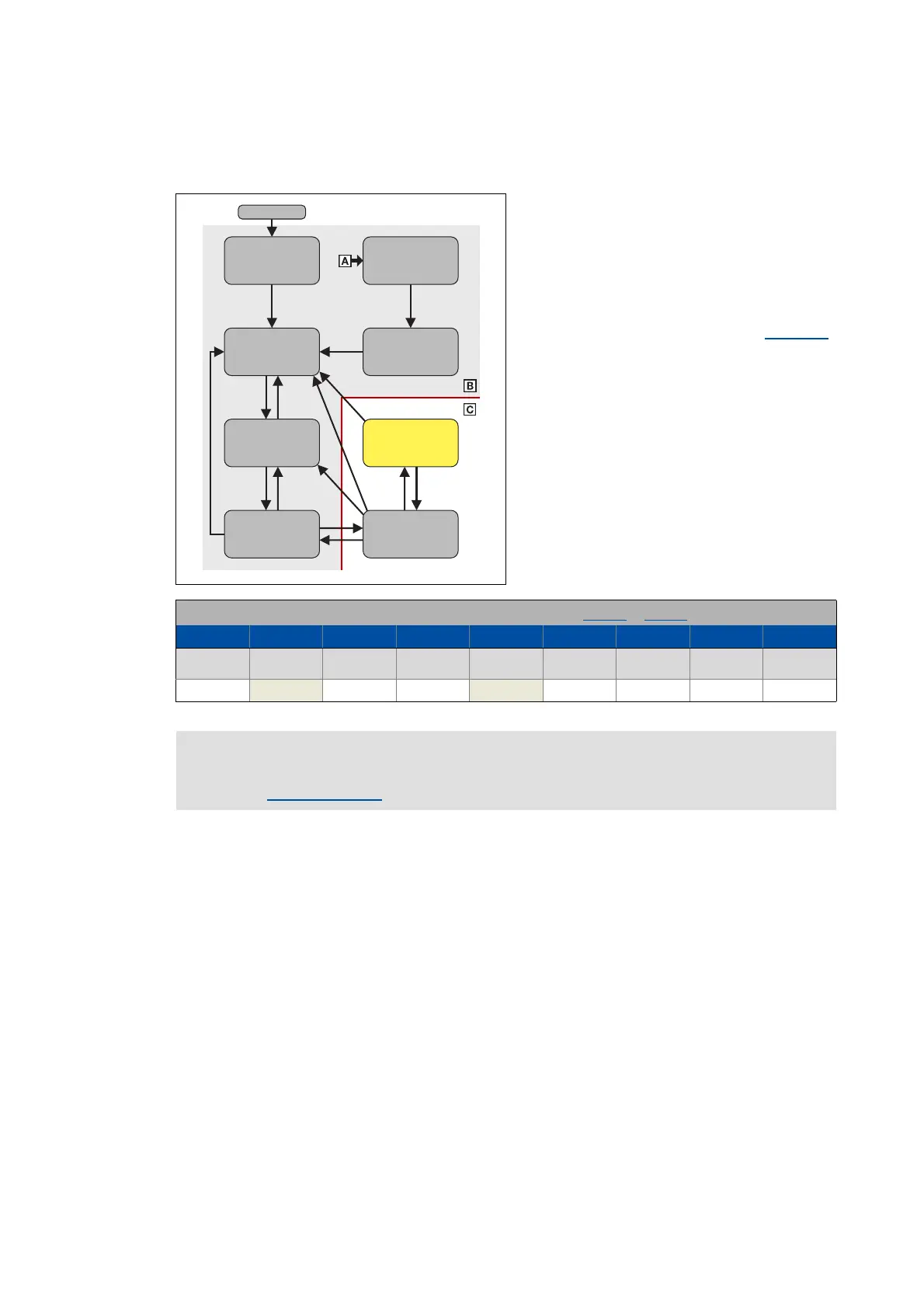

7.4.2.6 Quick stop active
This device status is active if quick stop is
executed or is active.
• Only those parameters of the servo
inverter can be changed that do not
require controller inhibit.
• If the internal holding brake control is
active in the i700 servo inverter (0x2820:1
= 0), the motor brake is closed!
• The drive control is working.
Bit pattern for the "Quick stop active" device status in the Statusword (0x6041 or 0x6841 for axis B):
Bits 15 - 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Warning is
active
Switch on
disabled
Quick stop Voltage
enabled
Fault active Operation
enabled
Switched on Ready to
switch on
X X00X0111
 Note!
The "Enable operation" command serves to deactivate an active quick stop again.
Ready to
switch on
Not ready to
switch on
Switched
on
Operation
enabled
Fault reaction
active
Fault
active
Switch on
disabled
Quick stop
active
Power on
