Horizontal bottom contact connector
This FRU contains a horizontal bottom contact cable connector. Read the instructions before proceeding.
The horizontal bottom contact connector uses a
flip
locking actuator to lock the ribbon cable into the Zero
Insertion Force (ZIF) connector. The cable is inserted horizontally into the connector.
Warning—Potential Damage: When opening or closing this type of actuator, gently lift the center of the
actuator using your
finger.
Do not use a
fingernail
or screwdriver to open the actuator. This could damage
the ribbon cable. Do not close the actuator from the ends of the actuator.
Removing a cable from the horizontal bottom contact connector

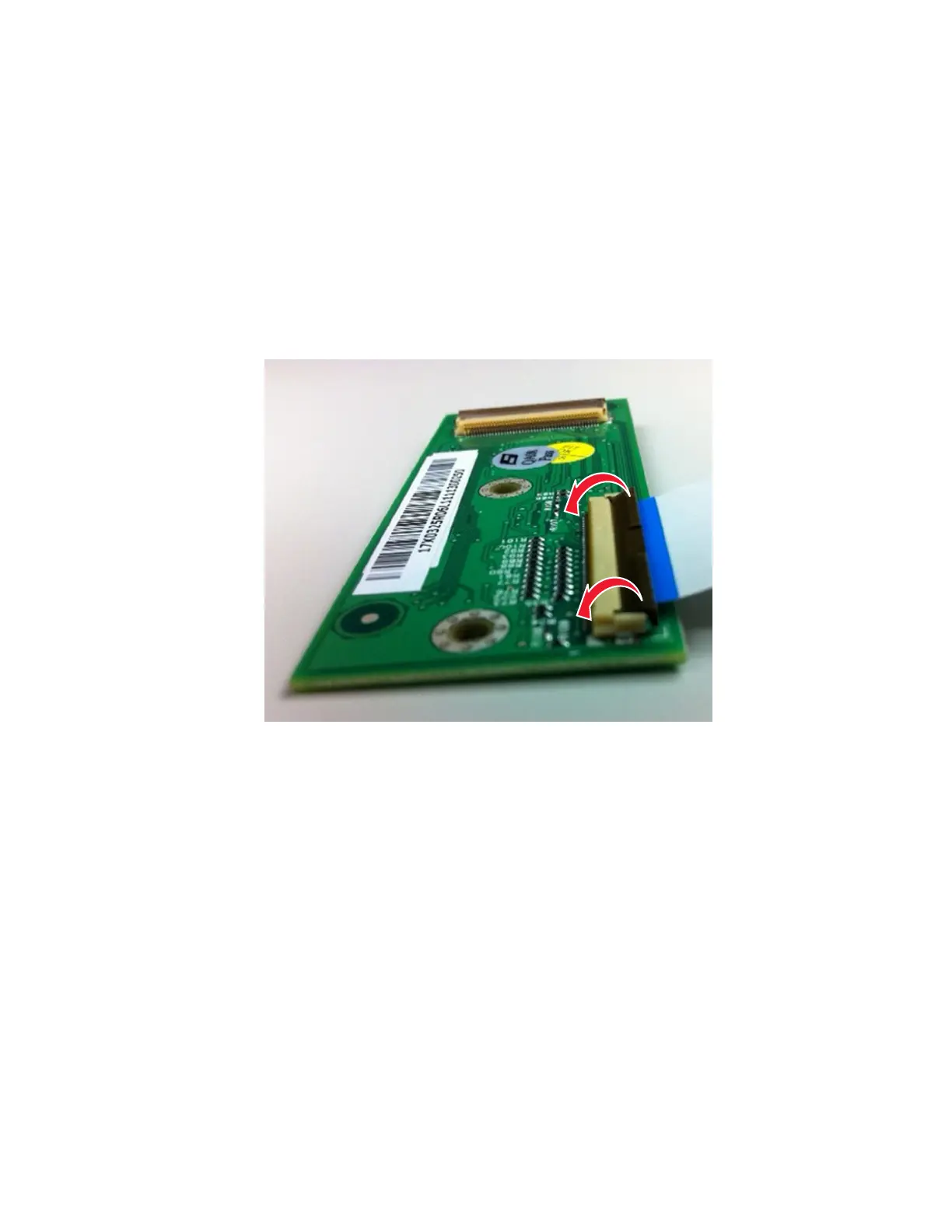

1 Place two
fingers
towards each end of the locking actuator, and then gently lift the actuator to the unlocked
position.
2 Slide the cable out of the connector.
