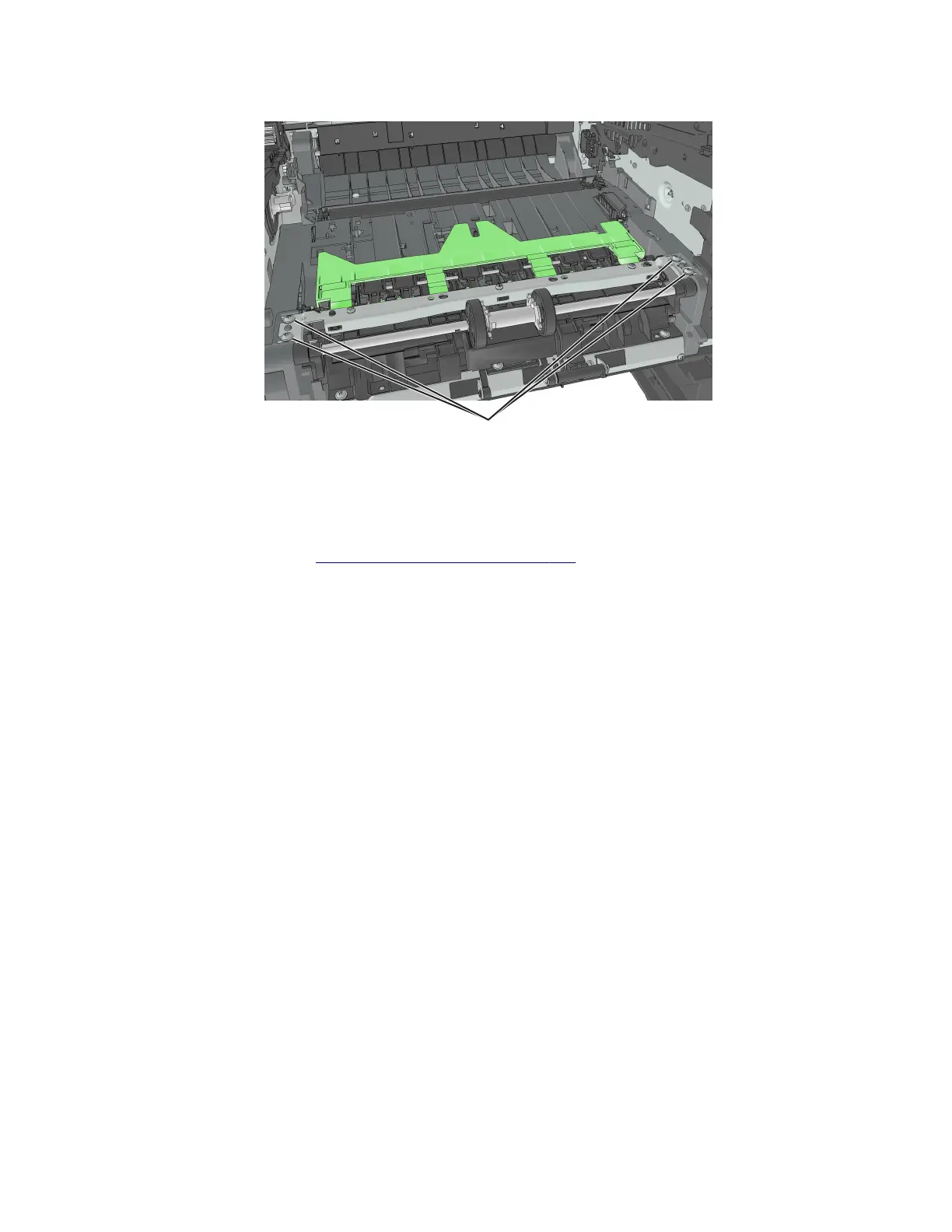

3 Remove the four screws (A), and then remove the jam access cover.

Front door removal

Note: This is not a FRU.

1 Remove the right cover. See “Right cover removal” on page 241.

2 Disconnect the following cables from the controller board:

For MS510dn and MS610dn:

• JUICC1

• JCVR1

• If applicable, JUSBF1

For MS610de:

• JUICC

• JCVR1

• JAUD1

• J43

4514-6xx

Parts removal
