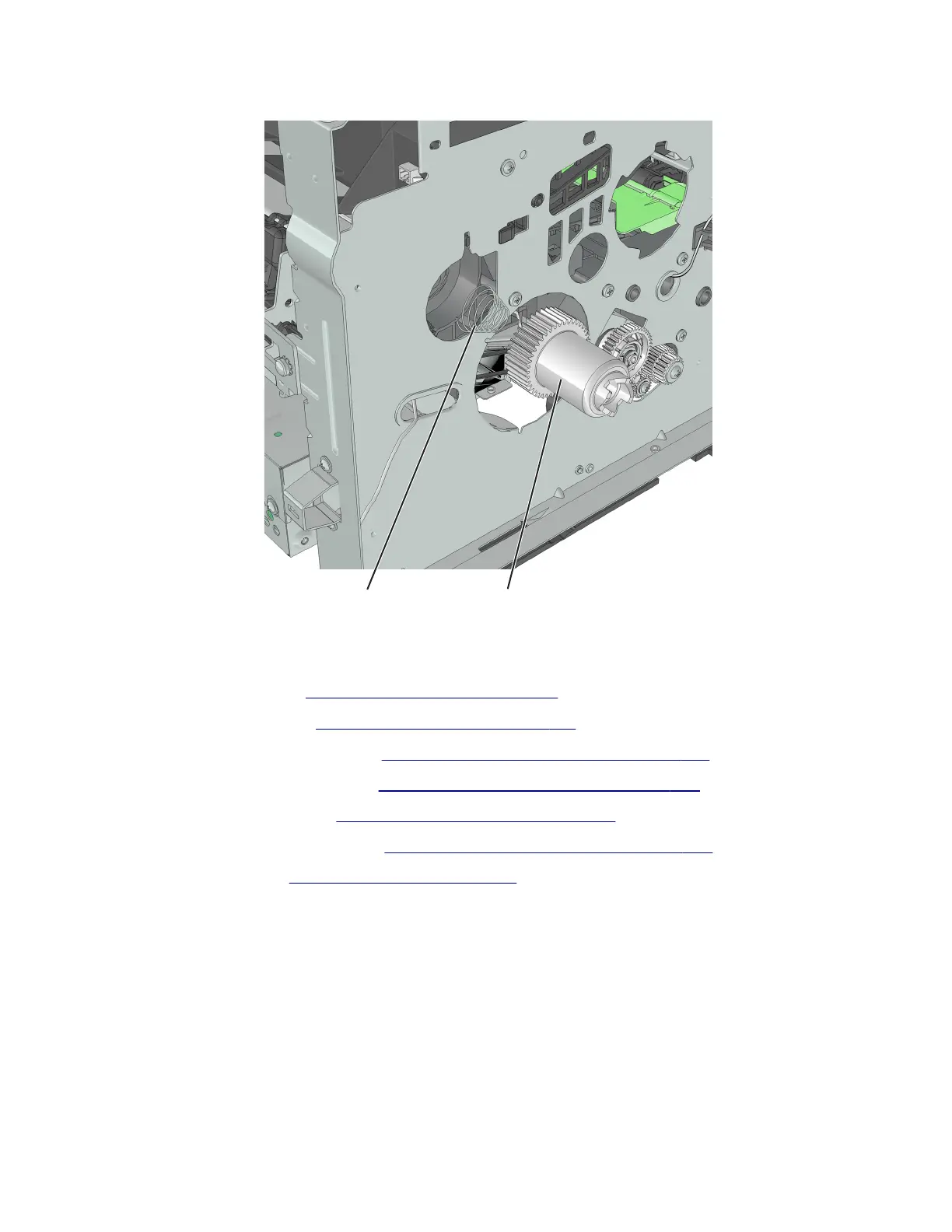

5 Remove the spring (B) and the fuser gear (C).
BC
MPF solenoid removal
1 Remove the left cover. See “Left cover removal” on page 228.
2 Remove the right cover. See “Right cover removal” on page 241.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
4 Remove the main drive gearbox. See “Main drive gearbox removal” on page 229.
5 Remove the power supply. See “Power supply removal” on page 289.
6 Remove the power supply shield. See “Power supply shield removal” on page 290.
7 Remove the duplex. See “Duplex removal” on page 291.
8 Disconnect the MPF solenoid cable from the controller board.
9 Remove the screw (A).
4514-6xx
Parts removal
231
