Right front mount removal
1 Remove the right cover. See “Right cover removal” on page 241.
2 Disconnect all control panel cables from the controller board.
3 Disconnect the cable JCVR1 from the controller board.

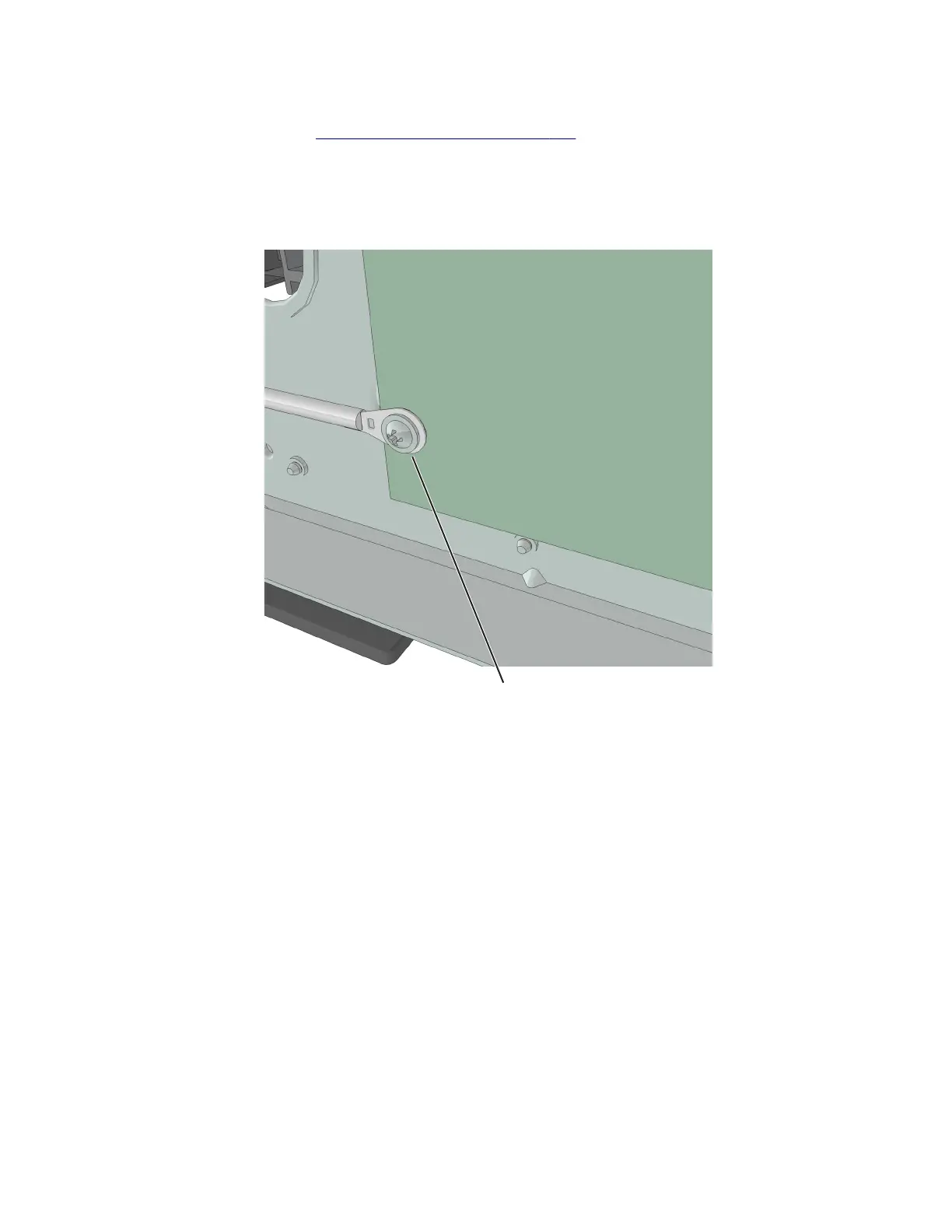

4 Remove the screw (A) to disconnect the ground wire.
A
4514-6xx
Parts removal
255
