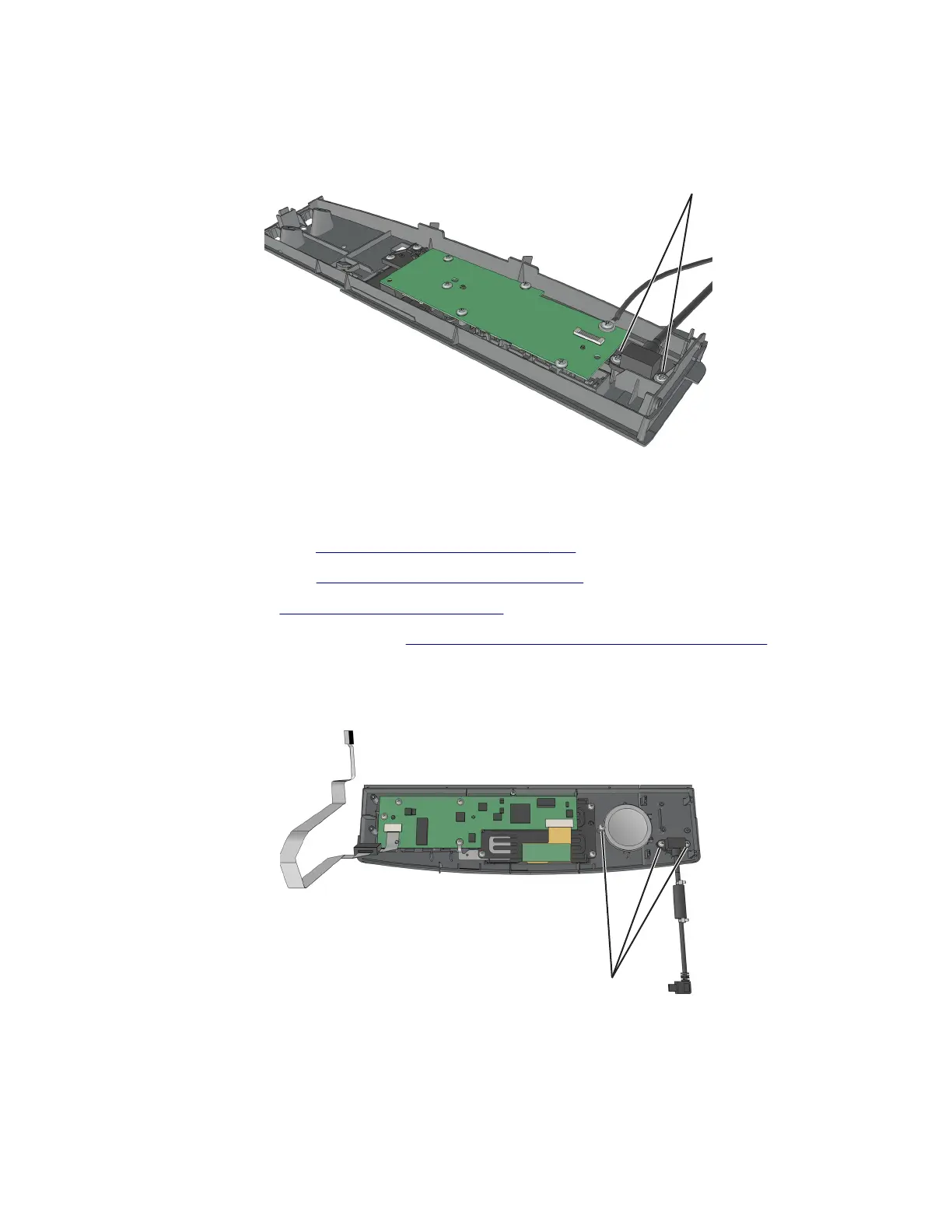

5 Remove the two screws (A), and then remove the control panel USB port.
A
Speaker and control panel USB port removal (MS610de)
1 Remove the right cover. See “Right cover removal” on page 241.
2 Remove the nameplate. See “Nameplate removals” on page 263.
3 Remove the bezel. See “Bezel removals” on page 261.
4 Remove the control panel assembly. See “Control panel assembly removals” on page 265.
5 Remove the three screws (A), and then remove the speaker and control panel USB port.
A
4514-6xx
Parts removal
275
