Index sensor removal
1 Remove the left cover. See “Left cover removal” on page 228.
2 Remove the right cover. See “Right cover removal” on page 241.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
4 Remove the power supply. See “Power supply removal” on page 289.
5 Remove the power supply shield. See “Power supply shield removal” on page 290.
6 Remove the duplex. See “Duplex removal” on page 291.

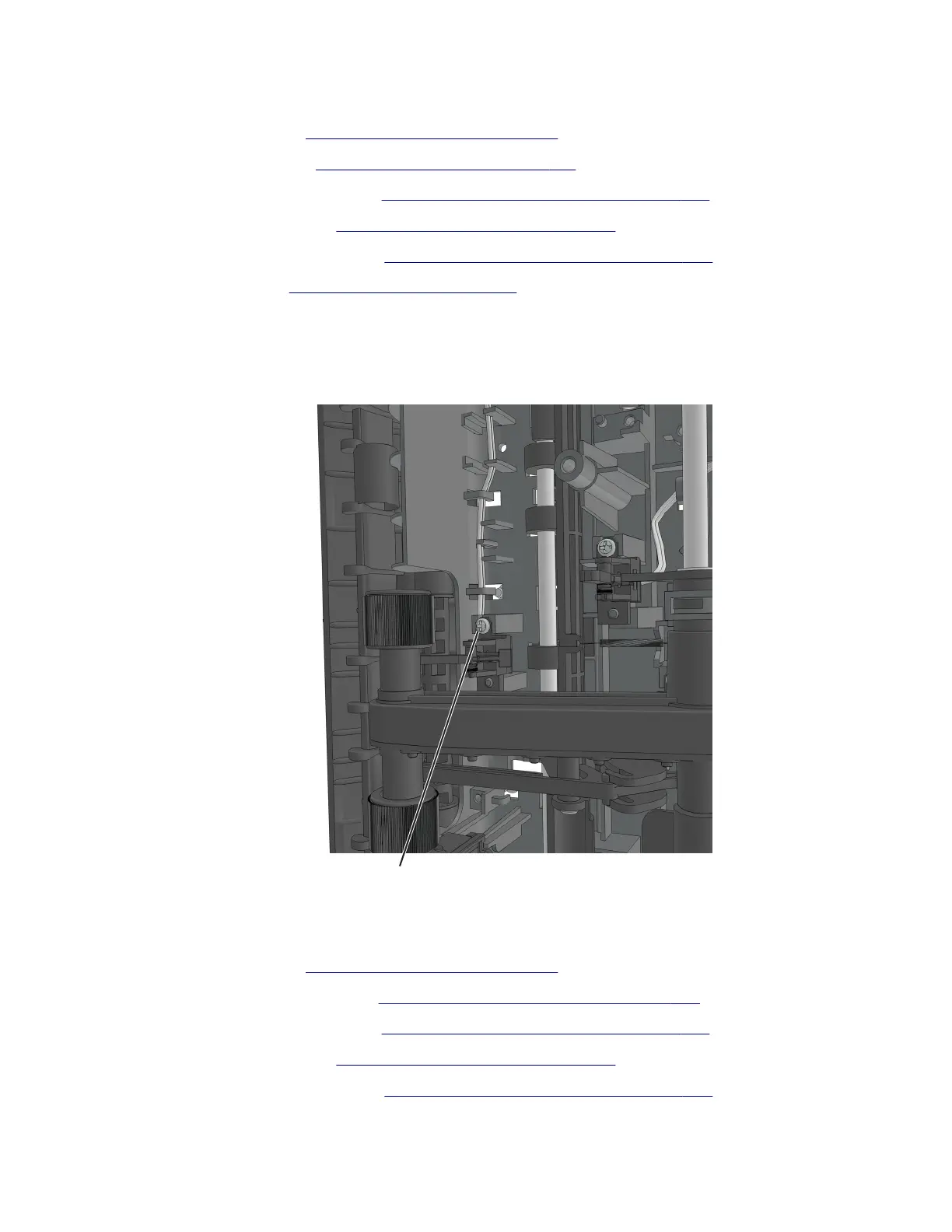

7 Disconnect the cable JINDEX1 from the system board.
8 Remove the screw (A).
9 Route o the cable, and then remove the index sensor.
A
Toner density sensor removal
1 Remove the left cover. See “Left cover removal” on page 228.
2 Remove the main drive gearbox. See “Main drive gearbox removal” on page 229.
3 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
4 Remove the power supply. See “Power supply removal” on page 289.
5 Remove the power supply shield. See “Power supply shield removal” on page 290.
4514-6xx
Parts removal
295
