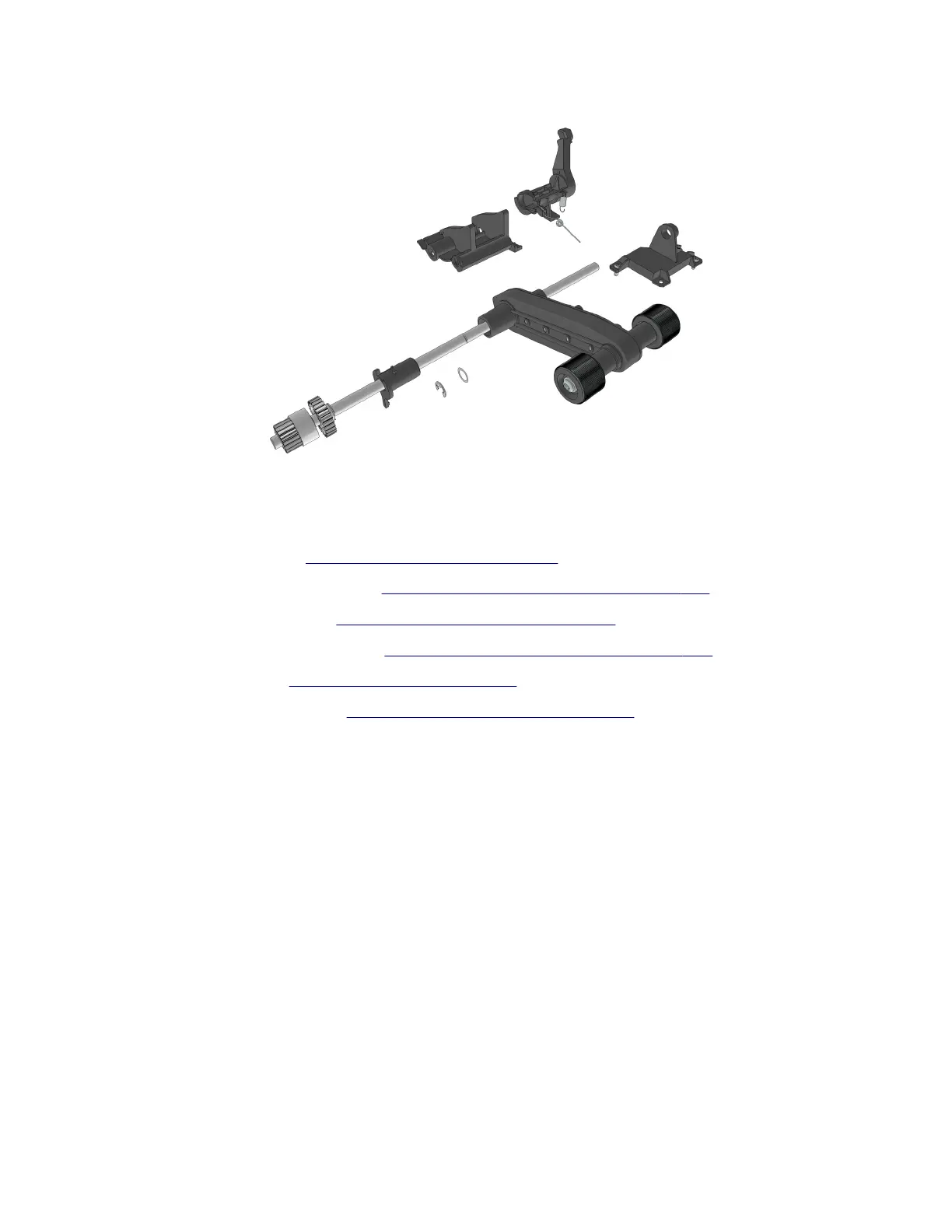

Below is the ACM assembly.
Pick/Lift motor gearbox removal
1 Remove the left cover. See “Left cover removal” on page 228.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
3 Remove the power supply. See “Power supply removal” on page 289.
4 Remove the power supply shield. See “Power supply shield removal” on page 290.
5 Remove the duplex. See “Duplex removal” on page 291.
6 Remove the ACM assembly. See “ACM assembly removal” on page 303.
7 Position the printer so that it sits on its left side.
4514-6xx
