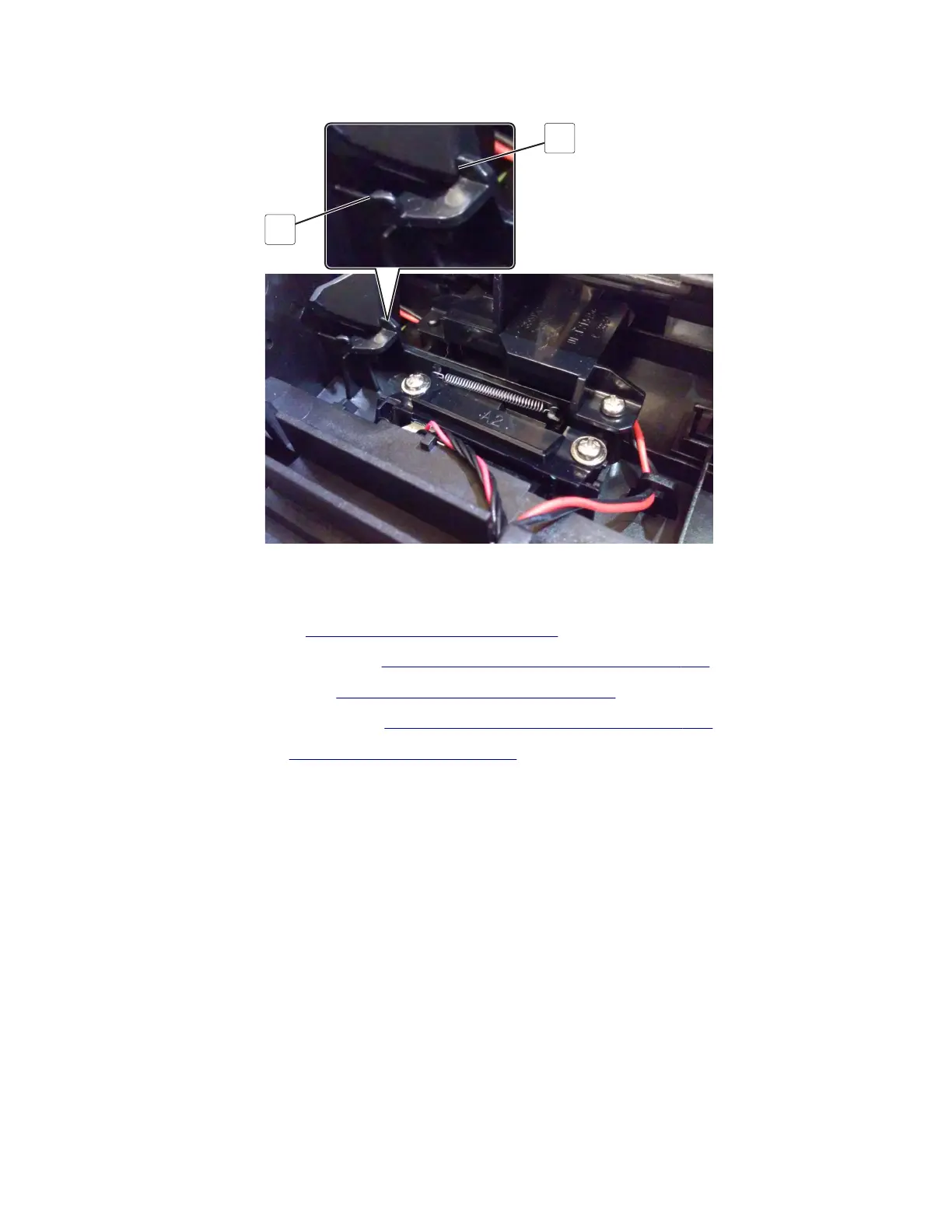

c Apply RheoGel 793 to the point of contact to the lower edge (B) where the wiper bracket glides.
B
A
Media present sensor removal
1 Remove the left cover. See “Left cover removal” on page 228.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
3 Remove the power supply. See “Power supply removal” on page 289.
4 Remove the power supply shield. See “Power supply shield removal” on page 290.
5 Remove the duplex. See “Duplex removal” on page 291.
6 Position the printer so that it sits on its left side.
4514-6xx
Parts removal
297
