Right side removals
Right cover removal
1 Open the front door.
2 Position the printer so that it sits on its left side.

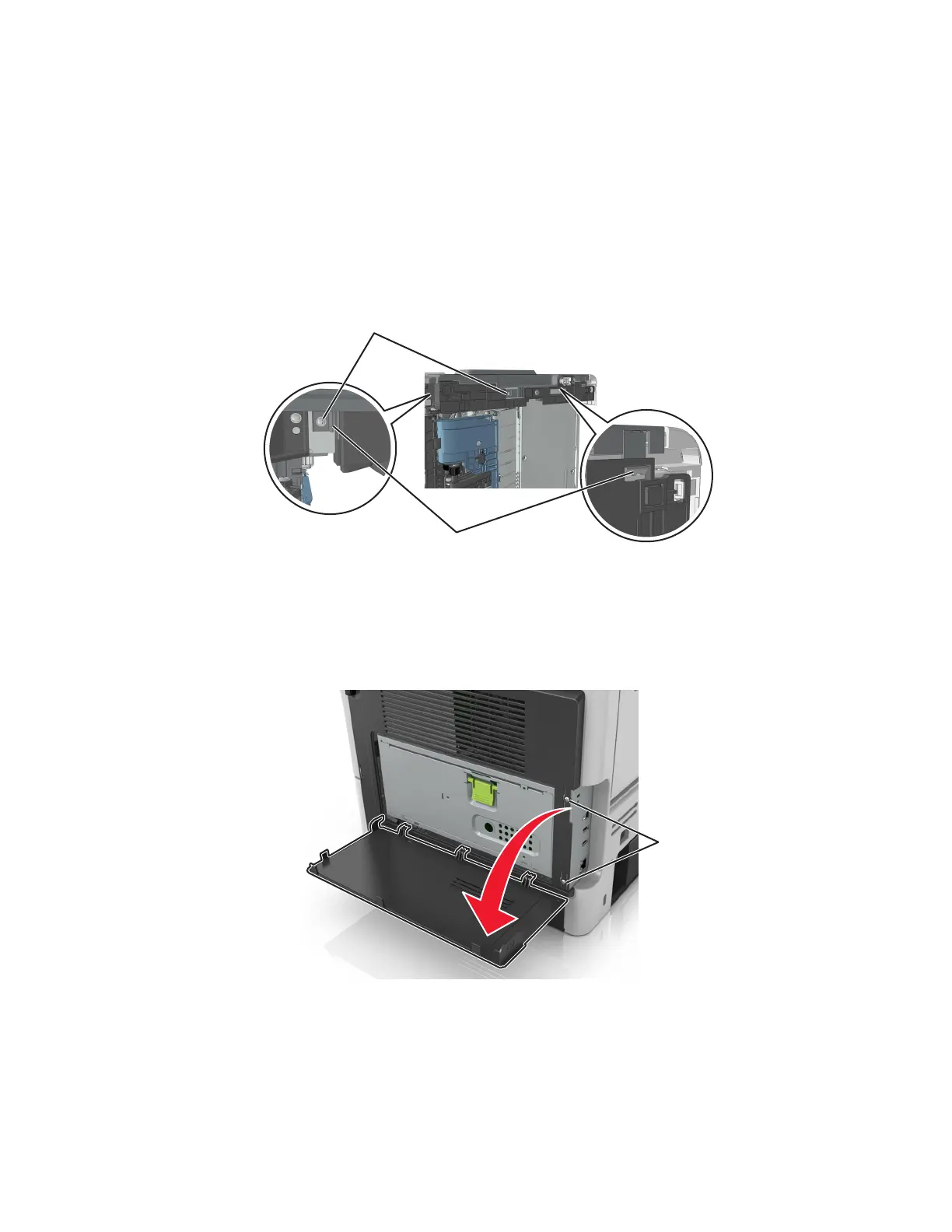

3 Remove the two screws (A) securing the right cover.
4 Release the latches (B) to remove the right cover.
B
A
Right cover removal (MS610de)
1 Open the controller board access door.
2 Remove the two screws (A).
A
3 Open the front door.
4 Position the printer so that it sits on its left side.
5 Remove the two screws (B).
