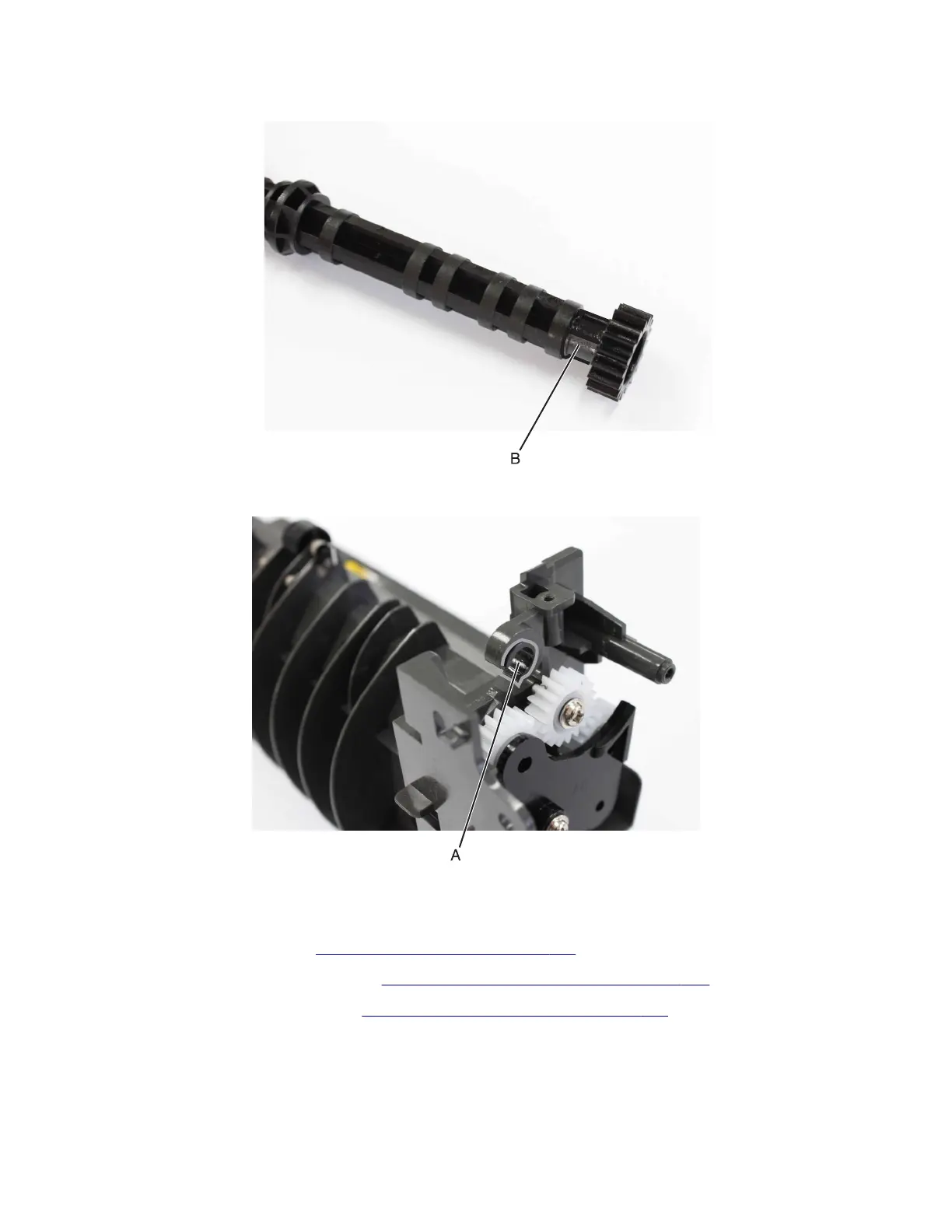

8 If necessary, remove the bushing (B) from the redrive assembly.
Installation note: Install the bushing (A) on the redrive assembly before installing the shaft.
Fuser removal
1 Remove the right cover. See “Right cover removal” on page 241.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
3 Remove the redrive assembly. See “Redrive assembly removal” on page 310.
4 Disconnect the cable JEXIT1 from the controller board.
5 Disconnect the two cables (A).
