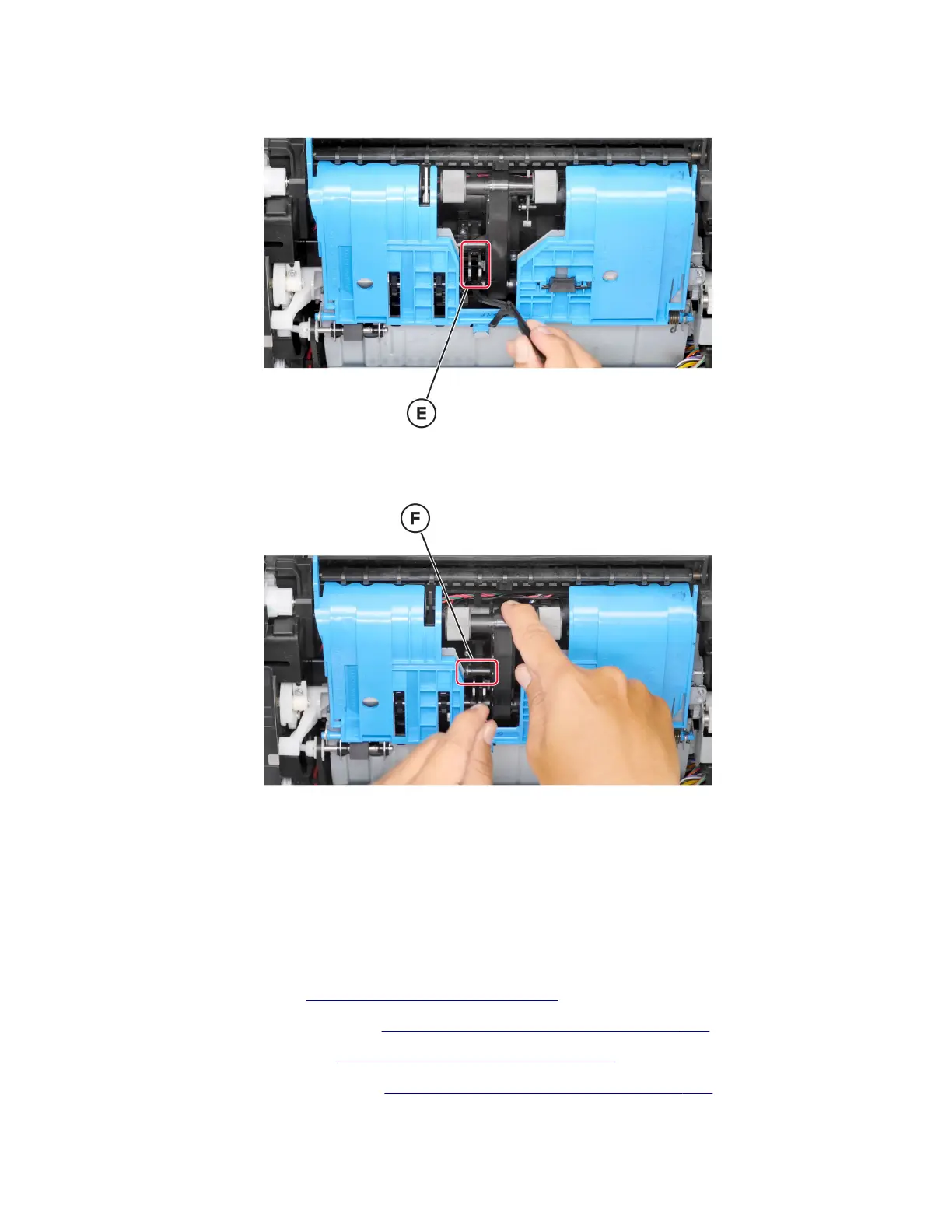

c Install the flag into the slot (E).
d Place the hook behind the pick roller assembly supporting bracket (F), and then snap it into place.
Note: To check if the sensor flag is properly installed, do the following:
1 Lift the pick roller assembly.
2 If the sensor flag goes along with the pick roller assembly when lifted, then the sensor flag is properly
installed.
ACM assembly removal
1 Remove the left cover. See “Left cover removal” on page 228.
2 Remove the rear door and cover. See “Rear door and cover removal” on page 307.
3 Remove the power supply. See “Power supply removal” on page 289.
4 Remove the power supply shield. See “Power supply shield removal” on page 290.
