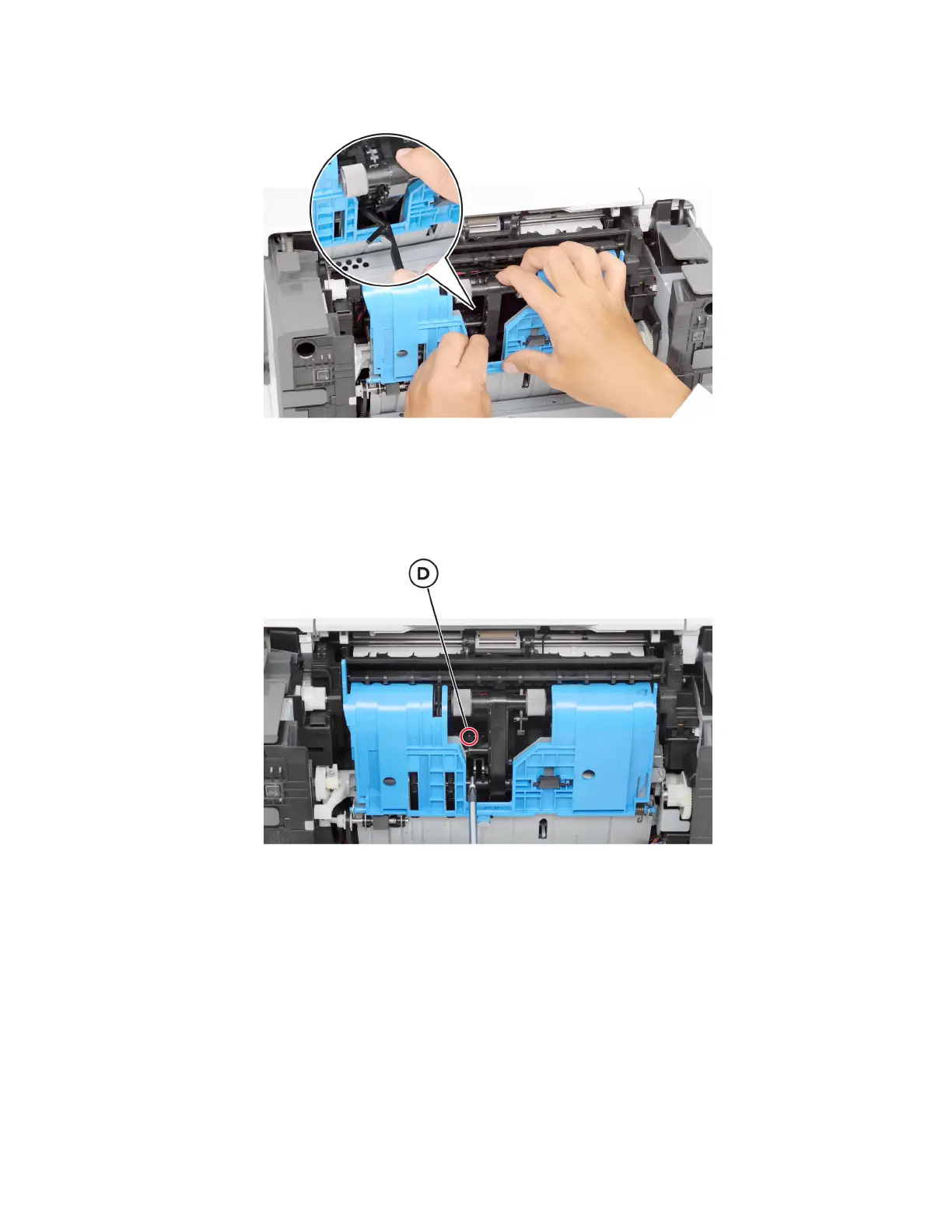

7 Lift the pick roller assembly, and then rotate the sensor flag to remove it.
Installation notes:
a Place the sensor flag bracket in position.
b Secure the sensor
flag
bracket using the screw (D).
4514-6xx
Parts removal
302
