Control panel assembly removal (MS610de)
1 Remove the right cover. See “Right cover removal” on page 241.
2 Remove the nameplate. See “Nameplate removals” on page 263.
3 Remove the bezel. See “Bezel removals” on page 261.

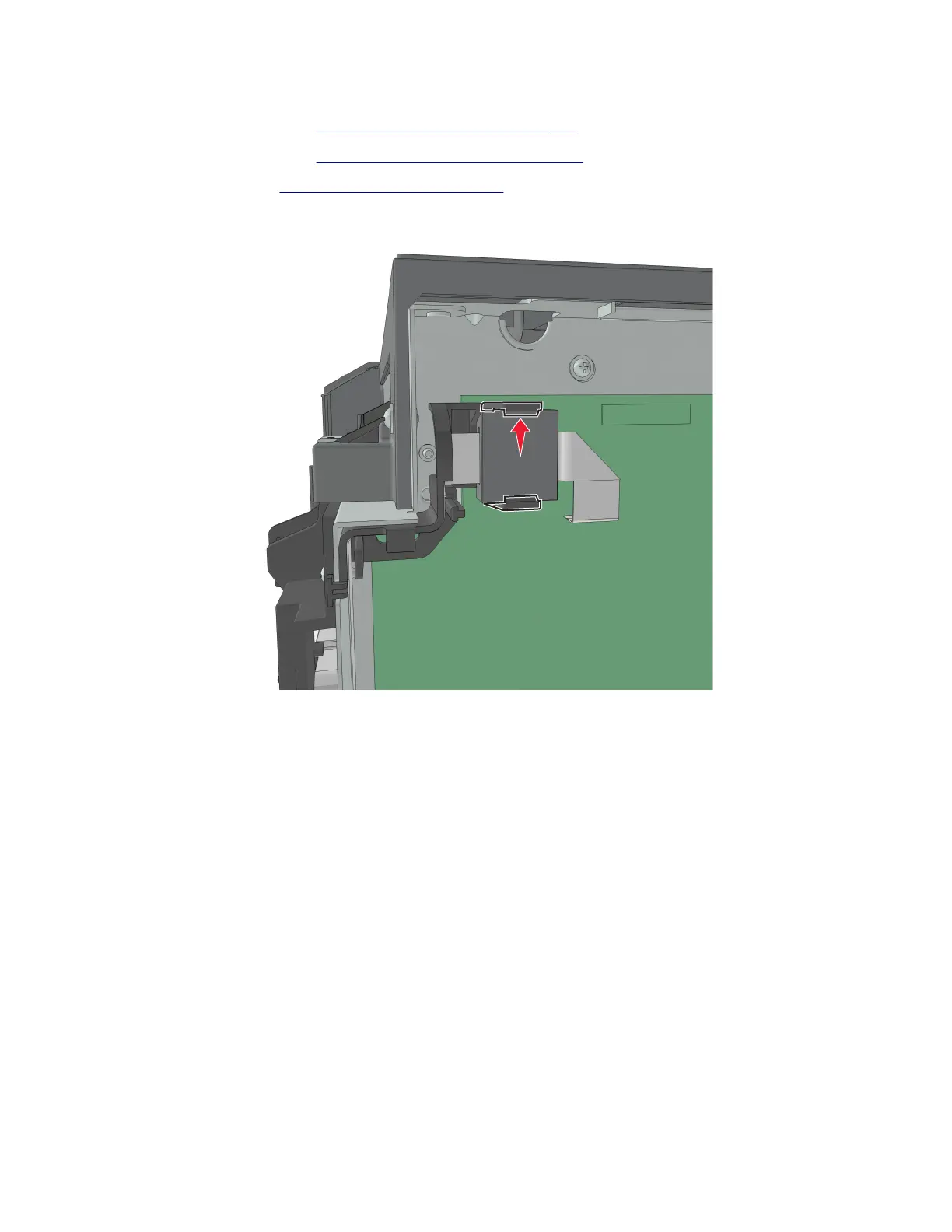

4 Remove the toroid.
4514-6xx
Parts removal
268
