Lexmark M3150

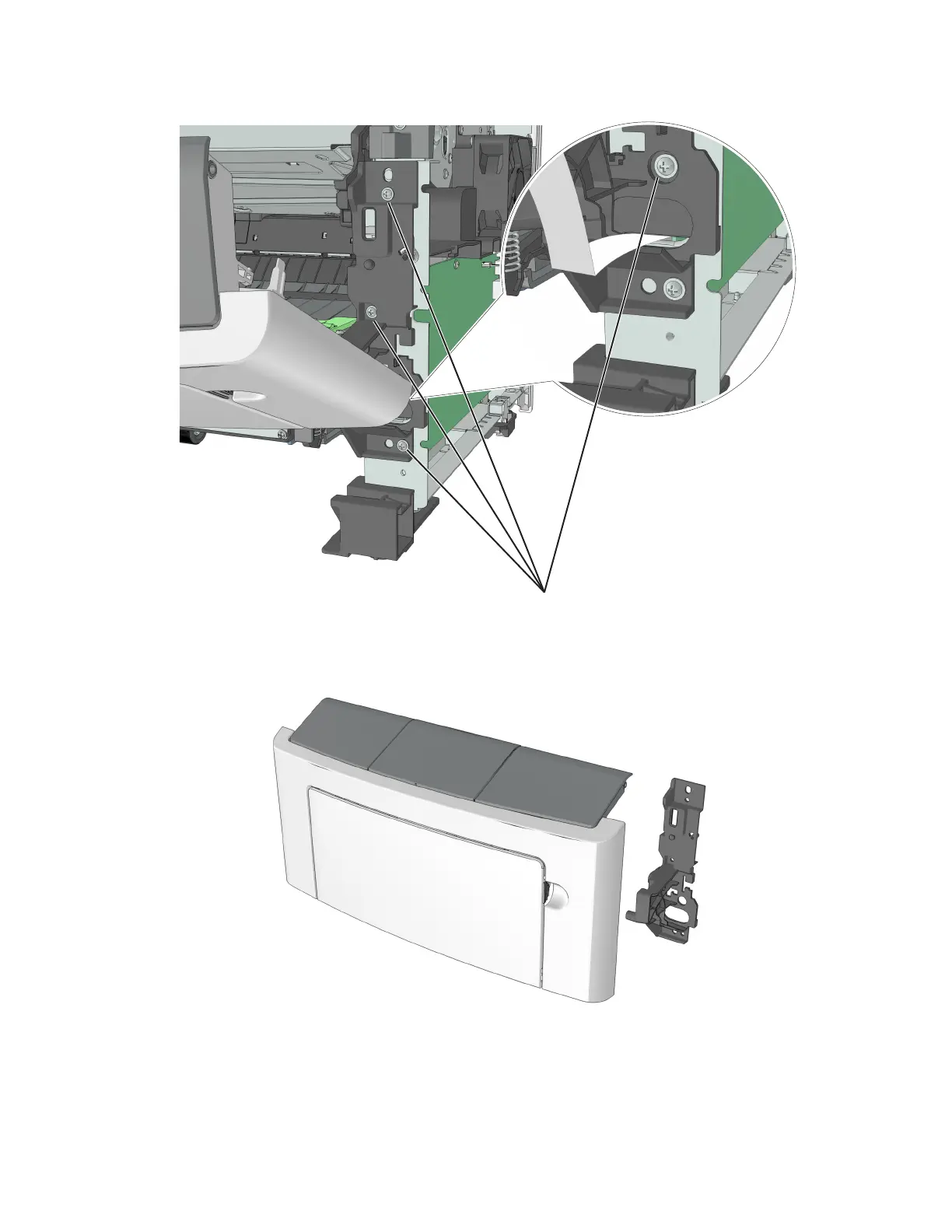

5 Remove the four screws (B).
B
6 Remove the right front mount, and then remove front door.
Below are the front door and the right front mount.
Installation notes:
a Mount the left side of the front door to the printer.
b Attach the right front mount to the front door.
4514-6xx
Parts removal
283
