4 Remove the power supply. See “Power supply removal” on page 289.
5 Remove the power supply shield. See “Power supply shield removal” on page 290.
6 Remove the duplex. See “Duplex removal” on page 291.
7 Disconnect the cable JDUPPI1 from the controller board.

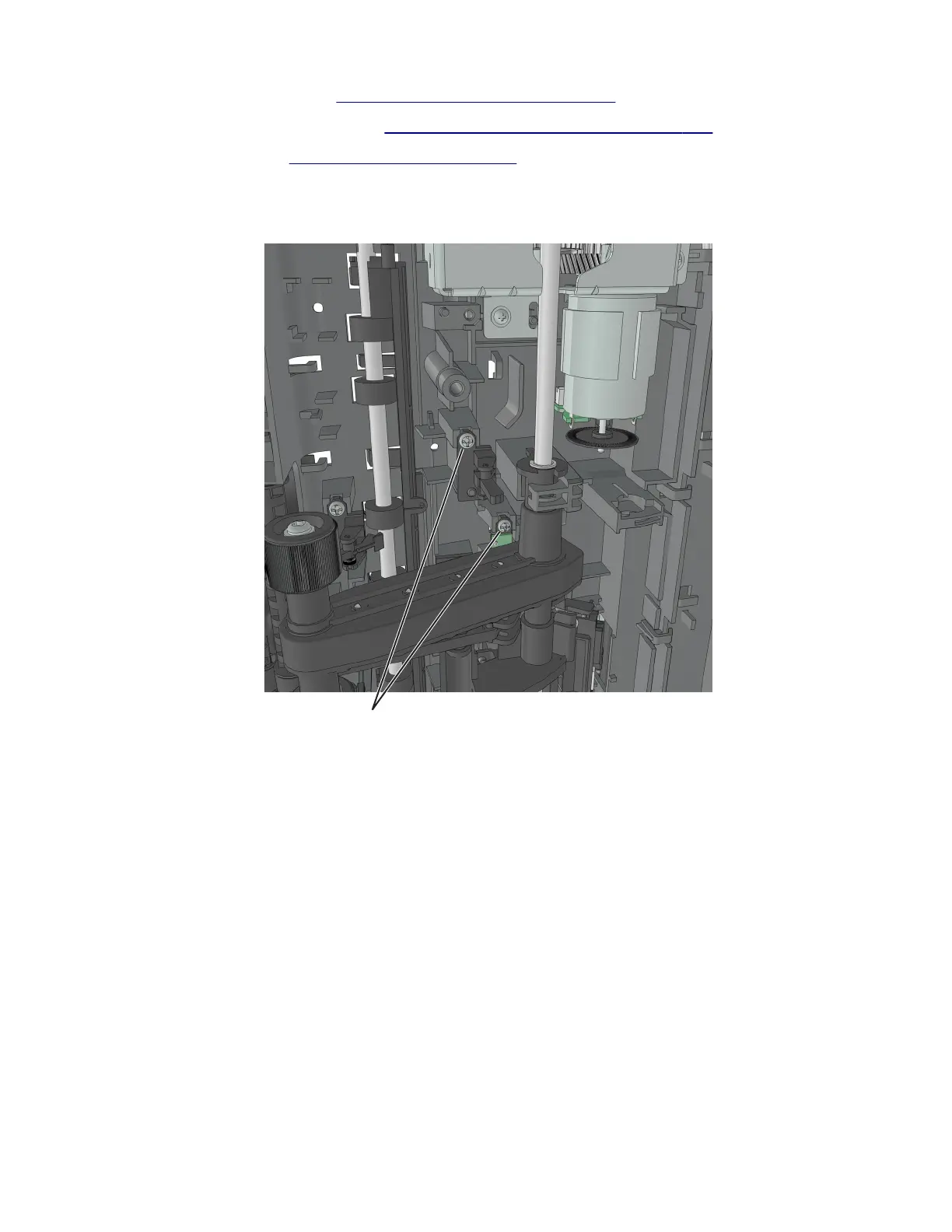

8 Remove the two screws (A), and cut the cable near the frame to detach the sensors.
A
9 Remove the other half of the cable from the printer.
