2 If the new redrive assembly does not have a solenoid installed, then do the following:

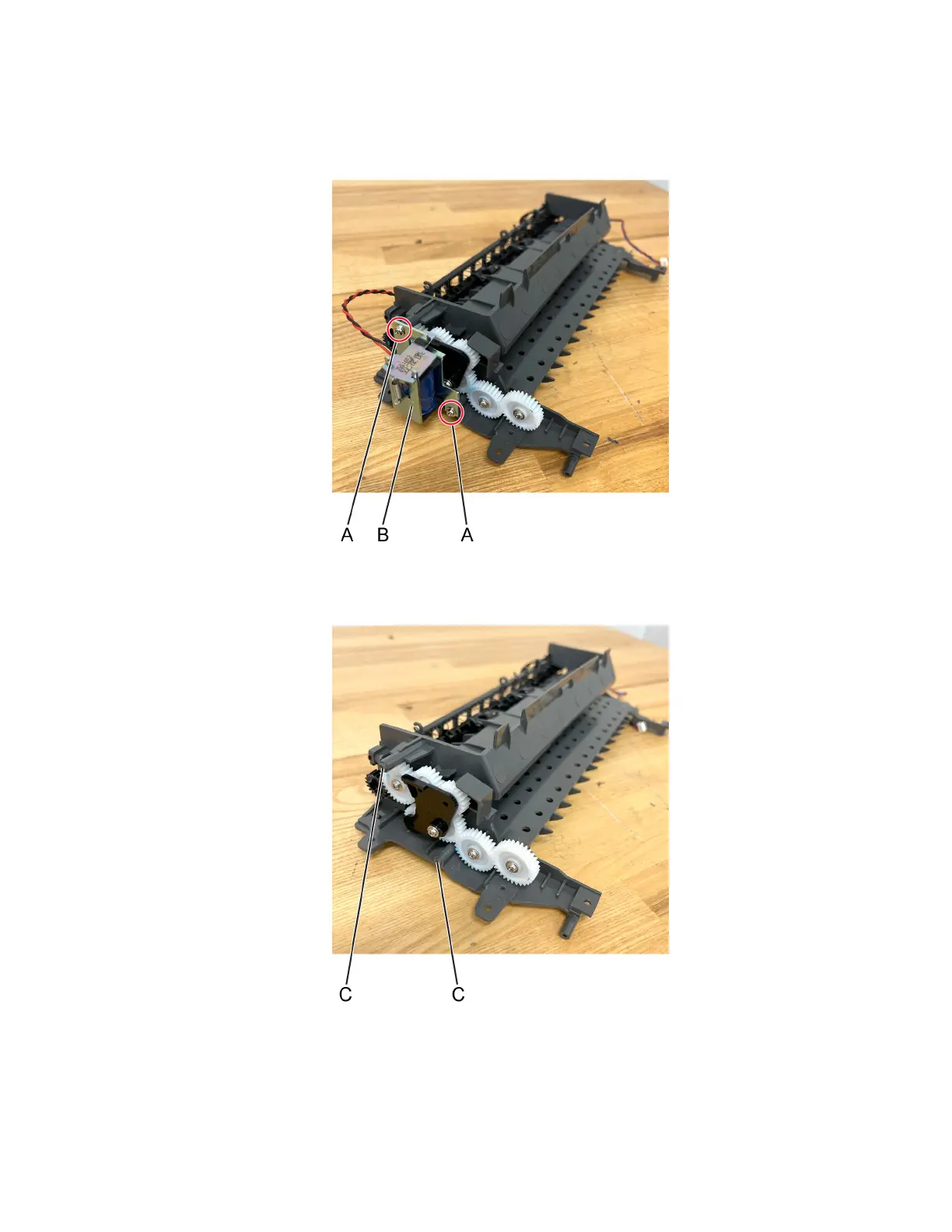

a Remove the two screws (A), and then remove the solenoid (B) from the currently installed redrive
assembly.
b Secure the solenoid to the screw holes (C) of the new redrive assembly.
3 After installing the new redrive assembly, enter the Diagnostics Menu, and then perform the duplex print
test.
Note: Make sure to print at least one duplex job to verify proper installation.
4514-6xx
Parts removal
312
