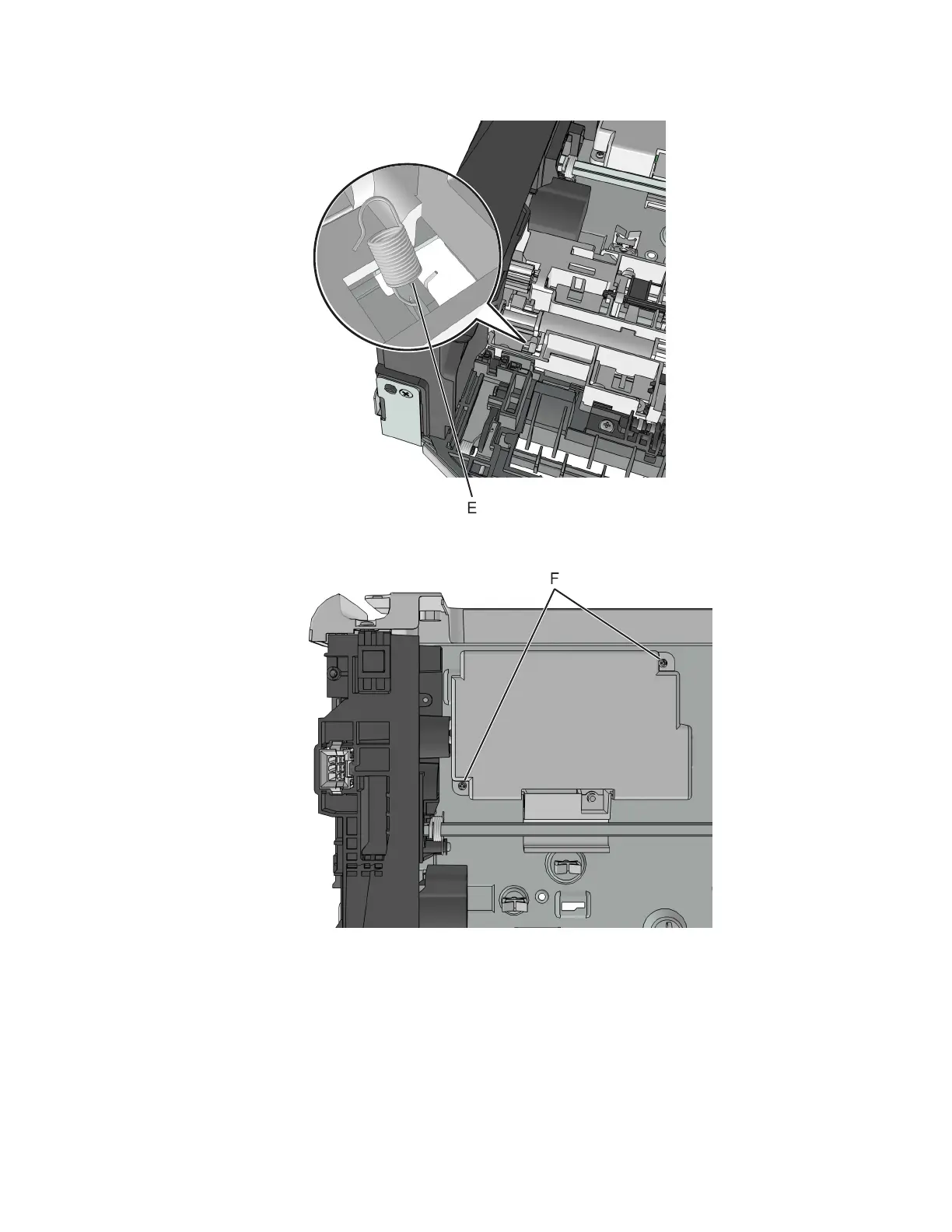

5 Disconnect the spring (E).
6 Remove the two screws (F), and then remove the controller card cover.
7 Disconnect the cable J11 from the controller card.
8 Route the cable o the option, and then remove the ACM assembly.
4514-6xx
Parts removal
324
