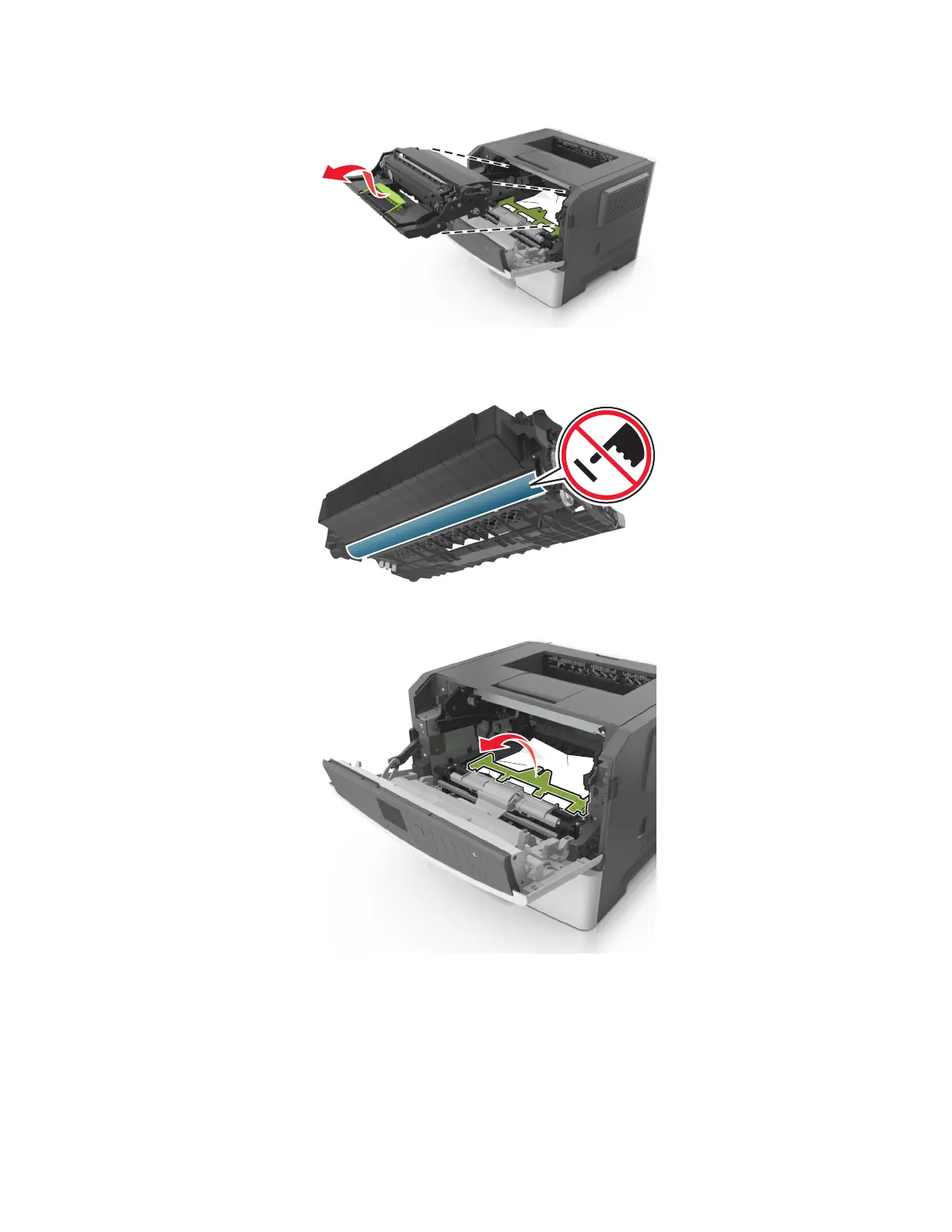

3 Lift the green handle, and then pull the imaging unit out of the printer.
Warning—Potential Damage: Do not touch the shiny blue photoconductor drum under the imaging unit.
Doing so may aect the quality of future print jobs.
4 Lift the green flap in front of the printer.
5 Place the imaging unit aside on a flat, smooth surface.
Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes.
Extended exposure to light may cause print quality problems.
6 Firmly grasp the jammed paper on each side, and then gently pull it out.
Note: Make sure all paper fragments are removed.
4514-6xx
Diagnostics and troubleshooting
82
