Lexmark MS823 Service Manual

Toner cartridge shutter actuator removal
1 Open the front door, and then remove the toner cartridge and imaging unit.

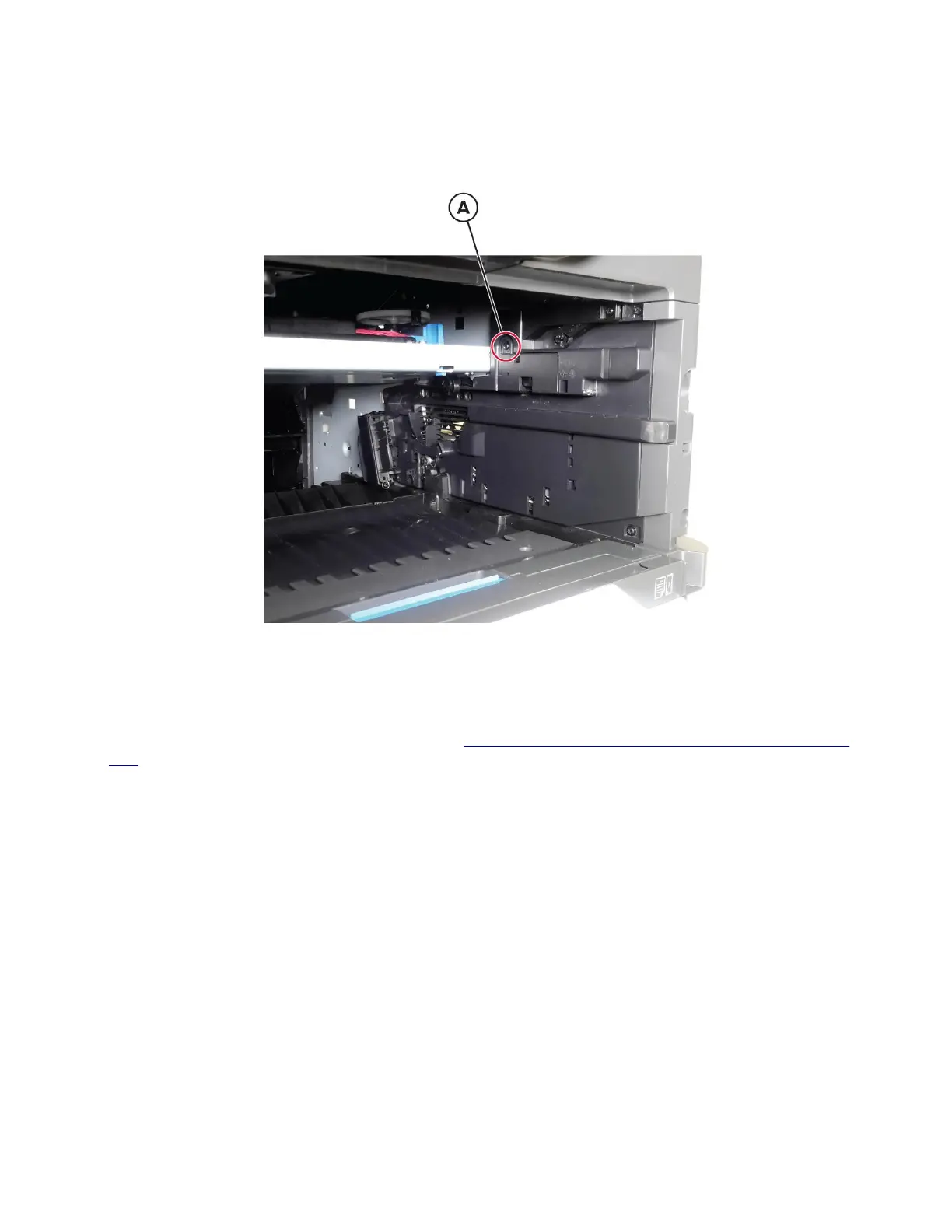

2 Remove the screw (A), and then remove the actuator.
Sensor (toner cartridge shutter) removal
1 Open the front door, and then remove the toner cartridge and imaging unit.
2 Remove the toner cartridge shutter actuator. See “Toner cartridge shutter actuator removal” on page
430.
4064
Parts removal
430

Lexmark MS823 Specifications

General

Print Technology	Monochrome Laser
Print Speed	Up to 65 ppm
Print Resolution	1200 x 1200 dpi
Monthly Duty Cycle	Up to 300, 000 pages
Recommended Monthly Page Volume	5, 000 - 75, 000 pages
Processor Speed	1 GHz
Standard Memory	512 MB
Connectivity	USB, Ethernet
Standard Input Capacity	650 pages
Maximum Paper Input	4, 400 sheets
Media Types Supported	Plain paper, Card stock, Envelopes, Labels, Transparencies
Operating System Compatibility	Windows, Linux
Duplex Printing	Automatic
