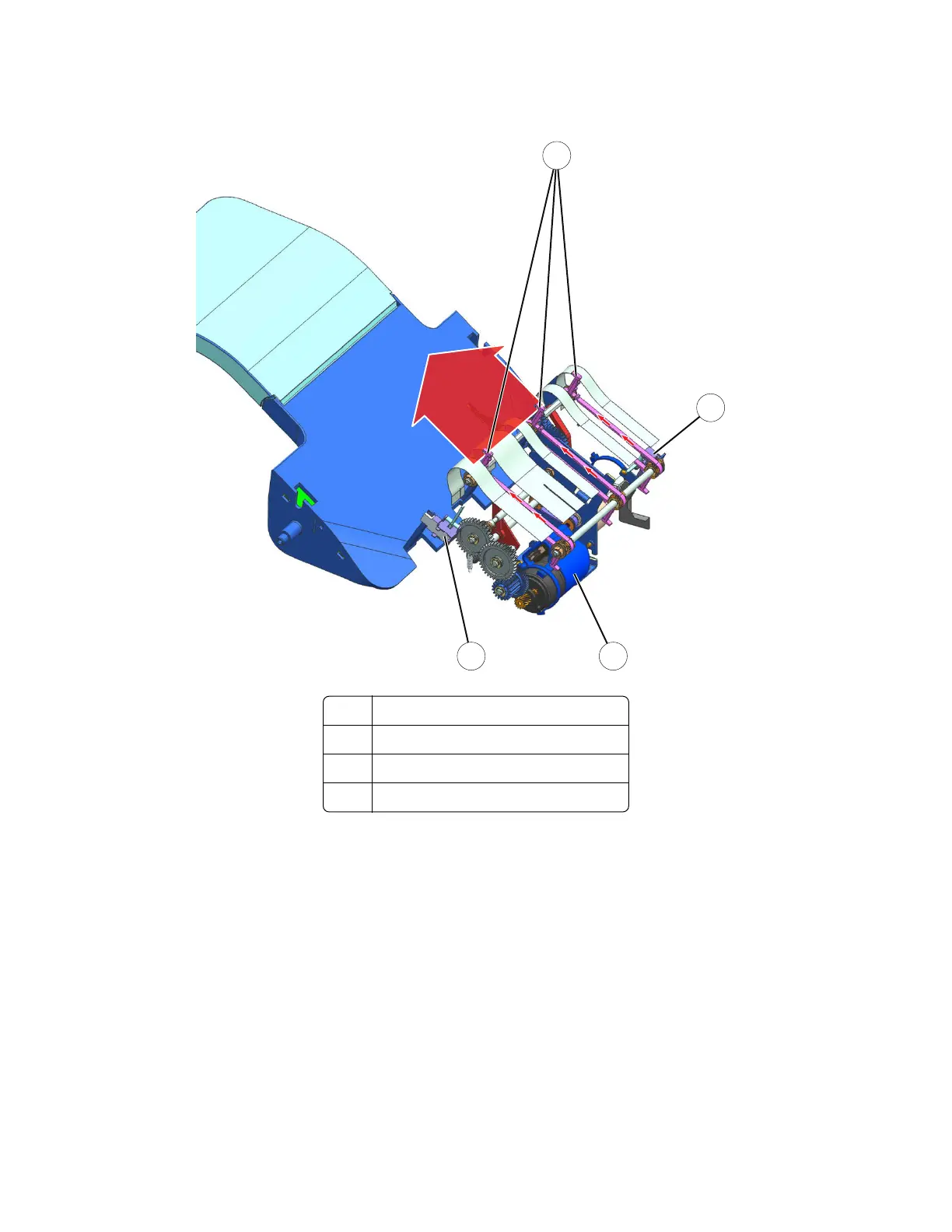

SHPF ejector drive
4
3
2
1
1 Ejector paddles
2 Sensor (staple throat paper present)
3 Sensor (ejector)
4 Motor (ejector)
After the paper stack is stapled, the ejector paddles connected to a belt push the stack toward the bin.
The motor (ejector) drives the ejector belt. The ejector belt is detected at its home position by the sensor
(ejector).
