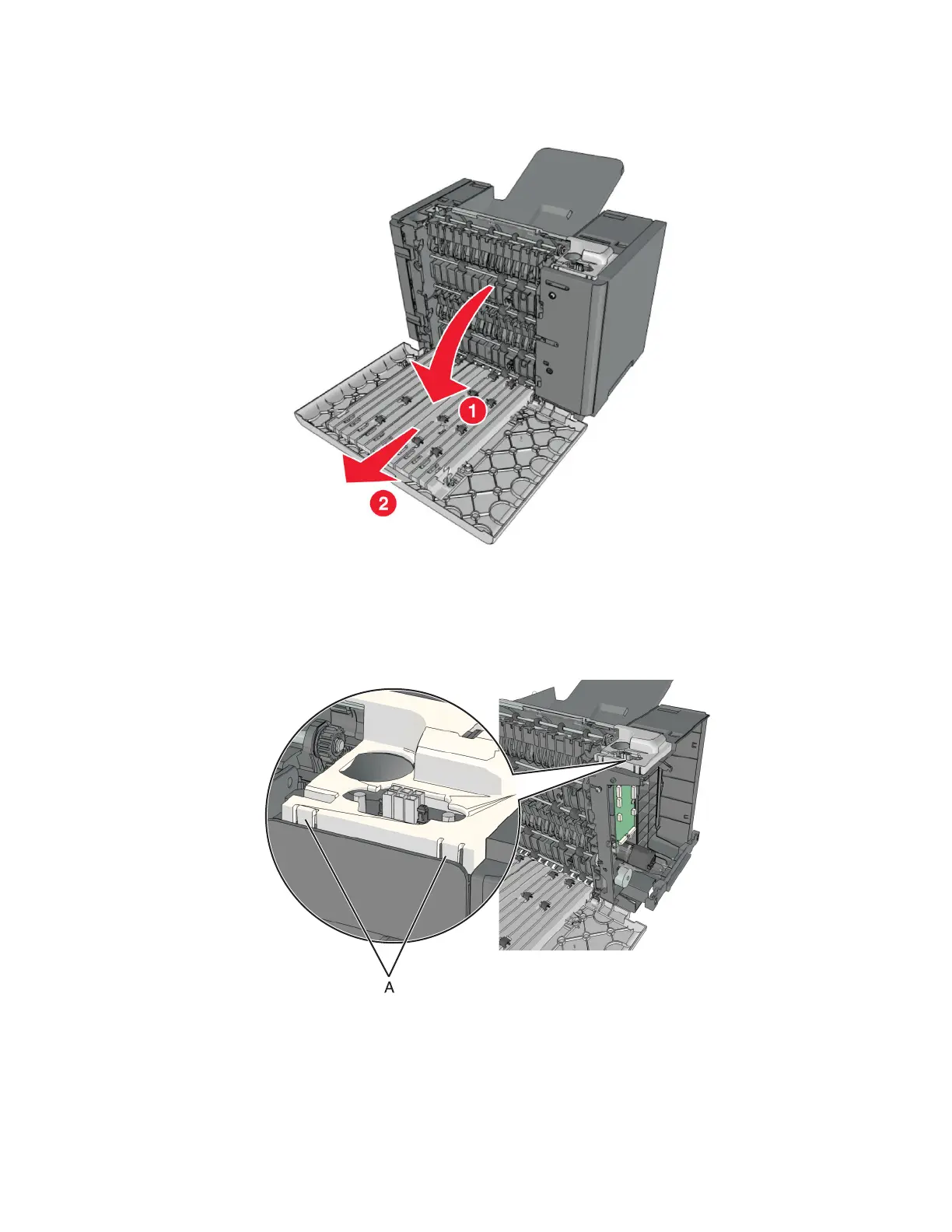

2 Position the door as shown, and then remove it.
HCOE sensor cover removal
1 Press the latches (A) to release.
2 Remove the sensor cover.
4064
Parts removal
547
